PCE-430 Class 1 Sound Level Meter
Professionals frequently use the PCE-430 decibel meter to verify adherence to environmental noise standards and occupational noise acceptable exposure levels. It is also perfect for noise monitoring programs at airports and air force bases.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
AED 8,596 (excl.VAT)
11People watching this product now!
PCE-430 Class 1 Sound Level Meter
Environmental parameters including temperature, humidity, wind speed, ambient temperature, light level, noise level, etc. may all be measured with an environmental meter. This equipment serves as a crucial tool in a variety of industries, including agriculture, construction, oil and gas, and environmental protection.
product overview

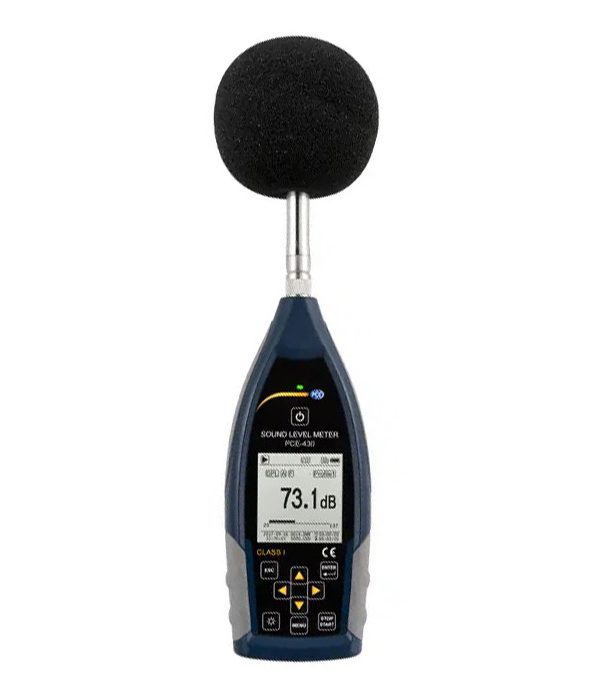

The PCE-430 is a type 1 sound level meter that complies with ANSI S1.43-1997, IEC 60651:1979, IEC 60804:2000, and IEC 61672-1:2013 standards. The sound pressure level (SPL) is shown numerically and graphically in real time on the big, easy-to-read backlit LCD screen of this portable, high-accuracy sound level meter.
Octave band filtering allows for the detection of even the smallest frequency differences.
The portable meter can also record readings at intervals that can range from 1 second to 24 hours, and it stores the recorded measurement data on a micro SD card. You may take the SD card out of the meter and put it in a PC’s SD card reader.
Alternately, a USB connection may be used to link the decibel meter directly to a PC. The PC-compatible software offered makes it possible to analyze data quickly and simply.
This instrument measures between 22 and 136 dB(A) at a frequency between 3 and 20 kHz. The meter has fast, slow, and impulsive time weightings in addition to A, B, C, and Z frequency weightings.
To get information about the PCE-430 price contact our experts.As a well-known distributor, MMElectronic is pleased to meet all of your requirements for sound level merters by providing the greatest international brands at cost-effective pricing.
PCE-430 Octave Environmental Meter features
- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- A, B, C & Z Frequency weighting
- Fast, Slow, Pulse and Peak time weighting
- Statistics function
- Display of the sound curve as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable
PCE-430 Octave Environmental Meter specifications
| Measuring range | 22 … 136 db(A) |
| Accuracy | Class 1 |
| Frequency range | 3 Hz … 20 kHz |
| Standards | GB/T 3785.1-2010 |
| GB/T 3785.2-2010 | |
| IEC 60651:1979 | |
| IEC 60804:2000 | |
| IEC 61672-1:2013 | |
| ANSI S1.4-1983 | |
| ANSI S1.43-1997 | |
| Frequency analysis | 1/1 Octave band filter: 8 Hz … 16 kHz |
| 1/3 Octave band filter: 6.3 Hz … 20 kHz | |
| Microphone | 1/2″ Microphone Class: 1 |
| Sensitivity: 40 mV/PA | |
| Frequency range: 3 Hz … 20 kHz | |
| Connection: TNC | |
| Power supply: ICCP Standard | |
| Data-logging interval | 1 s … 24 h (adjustable) |
| Measuring functions | LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
| X = Frequency weighting: A, B, C, Z | |
| Y = Time weighting: F, S, I | |
| N = Statistics in %: 1 … 99 % | |
| Frequency weightings | A, B, C, Z |
| Time weightings | Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
| Inherent noise | Microphone: 19 db(A), 25 db(C), 31 db(Z) |
| Electronics: 13 db(A), 17 db(C), 24 db(Z) | |
| AD converter | 24 Bit |
| AD Sample rate | Standard: 48 kHz |
| LN Mode: 20 ms | |
| Measuring display | Numerical |
| Bar graph | |
| Graphical | |
| Display | 160 x 160 pixel LCD with backlight |
| Memory | 4 GB Micro SD card |
| Interface | USB (Memory readable via software or directly as mass storage) |
| RS-232 | |
| Voltage output | AC 5V RMS |
| DC 10 mV/db | |
| Alarm | Adjustable |
| Power supply | 4 x 1.5 V AA Batteries |
| 12 V / 1 A Power plug | |
| 5 V / 1 A USB | |
| Battery life | Min. 10 h continuous use |
| Dimensions | 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42″ (W x H x D) |
| Weight | Approx. 620 g / 1.4 lbs incl. batteries |
Brand
Pce
PCE
PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.
Datasheet
Specifications
| specifications | ||||||
|---|---|---|---|---|---|---|
| ||||||
| Sound Level Meters | ||||||
| ||||||
| Mechanical and General Specifications | ||||||
| ||||||
