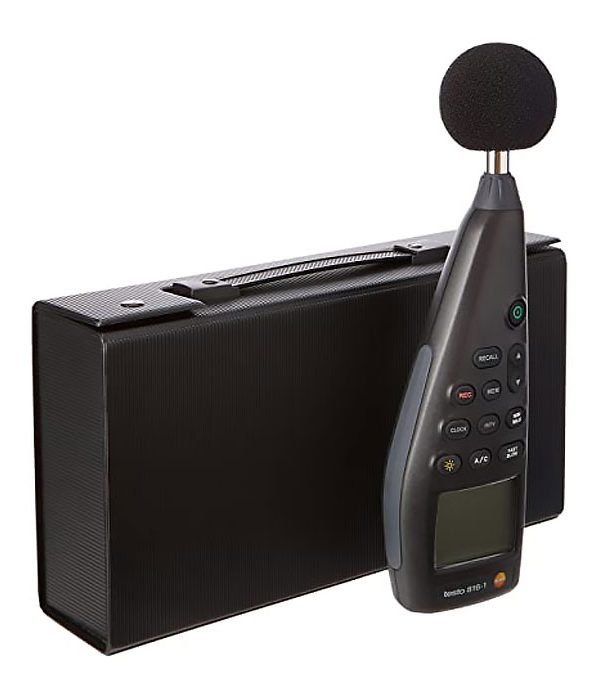

Testo 816-1 – Sound Level Meter

The Testo 816-1 premium sound level meter fully meets the requirements of performing noise measurements that are not compliant with IEC 61672-1 Class 2 and ANSI S1.4 Type 2. Suitable for performing noise measurements. as well as noise in the workplace such as in public, industrial, and manufacturing places.

The Testo 816-1 includes a built-in data logger that can store up to 31,000 readings and specialized PC software in addition to all the functions found in its smaller brother, the Testo 816.

A practical all-in-one carrier bag, as well as a plethora of technical features and advantages, are included with the Testo 816-1 to let you conduct expert noise level measurements as part of health and safety inspections and emission controls.

Benefits include the ability to change the measurement rate from slow (one measurement per second) to fast (one measurement every 125 milliseconds) depending on the type of measurement, and being able to choose between two types of frequency measurements: characteristic curve A corresponds to how the human ear perceives sound pressure while characteristic curve C measures the low-frequency percentage of the noise.

In addition, you can also use the optional sound calibrator and the screwdriver included in the scope of delivery to recalibrate your Testo 816-1 sound level meter on site wherever you are.

The sound level meter also has a backlit display for use in all lighting conditions.

But that is by no means all: the Testo 816-1 sound level meter has an internal data logger that can save up to 31 000 measurements and comes with a USB cable that allows you to hook your meter up to a PC and transfer the data directly, and dedicated PC software designed to help you manage and analyze the data you have collected.

Testo 816-1 introduction

Testo 816-1 – Sound level meter key features

The Testo 816-1 sound level meter is the professional model in the Testo sound level meter series. It is designed specifically for measuring noise levels in the workplace, in public places, and in industry and production. Includes data storage and analysis.

Testo 8161 Sound Level MeterDataLogger Specifications :

Sound Pressure :

• Measuring range: 30 to 130 dB
• Frequency range: 20 Hz to 8 kHz
• Accuracy: ±1.4 dB (under reference conditions: 94 dB, 1 kHz)
• Resolution: 0.1 dB
• Measuring rate: 0.5 s

General technical data :

• Weight: 390 g
• Dimensions : 272 x 83 x 42 mm
• Operating temperature : 0 to +40 °C
• Frequency weighting: A / C
• Microphone: 0.5 “
