LCR Meter

what is an lcr meter?

For measuring the electrical characteristics of passive electronic components like capacitors, inductors, and resistors, LCR meters are useful instruments. Engineers, technicians, and hobbyists may swiftly and correctly test component values and characteristics with the help of these meters, which is crucial for assuring the quality and dependability of electrical circuits.

The three variables that these meters measure are Inductance, Capacitance, and Resistance, or LCR. LCR tester may analyze a component’s electrical properties by applying a variable frequency signal to it and measuring the resultant current and voltage across it.

Understanding LCR Meters

What is the difference between a multimeter and a LCR meter?

LCR devices have more testing options than multimeters, which can simply measure resistance. They are capable of measuring capacitance in the picofarad to microfarad range, inductance in the nano henry to millihenry range, and resistance in the milliohm to megaohm range. In addition to other things, digital lcr meter may give useful information regarding the equivalent series resistance (ESR) and dielectric loss of capacitors.

lcr meter uses

LCR testers are used in labs and other testing environments. some lcr testers are portable lcr meters, while others are standalone machines. Compact and portable, handheld LCR meters are great for field testing and troubleshooting. They normally run on batteries and feature a tiny display screen to show the measured numbers.

benchtop lcr meter

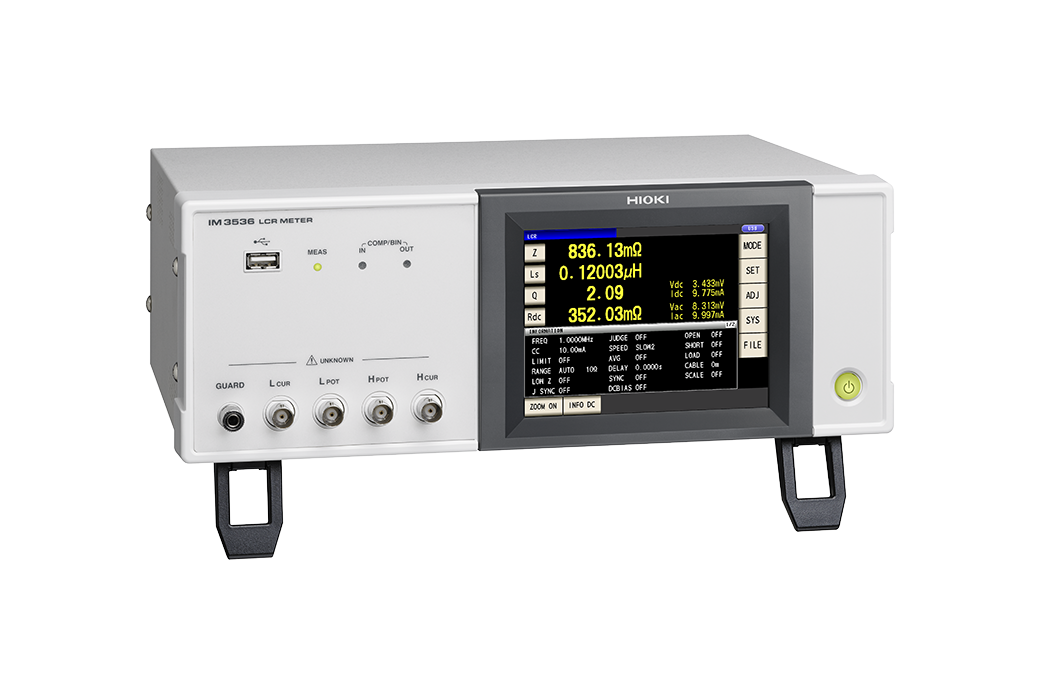

Benchtop LCR tester, on the other hand, is bigger and more accurate. They offer a greater variety of test frequencies, more accuracy, and more sophisticated features including data logging abilities, allowing the user to save and analyze the test results. In contexts requiring great precision, such as those in research, development, and manufacturing, benchtop LCR  are frequently employed.

LCR testers can also be purchased with a variety of connection interfaces, including USB, RS-232, and GPIB, enabling computer control. This feature makes automation easier and makes data administration simpler.

Why use an LCR tester?

LCR testers are useful tools for measuring and characterizing passive electrical components, to sum up. The numerous LCR device models offer a variety of features and capabilities to satisfy varied testing needs. For every engineer or technician working in the electronics sector, LCR testers are an indispensable instrument due to their excellent accuracy and a broad variety of testing capabilities.

products

EXTECH LCR200, HIOKI IM3536, EXTECH LCR200, GW Instek LCR-916.

more information

for more information about lcr testers you can check Wikipedia. MME offers a wide selection of LCR meters renowned for their reliability, accuracy, and user-friendly interface. Whether you are a beginner or a seasoned professional, MME has options to suit your specific needs.
