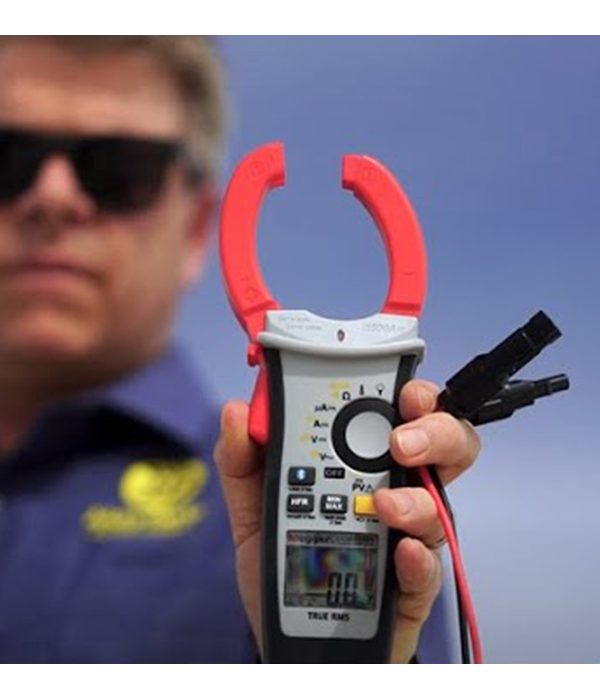

Megger DCM1500S– Ground Leakage Clamp Meter

The Megger DCM1500S Solar Clamp Meter is an AC/DC clamp multimeter capable of measuring voltages up to 2000V DC/1500V AC (true-RMS) and currents up to 1500A AC/DC (true-RMS AC). ). It is adequate for installing, maintaining, monitoring, and testing photovoltaic systems and AC/DC electrical equipment. The Megger DCM 1500S solar clamp meter is compliant with IEC 61010-1 and IEC/EN61010-2-033 CAT IV 600V and CAT III 1000V safety standards.

The Megger DCM1500S solar clamp meter also measures resistance, diodes, capacitance, frequency, inrush current, and °C/°F temperature. It changes range automatically and features a zero DC amplifier, as well as a non-contact voltage seek mode and a high-frequency rejection filter. In addition, the Megger DCM-1500S solar clamp meter includes an automatic flashlight built into the jaw to help take measurements in poorly lit areas.

Introduction to Megger DCM1500S

Megger Multimeter- DCM 1500S Features

• 2000 V DC
•  TRMS 1500 V AC
•  1500 A AC/DC
•  Smart Hold
•  Auto-ranging
•  MIN/MAX Hold
• Inrush Current
•  Megger Link app compatible
•  CAT IV 600 V / CAT III 1000 V
•  Data logger
•  PV test leads

Megger DCM 1500S– GROUND LEAKAGE CLAMP METER specifications:

• AC/DC clamp meter
• Measure DC voltage up to 2000V
• Measure AC voltage up to 1500V AC
• Measure AC/DC current up to 1500A
• True-RMS AC current and voltage measurement
• Good  for installing, maintaining, monitoring, and testing photovoltaic systems, and AC/DC electrical equipment
• Safety rated to IEC 61010-1 and IEC/EN61010-2-033 CAT IV 600V and CAT III 1000V
• Resistance
• Diode
• Capacitance
• Frequency
• Inrush current
• °C/°F temperature
• Auto-ranging
• DC amp zeroing
• Non-contact Volt Seek mode
• High-frequency rejection filter
• Automatic torch built into the jaw
• Large, clear, backlit, 6000-count display
• Smart Hold function
• MIN/ MAX function
• Data Logging function
• Manual Save mode
• Auto Power Off function
• Bluetooth connectivity
• Monitor data remotely using a smartphone/ tablet with the Megger Link App installed
• Use the Megger Link App to view a live trend graph, as well as log and sample data
• Ergonomic and easy-to-use AC/DC clamp meter with an eclectic selection of measurement functions
