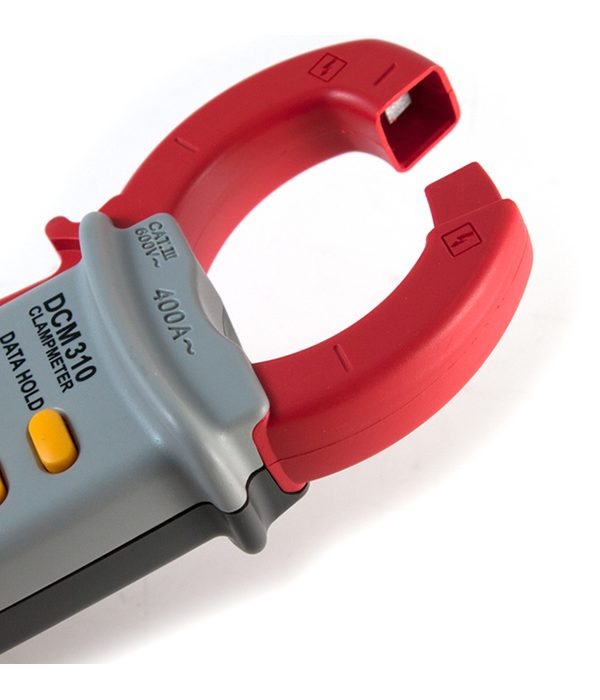

Megger DCM310-Digital Clamp Meter

The Megger DCM310 is an ideal clamp meter for use during the installation, maintenance, and checking of electrical systems and equipment. The Megger DCM 320 clamp meter will measure AC current (50 – 60 Hz) up to 400 A, with a Data-hold feature to freeze the displayed value for use in confined situations where the display may be difficult to read. This Megger current clamp meter has a max-hold button which is used to automatically store and display the maximum amps value flowing in the cable measured over a period of time.

The Megger DCM310 clamp meter is safety rated to IEC 61010 CAT III 600 V, so offering high levels of protection to the operator. A carrying case is included, and even without the case, this current clamp meter is rated to withstand a 1.2 m drop onto a hard surface without damage.

The compact clamp jaw enables cables to be measured as large as 27 mm in diameter, so covering the majority of applications within the electrical system installation industry. Ideal for use by anyone wanting to measure the current flowing in a.c. electrical cable up to 400 amps a.c.

Megger DCM310-Digital Clamp Meter Specifications:

• Safety rating: IEC/EN61010-1 CAT III 600 V
• Temperature coefficient:  0.2 x (specified accuracy) / ºC (<18 ºC >28 ºC)
• Maximum conductor size: 27 mm diameter
• LCD:2000 digit large-scale readout
• Storage temperature: -20 ºC – +60 ºC (80% RH) (batteries removed)
• Operating altitude: 2000 m
• EMC: IEC/EN 61326-1
• Dimensions: 56 mm (W) x 180 mm (H) x 32 mm (D)
• Weight:  250 g including battery
• DCM320 – 225 g including batteries
