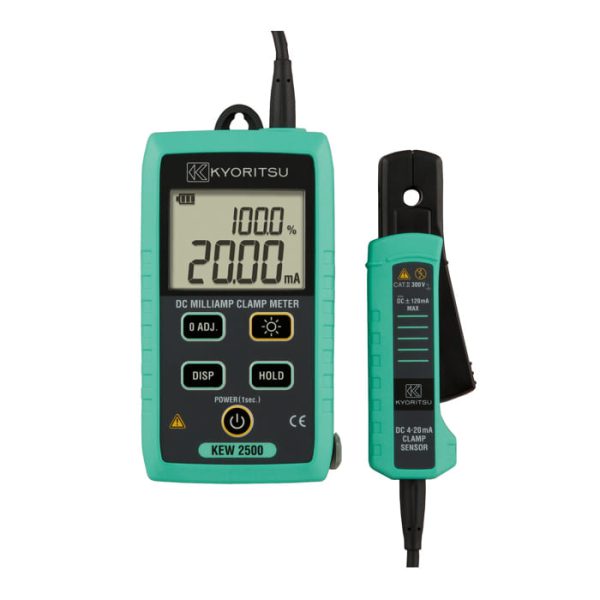

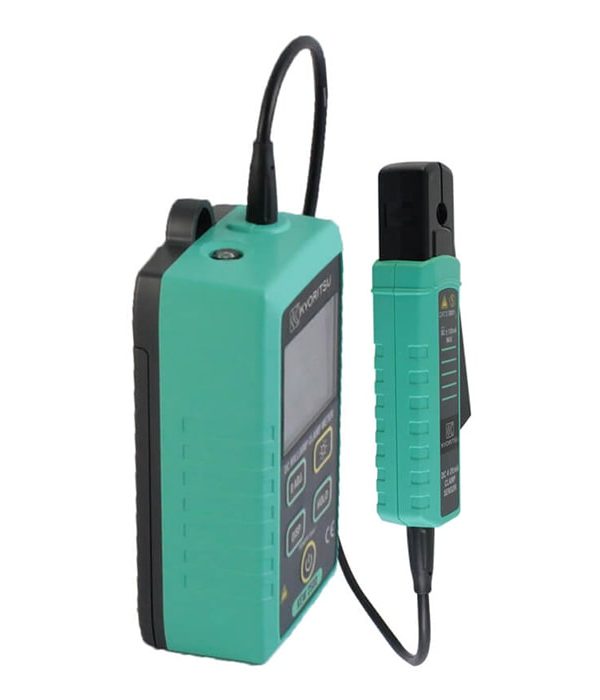

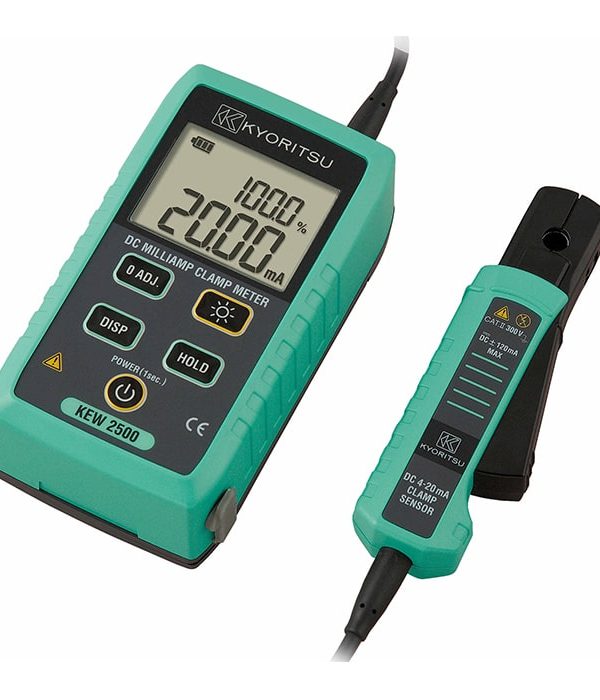

Kyoritsu DC Milliamp Clamp Meter KEW 2500

The Kyoritsu DC Milliamp Clamp Meter KEW 2500 is a great tool for measuring DC current in milliamps without disrupting the circuit. This tiny, portable instrumentation equipment is popular among electricians and technicians for low current readings.

The kyoritsu clamp meter 2500 is a high resolution, low current DC clamp meter. Featuring a 0.01mA resolution and 0.02% accuracy, the 2500 model is ideal for automotive and process control industries.

The Kyoritsu 2500 is a high precision millliamp clamp meter with a specified 0.02% accuracy. Possessing a 0.01mA resolution, the 2500 model is capable of measuring DC current from 0.01mA to 120mA.

The Kyoritsu 2500 comprises a 6mm clamp jaw, allowing the meter to be utilised in tight working conditions. An analog output terminal is also present on the tester, providing the ability to integrate a recorder or logger.

Kyoritsu DC Milliamp Clamp Meter KEW2500 Specifications :

• DC A : 20/100mA (Auto ranging)
• Conductor size : Ø6mm max.
• Analog output : Recorder; DC 1000mV against DC 100mA
• Operating temperature & humidity range : -10 – +50ºC < 85%
• Storage temperature & humidity range :  -20 – +60ºC < 85%
• Power source : R6/LR6 (AA) (1.5V) × 4
• Weight : Approx. 290g (including batteries)
• Included Accessories : 9096 (Carrying case), LR6 (AA) × 4,
  Instruction Manual
• Optional Accessories : 7256 (Output cord)
