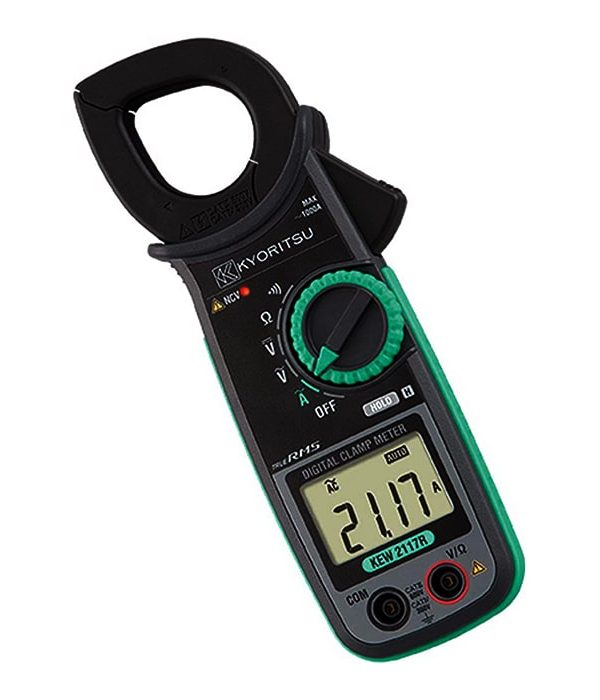

AC Digital Clamp Meters KEW 2117R

The KYORITSU 2117R, In TrueRMS mode, the KYORITSU 2117R AC Digital Clamp Meter detects AC current in three ranges: 60A, 600A, and 1000A, with a precision of 0.01A on the lowest 60A level. As the measured value changes, the ranges adjust automatically. The tear-drop jaws can measure wire up to 33mm in diameter.

Moreover, the KYORITSU 2117R features the following measuring functions: AC Volts, DC Volts, Resistance, Continuity, and Non Contact Voltage Detection.The gadget may be used with one hand thanks to the function selector knob.

Benefits of AC Digital Clamp Meters KEW 2117R

The KEW 2117R AC Digital Clamp Meter is a flexible and user-friendly measurement equipment that is extensively utilized in a variety of electrical applications. Its sophisticated features and capabilities enable electricians, technicians, and engineers to easily examine electrical characteristics.

The KEW 2117R clamp meter’s speed and accuracy are two of its key advantages. With its high-resolution values, the meter can detect even the smallest shift in current, allowing for more exact data gathering and analysis. Furthermore, the big LCD display and illuminated feature of the gadget make it easier to see the measured data even in low-light settings.

For more information on kyoritsu kew 2117r price, please contact our experts.

kyoritsu clamp meter manual

kew 2117r manual, It won’t matter much to those who know how to use a Digital Clamp Meters, but new users can have a hard time. However, most of it is self-explanatory and you also have the online manual to refer to if you get stuck.

AC Digital Clamp Meters KEW 2117R price

kyoritsu 2117r spec :

• AC A : 60.00/600.0/1000A (Auto-ranging)
  ±1.5%rdg±4dgt [45 – 65Hz]
  ±2.0%rdg±5dgt [40 – 1kHz]
• AC V : 60.00/600.0V (Auto-ranging)
  ±1.0%rdg±2dgt [45 – 65Hz] (600V)
  ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
• DC V : 60.00/600.0V (Auto-ranging)
  ±1.0%rdg±3dgt (60V)
  ±1.2%rdg±3dgt (600V)
• Ω  : 600.0Ω/6.000/60.00/600.0kΩ (Auto-ranging)
  ±1.0%rdg±5dgt (600Ω)
  ±2.0%rdg±3dgt (6/60/600kΩ)
• Continuity buzzer : 600Ω(Buzzer sounds below 90Ω)
• Conductor size : Ø33mm max.
• Power source : R03/LR03 (AAA) (1.5V) × 2
• Continuous measuring time : Approx.170 hours
  (When R3 is used)(NCV_LED:off)
  (Auto power save : approx. 10 minutes)
• Dimensions : 204(L) × 81(W) × 36(D)mm
• Weight : 220g Approx. (including batteries)
