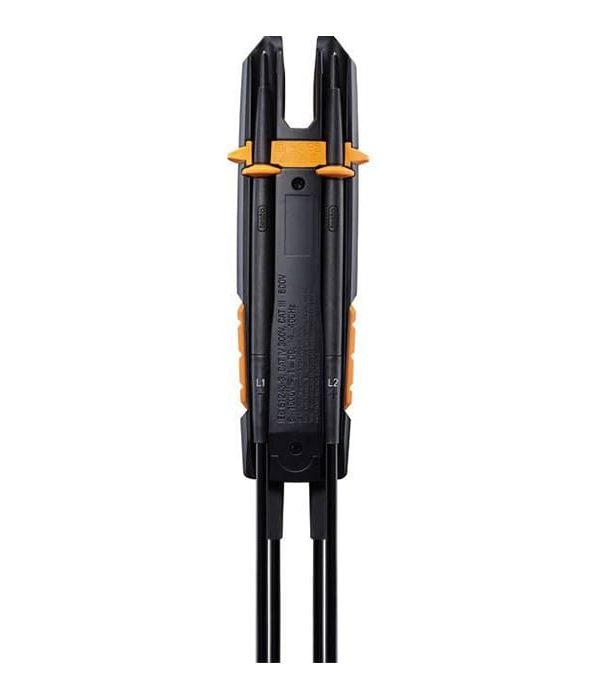

testo 755-1 Current/voltage tester

Order-Nr.  0590 7551

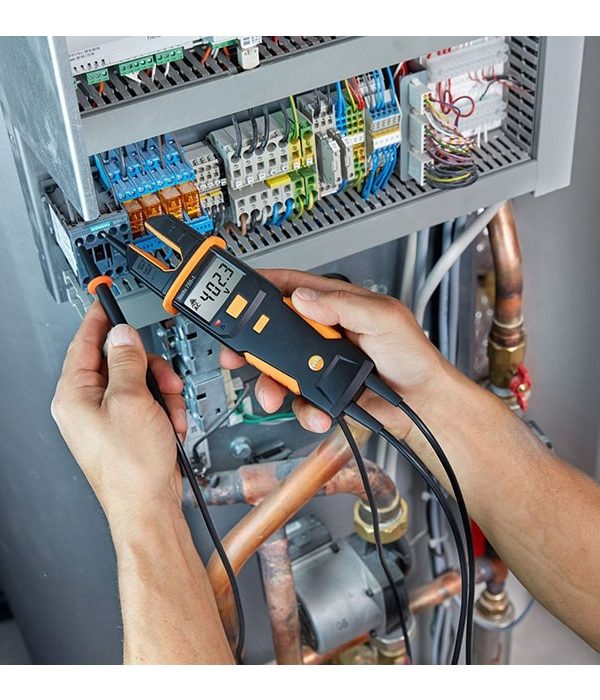

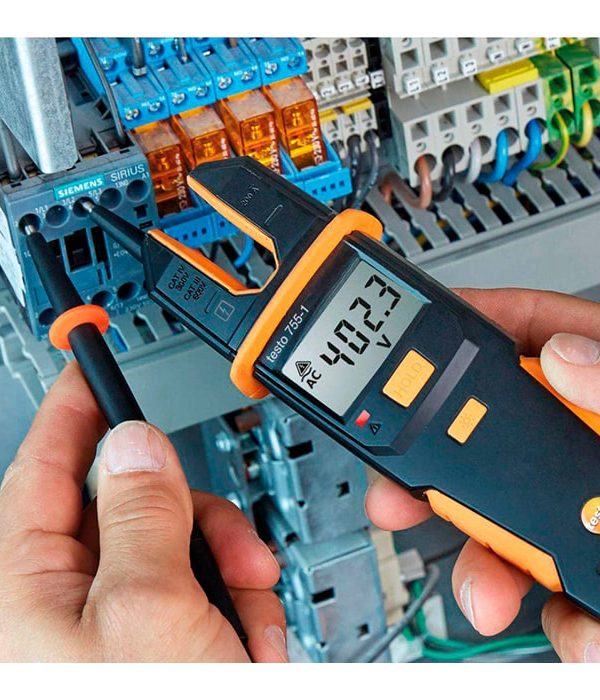

The first voltage tester with current measurement: the testo 755-1. You can test electrical circuits or systems for voltage or de-energization, measure the flow of current or current consumption, and carry out continuity tests using a single instrument.

In the process, the testo 755-1 voltage tester detects and selects all the electrical parameters automatically: you can just start measuring – without any switching on or selection.

The measuring tips, which can be quickly and simply exchanged, are also particularly user-friendly. This means you do not need to replace the whole instrument straight away in the event of damage. Just as practical: the integrated torch for illuminating dark measuring points.

The testo 755-1 current/voltage tester is a genuine allrounder that will make your day-to-day work easier.

testo 755-1 Current/voltage tester specification :

• Operating humidity : 0 to 75 %RH
• Weight: 320 g
• Dimensions : 199 x 62 x 40 mm
• Operating temperature: -10 to +50 °C
• Protection class: IP64
• Standards: EN 61243-3; EN 61010-1
• Battery type: 2 AAA micro batteries
• Storage temperature: -15 to +60 °C
• Overvoltage Category : CAT IV 600V; CAT III 1000V
• Measuring range Resistance: 30 to 100 kOhm
• Resolution Resistance: max. 1 Ohm
• Accuracy Resistance : ± (1.0 % of mv + 5 Digit)
• Measuring range AC current: 0.1 to 200 A
• Resolution AC current: max. 0.1 A
• Accuracy AC current : ± (3 % of mv + 3 Digit)
• Measuring range AC voltage: 6 to 600 V
• Resolution AC voltage: max. 0.1 V
• Accuracy AC voltage : ± (1.5 % of mv + 3 Digit)
• Measuring range DC voltage: 6 to 600 V
• Resolution DC voltage: max. 0.1 V
• Accuracy DC voltage : ± (1.5 % of mv + 3 Digit)
