Testo 330i Basic Set-Flue Gas Analyzer Set

Order-Nr. 0563 3000 70

The testo 330i flue gas analyzer combines the proven measuring technology of the preceding model testo 330 LL with a revolutionary new method of operation: operation independent of measuring location via smartphone, a sturdy testoFix probe holder, and paperless documentation. This instrument embodies the current trends in flue gas measurement.

The centerpiece of the set is the testo 330i basic set flue gas analyzer with an H2-compensated CO sensor. The flue gas analyzer is therefore also approved for the official acceptance testing of heating systems.

Operation of the flue gas analyzer and the display of readings are implemented independently of the measuring location via the testo 330i App on your smartphone or tablet. Here, you can make adjustments to the measuring instrument, analyze the flue gas values, enter customer data, and create measurement protocols. You can then add comments or photos of the system to the protocols, and send them to the customer or your office via e-mail.

Testo 330i Basic Set – Flue Gas Analyzer Set Features:

Operation independent of measuring location and display of readings via smartphone or tablet and the testo 330i App
Paperless documentation and report creation on-site with the testo 330i App

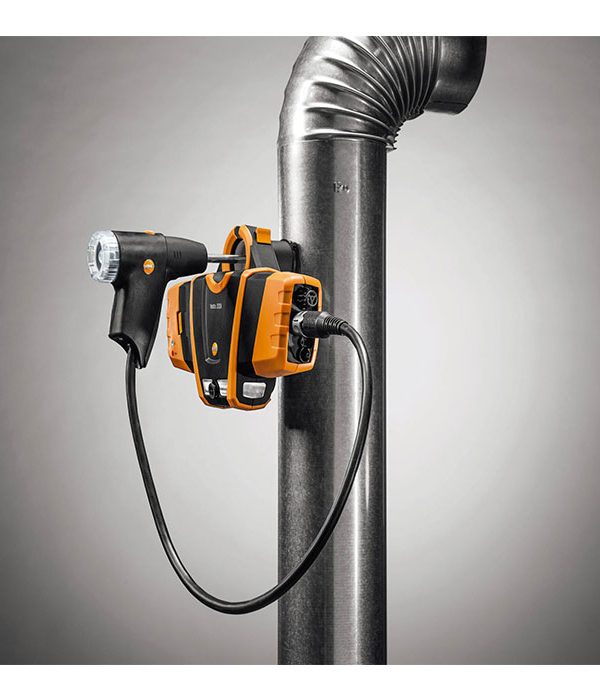

Reliable attachment of the flue gas probe with the testoFix probe holder
Practical accessories, including probes and temperature probe

Everything you need to carry out efficient servicing and commissioning of heating systems using the testo 330i flue gas analyzer – in one compact set.

Testo 330i Basic Set-Flue Gas Analyzer Set Specification:

General technical data :

Weight: 720 g (excluding battery)
Dimensions : 270 x 160 x 57 mm
Operating temperature: -5 to +45 °C
Power supply: Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)
System requirements: requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Maximum Memory: 500000 readings
Storage temperature: -20 to +50 °C
Requirement: iOS 7.1 / Android 4.3 or newer. Mobile end device with Bluetooth 4.0.

Differential Pressure – Piezoresistive :

Measuring range : 0 to 300 hPa
Accuracy :±0.5 hPa (0.0 to +50.0 hPa)±1 % of mv (+50.1 to +100.0 hPa)±1.5 % of mv (Remaining Range)
Resolution: 0.1 hPa

Rated 5 out of 5

1 review

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

1 review for Testo 330i Basic Set-Flue Gas Analyzer Set

Clear filters

Edward – July 5, 2022
Rated 5 out of 5
Excellent device
0
0

Add a review

You must be logged in to post a review.

Brand

Testo

Testo is a world leader in the design, development, and manufacture of portable test and measurement instrumentation and solutions. Backed by 60 years of measuring engineering experience, our mission is to provide the best quality, service, and value in the industry. In addition, Testo is recognized as the leading worldwide manufacturer of portable combustion efficiency analyzers and air emission analyzers. Testo has become a major supplier of HVAC, critical HVAC, refrigeration, airflow, and environmental monitoring instruments for markets as diverse as chemical, food service and production, pharmaceutical and biotechnology, and residential HVAC suppliers.

Data Sheet

Gas measuring name/range/reso;ution/accurracy

CO Accuracy (±1 digit): differs from ±10 ppm or ± 10 % of m.v. (0 to 200 ppm) to ±20 ppm or ± 5 % of m.v. (201 to 2,000 ppm), CO measurement: 0 to 30000 ppm (differs in different situations), CO Resolution: 1 ppm, O2 Accuracy (± 1 digit): ±0.2 vol.%, O2 measurement: 0 to 21 vol. %, O2 Resolution: 0.1 vol.%

Gas type

Carbon monoxide (CO), Oxygen (O2)

Temperature range/resolution/aacuracy

Accuracy (± 1 digit): ±0.5 °C (0.0 – +100.0 °C), ±0.5 % of m.v. (remaining meas. range), Range: -40 to +1200 °C, Resolution: ±0.1 °C (-40 – +999.9 °C), ±1 °C (remaining meas. range)

Dimensions

270 x 160 x 57 mm

Weight

720 g (excluding battery)

Power

Mains unit 6 V / 1.2 A (optional), Rech. batt. block 3.7 V / 2.6 Ah

Operating temperature

-5 to +45 °C

Storage temperature

-20 to +50 °C

Measurement Unit

hPa, ppm, vol.%, °C
