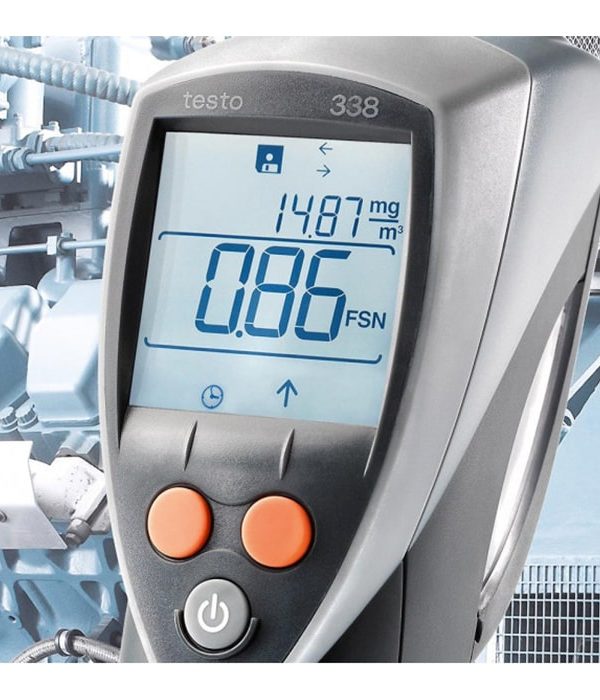

testo 338 Smoke tester
For diesel engines, the smoke count is an important parameter, not only for evaluating emissions but also for the correct adjustment of the fuel injection. With the smoke tester testo 338, the determination of the degree of blackening is revolutionarily easy; no stationary measurement equipment, no analysis electronics – with just one portable one-hand measuring instrument.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
AED 19,338 (excl.VAT)
Testo-338Â Smoke Tester
Order-Nr. 0632 3381
The Testo 338 smoke tester is a powerful and reliable measuring device for measuring particle emissions from diesel engines and industrial processes.

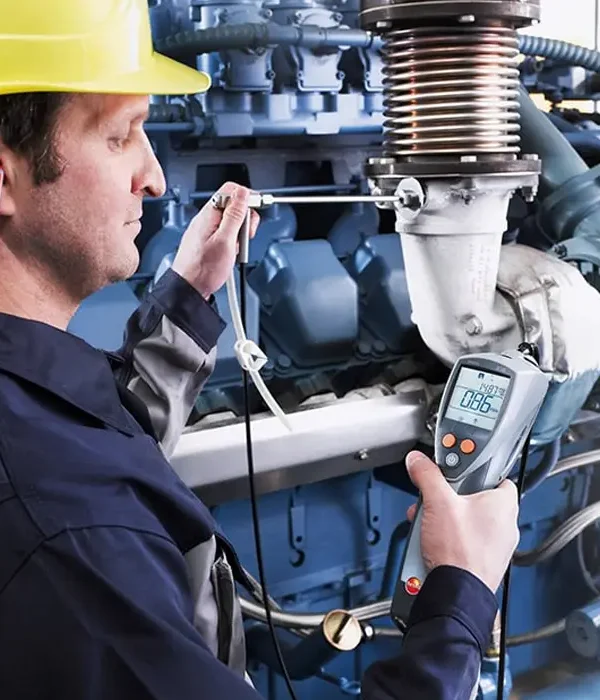

The Testo 338 smoke tester has the advantage that it can be taken to the desired location as a portable device. It doesn’t matter whether the tested diesel engines are in industrial plants, ships, shipyards, or mines – with the testo-338 you always have your smoke-measuring device within reach in your toolbox. This eliminates the cumbersome installation of permanently installed measuring systems.
Tester Testo 338
The testo -338 smoke tester is a valuable tool for measuring particle emissions in real-time. It has high accuracy and can detect even the smallest particles. In addition, the device is intuitive and easy to use, with a clear display and an intuitive user interface. It’s also portable, meaning it can be used in a variety of locations and environments.
It is advisable to measure the number of exhaust gases, especially before starting or after servicing diesel engines. This will help determine if the injection is properly timed or if there are problems in the engine.
However, in order to confirm emission levels, it is often necessary to determine the degree of haze, for example in mining or transport to meet special environmental regulations or to check diesel particulate filters. Diesel engine manufacturers must also meet and demonstrate customer requirements. With the testo 338, the first mobile smoke alarm device with direct data analysis, you are perfectly equipped for these applications.
Our site offers all kinds of Testo brand products such as testo 339,testo 340 testo 330, and testo 335. For more information about the testo 338 price and other products, contact our technical experts.
testo-338 smoke tester FAQ:
What is the testo -338 smoke tester for?
The Testo 338 smoke tester is used to measure particle emissions from diesel engines and industrial processes.
How does the testo -338 smoke analyzer work?
The Testo 338 Smoke Tester works by drawing an exhaust gas sample through a particle filter. The device then measures the number of particles in the sample and displays the results on the screen.
Is the Testo -338 smoke analyzer portable?
Yes, the Testo 338 smoke tester is portable and can be used in different places and environments.
Does the Testo -338 smoke analyzer also measure other types of emissions?
No, the Testo 338 smoke tester is specially designed for measuring particle emissions and is not suitable for measuring other types of emissions such as gases.
How accurate is the testo-338 smoke analyzer?
Testo Smoke testo 338 is characterized by high precision and detects even the smallest particles.
testo-338Â Smoke tester specifications:
General Specifications
Protection class | IP 40, TopSafe |
Interface | IRDA / optional Bluetooth |
Memory | 200 measuring values |
Storage battery type | Lithium-ion |
Battery life | approx. 4 h cont. operation |
Application temperature | Individual measurements up to +500 °C |
Max. pos. Press./flue gas | 300 mbar* |
Test sample volume | 0.4 liters (range: 0 to 0.3 FSN); 0.2 liters (range: 0.2 to 2 FSN) |
Flow-through measurement | Differential pressure sensor |
Optical sensor | The opacity of the filter load in % |
Measurement period | Ë‚ 60 s per measurement cycle |
Soot Concentration
Measuring range | 0 to 70 mg/m³ |
Resolution | 0.01 mg/m³ |
Wiederholung | < 1.5 mg/m³ (0 to 5 mg/m³) < 1.25 mg/m³ +5 % of mv (5 to 70 mg/m³) |
FSN Bosch Number
Measuring range | 0 to 2.5 * |
Resolution | 0.01 * |
Wiederholung | < 0.08 FSN |
