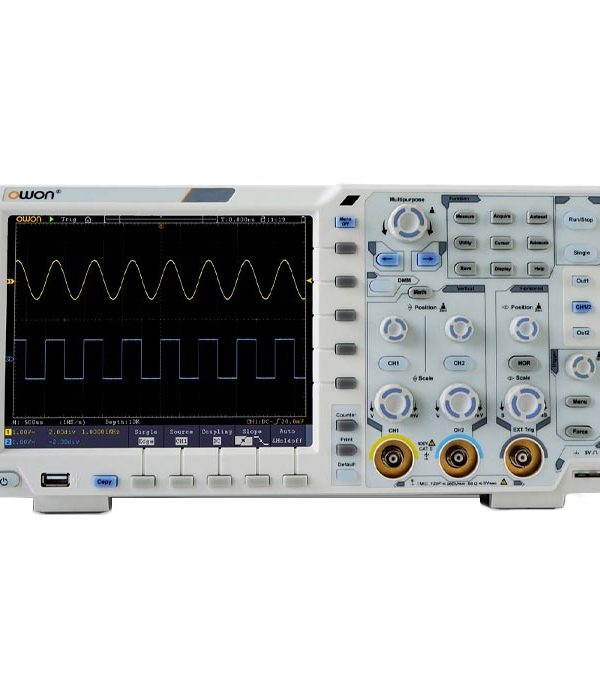

OWON XDS3302 N-In-1 Digital Oscilloscope

The OWON XDS3302 N-In-1 Digital Oscilloscope is a cutting-edge electronic testing tool that is highly acclaimed for its innovation and performance. It is a versatile and user-friendly device that caters to the needs of professionals in various industries. Despite the rapid advancements in technology, the XDS3302 remains a dependable tool for those who require precise, adaptable, and efficient testing solutions.

,
(1 customer review)
SKU:65060

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

Compare
13People watching this product now!

OWON XDS3302 N-In-1 Digital Oscilloscope

The OWON XDS3302 N-In-1 Digital Oscilloscope is an advanced instrument that offers accurate and versatile testing solutions. It has a modern and sleek design with cutting-edge features, making it a popular choice among professionals.

The OWON XDS3302 sets a new benchmark in signal analysis with its bandwidth of 300MHz and sample rate of 2.5GS/s. With an 8-bit high-resolution ADC, accurate waveform capture is guaranteed. Its 40M record length and impressive waveform refresh rate of up to 75,000 wfms/s further solidify its capabilities.

The OWON XDS3302 is not just an oscilloscope; it offers a wide range of functions that redefine versatility in testing. It operates as a data logger, multimeter, and dual-channel arbitrary waveform generator, providing professionals with an all-in-one solution to their measurement needs.

In addition to its exceptional performance, the OWON XDS3302 captivates with its modern design and user-friendly features. Its ultra-thin body and multiple interface options, including USB and LAN, showcase a commitment to ergonomic design. The 8-inch high-resolution LCD, enhanced by the optional multi-touch screen, offers an intuitive and immersive user experience, further enhancing its appeal.

OWON XDS3302 N-In-1 Digital Oscilloscope Specifications:

  • Bandwidth: 300MHz
  • Sample Rate: 2.5GS/s
  • Vertical Resolution (A/D): 8 bits
  • Record length: 40M
  • Horizontal Scale (s/div): 1ns/div – 1000s/div, step by 1 – 2 – 5
  • Channel: 2 + 1 (external)
  • Display: 8″ color LCD, 800 x 600 pixels
  • Waveform Math:  ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
  • Bus Decoding: I2C, SPI, RS232, and CAN (optional)
  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
  • Power Supply: 100V – 240V AC, 50/60Hz, CAT II
  • Power Consumption: ＜24W
  • Fuse: 2A, T class, 250V
  • Battery (optional): 3.7V, 13200mAh
  • Dimension (W x H x D): 340 x 177 x 90 mm
  • Weight: 2.60 kg±200g

Optional Module / Function:

  • VGA: VGA+AV
  • WIFI
  • AWG: arb waveform generator
  • DMM: digital multimeter
  • TOU: Touch screen(capacitor-type)

Optional Decoding Kit:

  • RS232
  • SPI
  • I2C
  • CAN: CAN decoding
5
1 review
1
0
0
0
0

1 review for OWON XDS3302 N-In-1 Digital Oscilloscope

Clear filters

  1. fred –

    the owon brand is the high class.how can i make contact with your experts?

    0
    0
Add a review

Brand

Owon

OWON

"OWON" is a distinguished brand that has made significant strides in the field of electronic test and measurement equipment. With a commitment to innovation, precision, and user-friendly design, OWON has established itself as a trusted name among professionals, researchers, and enthusiasts seeking top-quality tools for accurate measurements and data analysis.

The brand's journey began with a focus on oscilloscopes, and over the years, OWON has expanded its product range to encompass a diverse array of electronic testing equipment. From digital oscilloscopes and waveform generators to multimeters, power supplies, and spectrum analyzers, OWON's offerings cater to a wide spectrum of industries, including electronics, telecommunications, education, and research. In conclusion, OWON is a name associated with quality, innovation, and affordability in the field of electronic test and measurement equipment. OWON equips experts and hobbyists to succeed in their respective industries with a wide variety of instruments that are made for precision, usability, and connectivity.

Datasheet

Datasheet

Datasheet

Read more

Specifications

specifications
DC Current(Range/Resolution/Accuracy)

40mA, 400mA: ±(1.5%±1 digit), 4A, 10A: ±(3%±3digit)

DC Voltage(Range/Resolution/Accuracy)

400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit)

Resistance(Range/Resolution/Accuracy)

400Ω: ±(1%±3digit), 40MΩ: ±(1.5%±3digit), 4KΩ~4MΩ: ±(1%±1digit)

Capacitance(range/resolution/accuracy)

51.2nF – 100uF: ±(3%±3 digits)

Frequency (Range/Resolution/Accuracy)

40Hz – 400Hz

Oscilloscopes
Bandwidth

300MHz

Channels

2

Max Input Voltage

1000V

Sample rate

2.5GS/s

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Vertical Resolution

8bits

Vertical Sensitivity

1 mV/div – 10 V/div

Mechanical and General Specifications
Dimensions

340 mm× 177 mm×90 mm (L*H*W)

Weight

Approx. 2.6 kg (without accessories)

Power

< 24 W

Accessories

Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), and Battery (optional)
