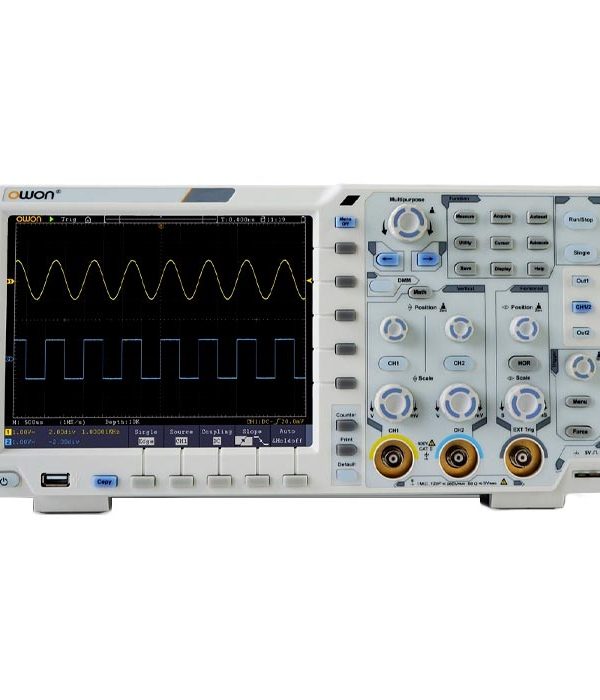

OWON XDS3202 N-In-1 Digital Oscilloscope
The multifunctional OWON XDS3202 N-In-1 Digital Oscilloscope is a game-changer in electronic measurement, blending cutting-edge technology with ease of use. It’s an essential tool that professionals across various industries rely on for its precision and versatility. As technology advances, the XDS3202 remains at the forefront, setting new standards in testing and analysis. You can now find it on the mme.ae website, a trustworthy online store for high-quality tools. Professionals can depend on mme.ae to guide them in selecting the best tools for their needs.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
OWON XDS3202 N-In-1 Digital Oscilloscope
If you’re looking for a reliable and efficient electronic measurement tool, the OWON XDS3202 N-In-1 Digital Oscilloscope is a great option to consider. It’s available on the mme.ae website, and it has garnered the attention of professionals who require accurate and sophisticated testing solutions. The device’s numerous features and multifunctional capabilities make it a top choice for anyone in need of an advanced oscilloscope.
The OWON XDS3202 is a testament to the latest advancements in oscilloscope technology. It boasts a bandwidth of 200 MHz and a real-time sample rate of 2 GS/s, ensuring that it captures even the most intricate waveforms with the utmost precision. With an 8-inch TFT LCD display and 800×600 resolution, the device provides clear and vivid waveform visualization, while the multitouch functionality enhances user interaction.
What sets the OWON XDS3202 apart from other digital oscilloscopes is its n-in-1 functionality. It’s not just a digital oscilloscope; it also serves as a data logger, multimeter, and waveform generator, making it a versatile tool that can be used for various testing scenarios. Additionally, the device has interfaces such as USB, VGA, and LAN, enabling seamless connectivity and remote operation, empowering professionals to work efficiently.
The OWON XDS3202 is not just a device that measures waveforms; it’s also great at measuring voltage and time difference cursor measurements and auto measurements like Vpp, Vmax, and Vmin, making complex analysis simplified. Its compact size and weight make it a convenient choice for both benchtop and field testing. Overall, it’s an excellent choice for those looking for an advanced and multifunctional oscilloscope that provides accurate and efficient testing results.
OWON XDS3202 N-In-1 Digital Oscilloscope Specifications:
- Bandwidth: 200MHz
- Sample Rate: 2GS/s
- Vertical Resolution (A/D): 8 bits
- Record length: 40M
- Horizontal Scale (s/div): 1ns/div – 1000s/div, step by 1 – 2 – 5
- Channel: 2 + 1 (external)
- Display: 8″ color LCD, 800 x 600 pixels
- Waveform Math: +, -, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
- Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
- Bus Decoding: I2C, SPI, RS232, and CAN (optional)
- Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
- Power Supply: 100V – 240V AC, 50/60Hz, CAT II
- Power Consumption: <24W
- Fuse: 2A, T class, 250V
- Battery (optional): 3.7V, 13200mAh
- Dimension (W x H x D): 340 x 177 x 90 mm
- Weight: 2.60 kg±200g
Optional Module / Function:
- VGA: VGA+AV
- WIFI
- AWG: arb waveform generator
- DMM: digital multimeter
- TOU: Touch screen(capacitor-type)
Optional Decoding Kit:
- RS232
- SPI
- I2C
- CAN: CAN decoding
