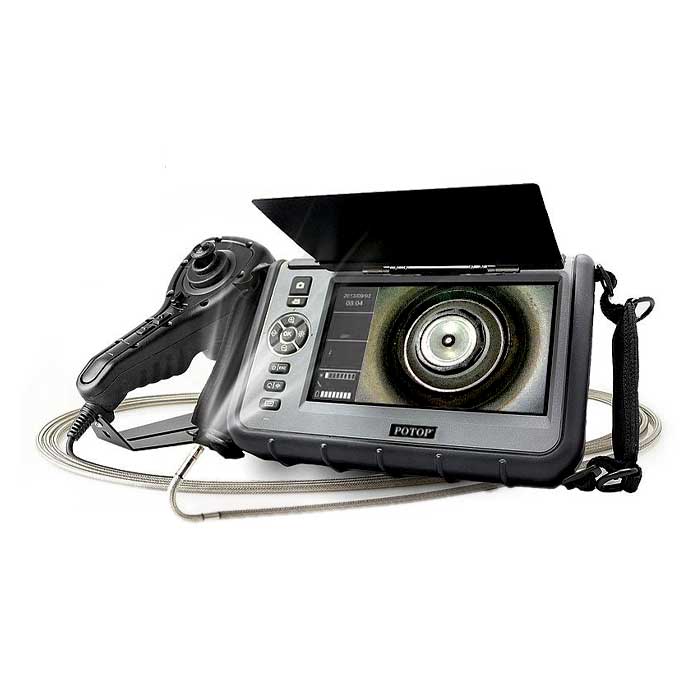

OME-TOP JK Series 7-Professional Video Borescope Camera 360°

OME-TOP JK Series 7 is an industrial borescope used to inspect hard-to-reach areas. Professionals from various industries can benefit from the OME-TOP JK Series 7-Professional Video Borescope Camera 360°. In addition to 360-degree vision, a high-definition camera, and portability, it offers a number of advantages. It does, however, have several shortcomings, such as a relatively high price and a short battery life.

CT Series HD Borescope Videoscope Endoscope Features Introduction

Users can gain several advantages from the OME-TOP JK Series 7-Professional Video Borescope Camera 360°. It primarily offers a 360-degree perspective, enabling you to examine every crevice of the object you’re researching. It also contains a high-definition camera, creating clear, detailed images that simplify spotting any issues. You can reach confined locations that would be challenging to access because of the device’s long, flexible wire.

Even while the OME-TOP JK Series 7-Professional Video Borescope Camera 360° has a lot of advantages, there are some disadvantages as well. One drawback is that the instrument is pricey in comparison to other video borescopes available on the market. The limited battery life of the item means you’ll need to recharge it regularly if you use it for prolonged periods of time, which is another possible drawback.

Articulation Probes Compare

The majority of NDT applications open onto significantly larger spaces from a small, constrained entrance. Because of this, it’s beneficial to have an articulating borescope so that inside inspection can be completed without missing dead corners.
However, articulation is not necessary for every application. There is little to no capacity for articulation in some inspection applications because the internal chambers have limited diameters throughout. The most frequent use of these applications is to inspect gun barrels, where a straight probe would be a more effective instrument (and more affordable tool) to complete the task.

Articulation is essential to ensuring that the entire interior surface area is carefully inspected when utilizing a remote video borescope to examine internal cracks.

It would be similar to riding a scooter without the ability to turn your head from side to side, look down to check your speedometer or look up to see traffic signs. This is comparable to looking inside parts using a non-articulating borescope. When inspections are conducted using non-articulating borescopes, numerous details may be missed, some of which may result in dangerous or risky circumstances.

Full internal inspections may be completed quickly and with the assurance that comes from being able to check all angles of internal cracks thanks to advanced articulate inspection tools like the JKVS-60014, JKVS-60034, JKVS-60054, and JKVS-60074 video borescope. NDT technicians can save critical working time because JKVS cameras do not need to be moved around repeatedly to perform inspections.

To get more info please contact us.

OME-TOP JK Series 7 Features

•  Large 7” TFT LCD ( 800 * 480 )
•  Snapshot and Audio / Video recording (640 * 480)
•  LED brightness adjustment
•  5X Zoom in, Mirror image, and Image rotation
•  USB to PC connection
•  Long duty hours up to 4 hrs
•  AV OUT
• Light & Handy
• Screen Image Rotation Ability

Application

• Aircraft Turbines
• Airframe Inspections
• Bearings & Gearboxes
• Chemical Processing
• Co-Gen Plants
• Corrosion
• Motors
• PC Pumps
• Electronic Assemblies
• Heat Exchangers & Boilers
• Land-Based Turbines
• Large Diesel Engines
• Metal Castings
• Military/EOD/Law Enforcement
• Mining & Exploration Maintenance
• Nuclear Power
• Oil & Gas Maintenance
• Paper Mills
• Power-Gen
• Pumps & Valves
• Engines
• Refineries
• Wind Turbines
• Drain/Sewer/Pipe
• Hard-to-reach places
• Non Destructive Testing

FAQ

Q: What is the maximum length of the cable?

A: The OME-TOP JK Series 7-Professional Video Borescope Camera 360° comes with a 1-meter long cable, but longer cables are also available for purchase.

Q: Is the device waterproof?

A: Yes, the device is waterproof, making it suitable for use in wet or damp environments.

Q: Can the device be used in complete darkness?

A: No, the device does not have its own light source, so it requires external lighting to produce clear images.

Q: What is the warranty on the OME-TOP JK Series 7-Professional Video Borescope Camera 360°?

A: The device comes with a one-year warranty from the manufacturer.

Q: What is a borescope?

A: If you want to know the answer to the question “What is a borescope,” you must first understand that it is a remote inspection tool used in Non-Destructive Testing (NDT). Borescopes were developed to help magnify and illuminate things that are situated in small, challenging-to-reach, and challenging-to-see regions, particularly cavities, in a non-destructive manner. The fundamental definition of a borescope is what has just been stated.

Q: What is a borescope used for?

A: For industrial systems and equipment that requires non-destructive examination, borescopes are frequently employed. These locations exist primarily because there are no other means of accessing them. For instance, the visual inspection of industrially created items such as engines, turbines, automobiles, endoscopes, and others that demand special attention due to their need for quality, maintenance, and safety

OME-TOP JK Series 7 Specifications

• LCD: 7″ TFT LCD ( 800 x 480 )
• Snapshot: JPEG ( 640 x 480 )
• Recording: MPEG4 ( 640 x 480 ) with Audio
• Storage: 16G SD card ( up to 32G )
• USB: Live view mode (optional software) / Mass storage mode
• AVoutput:  NTSC/PAL
• Audio input: Built-in microphone
• Zoom-in: Support 1.5X / 2.0X / 5.0X digital zoom
• Brightness Adjust:  10 levels
• Dust & Water Proof: IP57
• Shock Proof: 1-meter drop test
• Working temperature: -10 ~ 60℃
• Storage temperature: -20 ~ 80℃
• Battery:  Built-in Li-polymer Battery, Capacity: 6 hrs, Charge time: 3 hrs
• Languages: 27 Languages
• Dimension: 240 * 154 * 47 (mm)
• Weight 1.18 kg (2.6 lb)

JK Series 7 Accessories

• Basing clinic kit
• 16g SD card
• Video cable
• USB cable
• Articulation vga probe
• ội soi công nghiệp ometop
• Neck Strap
• Sun Visor
• Charger
