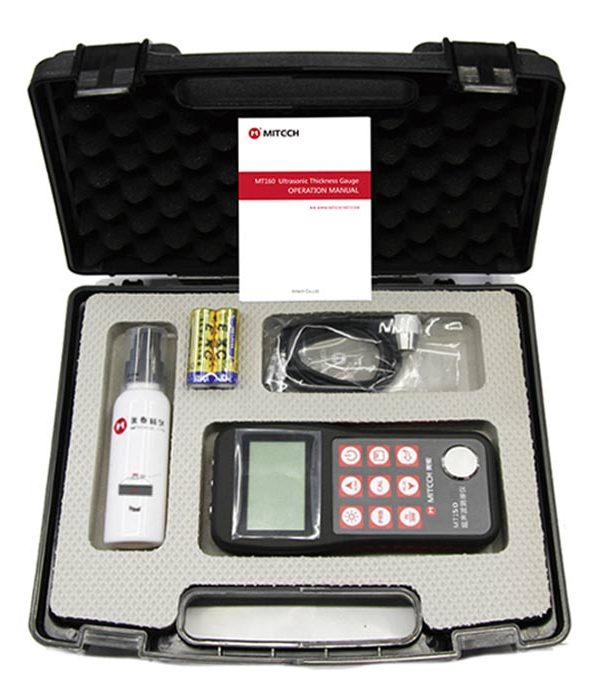

Mitech MT160 Ultrasonic Thickness Gauge
The Mitech MT160 Ultrasonic-Thickness Gauge is a highly sophisticated and precise measurement equipment that is used in a variety of industrial industries to determine the thickness of various materials.
To get more information about this product contact us mme.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
Mitech MT160 Ultrasonic Thickness Gauge
The Mitech MT160 Ultrasonic Gauge is a highly sophisticated and precise measurement equipment that is used in a variety of industrial industries to determine the thickness of various materials. This gadget employs ultrasonic waves to measure thickness from one side, making it a very handy and time-saving piece of industrial equipment.
The device can measure the thickness of many materials, including metal, plastic, ceramic, glass, and many other good ultrasonic conductors, using the ultrasonic principle. Its unique non-destructive testing capabilities make it the ideal choice for checking the thickness of closed pipelines, containers, and so on.
It is extensively utilized in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other areas to monitor the degree of corrosion thinning in various pipelines and pressure vessels. It may also be used to accurately measure sheet metal and machined items.
Mitech MT160 Digital Ultrasonic Thickness Gauge Features
The precision of the Mitech MT160 is one of its key advantages. This gadget can measure thickness exactly to 0.1 mm, making it very precise and dependable for a variety of applications. Furthermore, the gadget is incredibly portable and lightweight, making it easy to transport across different workplaces.
Another significant advantage of the Mitech MT160 Gauge is its adaptability. This gadget can measure the thickness of a variety of metals, polymers, and other materials, making it ideal for usage in a variety of sectors. Furthermore, the equipment is user-friendly, with a widescreen display, and the audio-visual warning system aids in immediately identifying defects in materials.
Mitech Ultrasonic Thickness Gauge MT160 Specifications:
- Measuring Range: 0.75-300mm (Depends on probes)
- Working Frequency: (2.5-7)MHZ
- Probe Diameter: Standard N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM
- Min. Pipe Diameter: Φ15mm×2.0mm
- Resolution: 0.1mm/0.01mm
- Accuracy: ±(0.5%Thickness+0.04)mm,depends on probes
- Display: 4.5 digits LCD with EL backlight
- Single /Scan Mode: Four measurements readings per second for single point measurement, and ten per second for Scan Mode
- Probe Calibration: Zero Calibration, Two-Point Calibration
- Velocity Range: 1000-9999m/s
- Unit: Metric/Imperial unit selectable
- Language: English
- Memory: up to 20 files (up to 99 values for each file) of stored values
- Communication Port: USB
- Power supply: Two “AA” size, 1.5 Volt alkaline batteries
- Working Hours: 100h (EL backlight off).
- Operating Temperature: -20℃-+60℃
- Relative Humidity: ≤90%
- Appearance: ABS Plastic
- Outline: 150mm×74mm×32 mm
- Gross Weight: 1.5 KG
