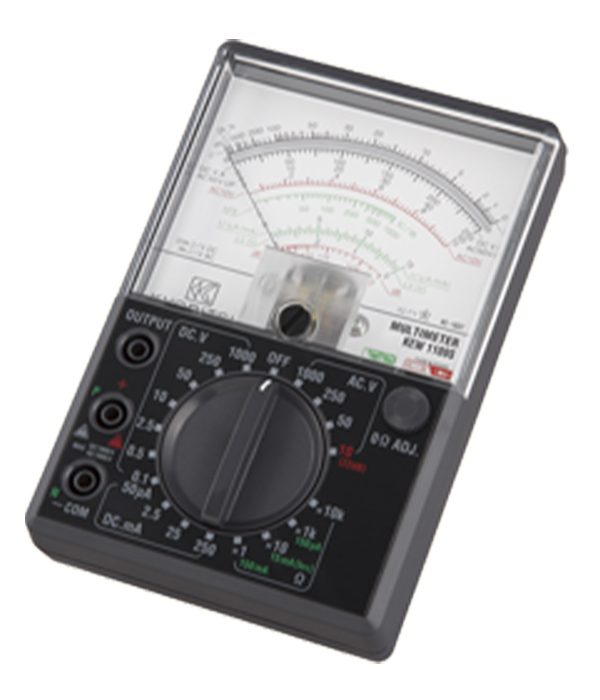

Kyoritsu KEW 1109S

Analog multimeter model 1109S Kyoritsu Japan (kyoritsu 1109S multimeter) with the ability to measure direct and alternating voltage up to 1000 volts and direct current measurement up to 250 mA and measuring alternating current up to 15 amps, and resistance up to 20 megohms.

KEW 1109S VS KEW 1110

The KEW 1109 S and the KEW 1110 are both analog multimeters designed for electrical measurement applications. While they share similarities with analog instruments, there are differences in their features and capabilities.

The KEW 1109S is a basic analog multimeter that offers essential measurement functions such as AC/DC voltage, AC/DC current, and resistance. It typically has a clear analog display with a pointer and calibrated scales to indicate the measured values.

On the other hand, the KEW 1110 is a more advanced analog multimeter that provides additional measurement functions and features. In addition to AC/DC voltage, AC/DC current, and resistance, the KEW 1110 may offer capacitance and decibel (dB) measurement capabilities.

Kyoritsu KEW 1109S  Specifications

• DC V:0.1/0.5/2.5/10/50/250/1000V,±3% of FS (20kΩ/V)
• AC V:10/50/250/1000V (9kΩ/V),±3% of FS
• DC A:50µA/2.5/25/250mA,±3% of FS
• Ω:2/20kΩ/2/20MΩ,±3% of scale length
• Decibel:-10 – +62dB
• hFE:0 – 1000 (Ω × 10) ±3% of scale length
