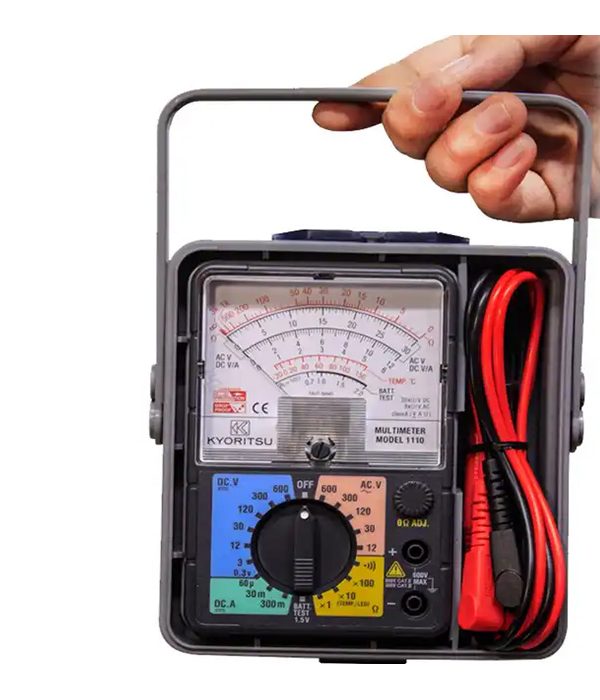

Kyoritsu Analogue Multimeters MODEL 1110

Kyoritsu hand multimeter model 1110 KYORITSU. An analog multimeter is one of the most important and practical devices in the field of electricity and electronics, by which electrical and electronics technicians measure electrical quantities. In general, a multimeter includes features such as measuring voltage, current and electrical resistance

Kyoritsu 1110 vs Kyoritsu 3010

The Kyoritsu 1110 is a basic and compact multimeter with essential measurement capabilities, while the Kyoritsu 3010 offers voltage, current, and electrical resistance measurement functions, and additional features for enhanced functionality. The choice between the two would depend on the specific requirements of your electrical testing needs and the level of functionality you require.

Kyoritsu Analogue Multimeters MODEL 1110 Specifications

• DC V:0.3V (16.7kΩ/V) ±3% of FS,3/12/30/120/300/600V (20kΩ/V),±3% of FS
• AC V:12V (9kΩ/V) ±4% of FS,30/120/300/600V (9kΩ/V),±3% of FS
• DC A:60µA/30/300mA,±3% of FS
• Ω:3/30/300kΩ,±3% of scale length
• Battery Test:1.5V (0.7 – 2V),±3% of FS (10Ω load)
• Temperature:Note: The MODEL1110 includes a temperature measurement scale,
  but it is not available for new customers due to the discontinuation of the Temperature Probe 7060.
• LED:10mA approx. at 0 Ω(at 3V of battery voltage)
• Applicable standards: IEC 61010-1
  CAT III 300V Pollution Degree 2
  CAT II 600V Pollution Degree 2
  IEC 61010-2-031
• Power source:R6 (AA) (1.5V) × 2
• Included Accessories:7066A (Test leads),8923 (F500mA/600V fuse) × 2,9103 (Carrying case),R6 (AA) × 2,Instruction Manual
