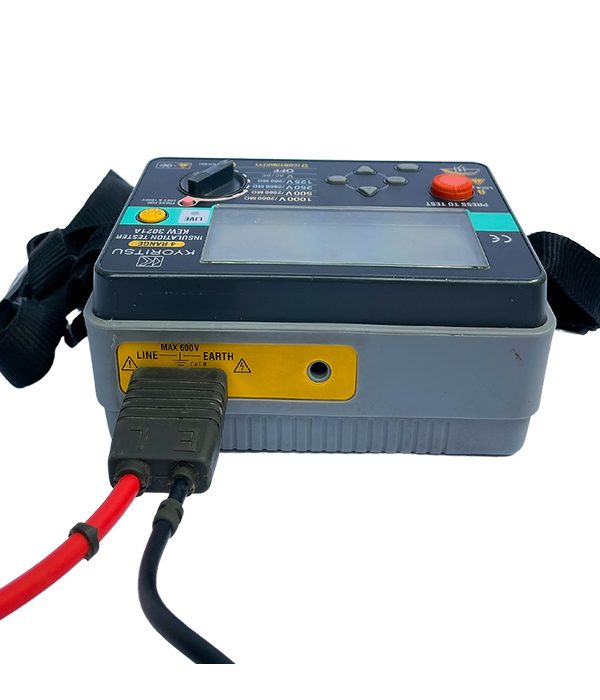

Kyoritsu Digital Insulation / Continuity Tester kew 3021A

kew 3021a kyoritsu Offers 4 voltage ranges of 125, 250, 500, and 1000V and is used as a continuity tester for AC voltage measurement. This multifunction digital insulation tester also delivers fast test results, 2.5 times faster than its preceding models.

to download kyoritsu 3125a insulation tester manual click on manual tab. to buy 3021a kyoritsu kew or insulation resistance Ωcontinuity ac voltage price please contact us. similar products are kyoritsu 3023a, KEW 3552, KEW 3551

Pack Kyoritsu kew 3021A Powerful Digital Insulation

Kew 3021A digital insulation continuity Features

• Fast response and quick insulation test.
• 3 functions in one unit, insulation test with 4 voltage ranges, continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0Ω adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
•  Safety standard IEC 61010-01 CAT III 600V

Kyoritsu kew 3021A Powerful Digital Insulation and Continuity Tester

more information about kyoritsu kew 3021

to buy kyoritsu digital insulation tester or kyoritsu insulation continuity tester price visit mme electronics website.

3021a insulation continuity tester Specifications:

• Test voltage:125/250/500/1000V
• Measuring range<br>(Auto range):4.000/40.00/200.0MΩ(125V),4.000/40.00/400.0/2000MΩ(250/500/1000V)
• Mid-scale value:5MΩ (125/250V),50MΩ (500V/1000V)
• First effective measuring range:0.2 – 20MΩ (125V),0.2 – 40MΩ (250V),0.2 – 200MΩ (500V),0.2 – 1000MΩ (1000V)
• Accuracy:±2%rdg±6dgt
• Second effective measuring range lower:0.110 – 0.199MΩ
• Second effective measuring range upper:20.01 – 200.0MΩ (125V),40.01 – 2000MΩ (250V),200.1 – 2000MΩ (500V),1001 – 2000MΩ (1000V)
• Accuracy:±5%rdg±6dgt
• Rated current: DC 1 – 1.2mA
• Output short circuit current:1.5mA max
• Applicable standards:IEC 61010-1 CAT III 600V, IEC 61557-1,2,4, IEC 61326-1 (EMC),
  IEC 60529 (IP40)
• Power source:R6 × 6 or LR6 × 6
• Dimensions / Weight:105(L) × 158(W) × 70(D)mm / 600g approx.
• Included Accessories:7150A (Remote control switch set),9121 (Shoulder strap), R6 (AA) × 6, Instruction Manual
• Optional Accessories:8923 (Fuse [0.5A/600V]), 9089 (Carrying Case)
