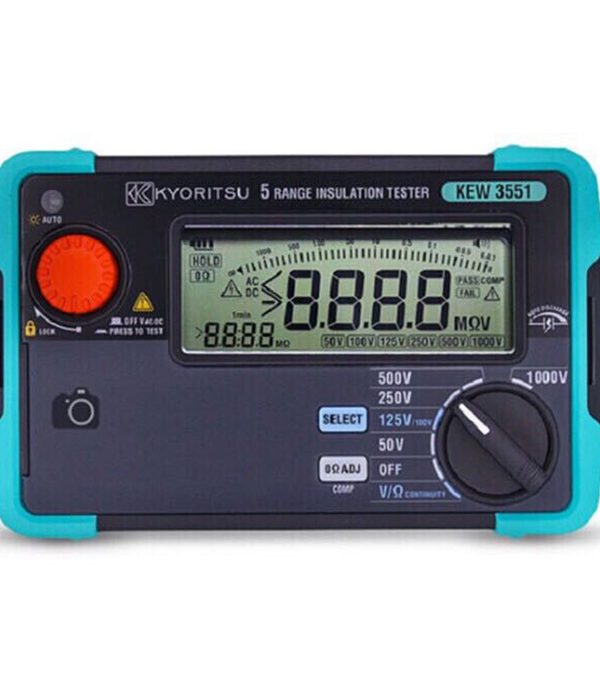

Kyoritsu Digital Insulation / Continuity Testers KEW 3551

Kyoritsu Kew 3551 Digital Insulation and Continuity Testers is a premium quality product from Kyoritsu. Moglix is a well-known ecommerce platform for qualitative range of Insulation Testers. All Kyoritsu Kew 3551 Digital Insulation and Continuity Testers are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Kyoritsu Kew 3551 Digital Insulation and Continuity Testers, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Kyoritsu products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Kyoritsu Insulation Testers .

Kyoritsu Digital Insulation / Continuity Testers KEW 3551 Specifications

• Auto range : 40.00/400.0/4000Ω
• Accuracy : ±2.5%rdg ±8dgt
• Output voltage on open circuit : 5V（4~6.9V）
• Output short circuit current : 200mA max
• Voltage range : AC 2.0~600V（45~65Hz）
  DC -2.0~-600V +2.0~+600V
• Accuracy : ±1%rdg ±4dgt
• Applicable standards : IEC61010 CATⅢ 600V/CAT IV 300V
  IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529（IP40）
• Power source : LR6/R6（AA）（1.5V）x4
• Dimensions / Weight : 97(L) x 156(W) x 46(D) mm / 490g approx（including battery）
