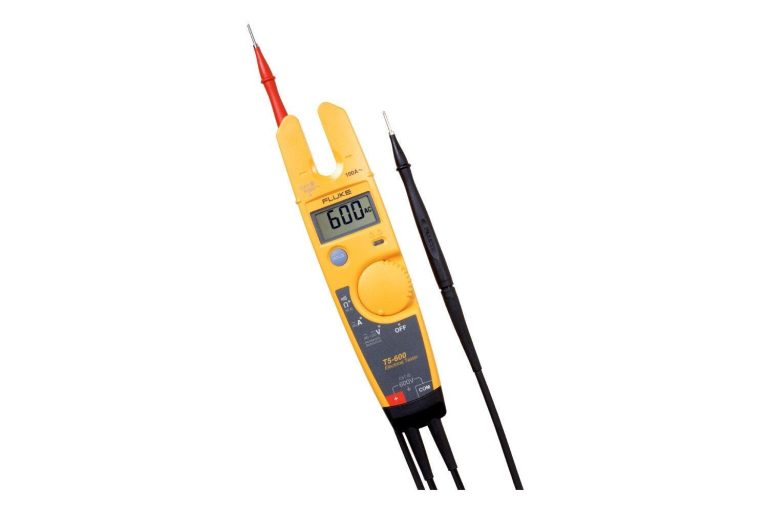

Fluke T5-600 Electrical Tester

The Fluke T5-600 Electrical Tester is a versatile troubleshooting tool you can carry to every job site. Use it to check voltage, continuity, and current, all with one compact, rugged tool. Just select volts, ohms, or current and the tester does the rest. For higher voltage applications check out the Fluke T5-1000.

The trendsetting OpenJaw™ design allows for fast and easy current measurement, safely and without metallic contact with a live conductor. The integrated protection circuit allows it to stay connected to a voltage source longer than a solenoid tester would be able to.

Fluke T5 600 is perfect for troubleshooting and maintaining electrical systems and equipment because it can measure AC and DC voltage, current, and resistance.

Checking voltage is faster and easier than ever. Simply turn the knob to voltage (V) and place your leads on the test points. The Fluke T5-600 automatically selects AC or DC voltage, depending on what is detected. This meter is suitable for residential or commercial applications and is designed for your safety with a CAT III 600V rating.

The Fluke T5 Series Introduction

To get more information please contact us mme.

Fluke  T5-600 USA  is also designed to:

• Withstand a 10 ft. (3 m) drop
• Conserve battery life with auto-off mode
• Fit in one hand with handy probe storage in the back of the holster
• Accept Fluke accessory test clips with the test leads
• Measure current up to 100 A without breaking the circuit
• The meter automatically selects AC or DC voltage, up to 600 V
• Resistance measurements up to 1000 Ω plus continuity test

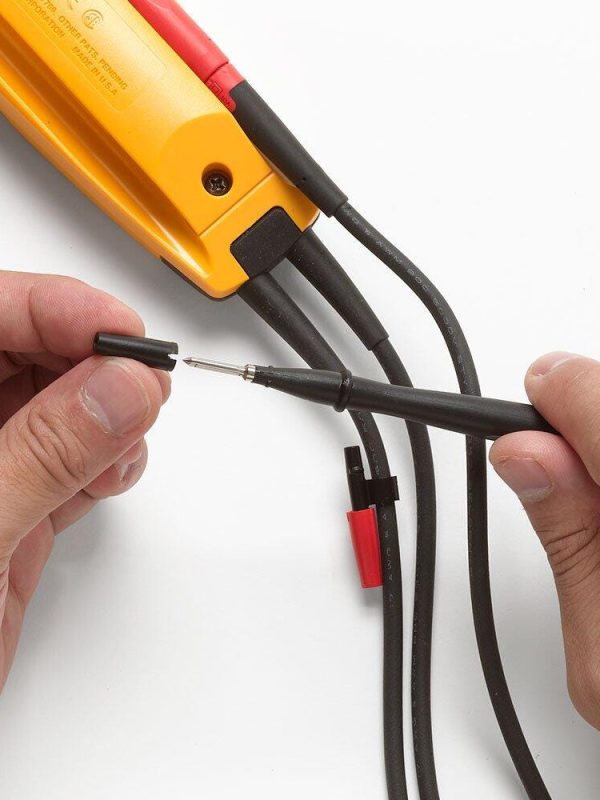

• Work in tight spaces with detachable SlimReach™ probe tips

T5-600 Benefits

• The meter automatically selects AC or DC voltage for tests up to 600 V
• Voltage tests are faster and easier than ever before. Just turn the knob to voltage (V) and place your leads on the test points. The T5-600 auto-selects either AC or DC voltage, depending on what is detected.
• This meter is suitable for both residential and commercial applications and is designed to keep you safe with a CAT III 600 V rating.

Fluke T5-600 Electrical Tester specifications:

• Jaw opening:12.9 mm (0.5 in)
• Max wire size:1/0 THHN Cable
• Current range AC rms:0 to 100.0 A
• Accuracy AC current (50/60 Hz):3% ± 3 counts
• AC response: Averaging
• Voltage range AC/DC:0 to 600 V
• Resistance range:0 to 1000 Ω
• Continuity beeper threshold: On at < 25 Ω, off at > 400 Ω
• Volts indicator LED threshold: Guaranteed on by 30 V AC

Fluke T5 600 USA Accessories

• Fluke TLK291 Fused Test Probe Set
• Fluke AC285 SureGrip™ Alligator Clips
• Fluke TP1 Slim Reach Test Probes
• Fluke TP2 Slim Reach Test Probes
• Fluke TP4 Slim Reach Test Probes
