Fluke 705 Loop Calibrator

The Fluke 705 is a cost-effective, integrated solution for calibrating, repairing, and maintaining milliamp loops. It has a large screen and a simple user interface with buttons for easy operation. It also provides the other features you need most to calibrate your mA loops including:

• mA sourcing, simulation, and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24-volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 – 20 mA or 4 – 20 mA default start-up modes
• Comes with a protective yellow holster with test lead storage and a three-year warranty

And you get all of that in a compact case with a separate protective holster and a three-year warranty

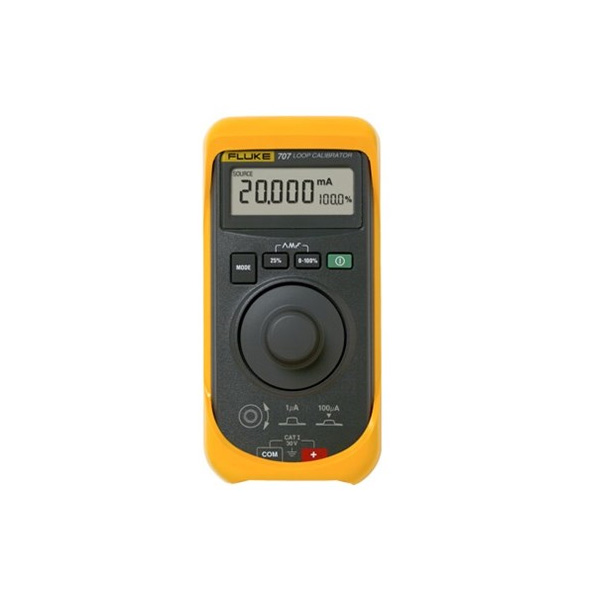

fluke 705 vs 707

The Fluke 705 and Flue 707 both provide similar functionality. The only difference is the physical size, which is a matter of preference. The 705 measures 2.5 x 2.25 x 2 inches and weighs 0.3 lbs while the 707 measures 3 x 3 x 3 inches and weighs slightly more at 0.6 lbs. You can check Fluke 705 price from our website.

fluke 705 loop calibrator manual pdf

you can download the Fluke 705 pdf from here from the Fluke site directly or download the Fluke 705 datasheet and find more information about it from the Fluke 705 adjustment on the manual tab on our website.

how to use fluke 705 loop calibrator

The Fluke 705 is a cost-effective, integrated solution for calibrating, repairing, and maintaining milliamp loops. It has a large screen and a simple user interface with buttons for easy operation. It also provides the other features you need most for calibrating mA loops,  To test a transmitter in this mode:

• turn on the loop power
• select the mA measurement.
• Disconnect the transmitter from the loop and connect the test leads to the transmitter power terminals. Be careful when connecting them with the Correct polarity (black to negative, red to positive).

What does a loop calibrator do?

Loop calibrators are capable of measuring current, supplying current to non-loop-powered devices, and simulating 4-20mA loop powered transmitters. Loop calibrators are a type of electrical calibrators specifically designed for troubleshooting 4-20mA current loops.

other products

You can check our other products like Fluke 709 , fluke loop calibrator 707 , Precision mA Loop Calibrator on our website. For more information on fluke 705 loop calibrator price, please contact our experts

About us

M.M ELECTRONICS TRADERS CO. (L.L.C) established in 2021 as a reliable business partner, aiming to equally meet the clients’ and collaborators’ expectations at the highest standards across diversified sectors such as trade, industry and services.

M.M ELECTRONICS TRADERS CO. (L.L.C) has its eye on the future, for the increasingly demand of equipment in the region. Our goal is to go regional & international, to give quality product services that puts our team to be experts to work with you.

Fluke 705 Loop Calibrator Specifications:

Current measurement

• Range : 0 to 24 mA
• Resolution: 0.001 mA
• Accuracy: 0.02% Rdg + 2 LSD

Current sourcing

• Range : 0 to 20 mA or 4 to 20 mA
• Accuracy: 0.025% Rdg + 2 LSD
• Drive capability: 1000 Ω @ 24 mA

Current simulation

• Range : 0 to 20 mA or 4 to 20 mA
• Accuracy: 0.025% Rdg + 2 LSD
• Ext. loop voltage requirement: 12-30 V
• Loop power: While measuring mA, 24 V

Voltage measurement

• Range : 0 to 28 V DC
• Resolution: 1 mV
• Accuracy: 0.025% Rdg + 2 LSD
• Mechanical and General Specifications
• Size : 152 x 70 x 41 mm
• Weight: 340 g
• Batteries: One 9 V battery
• Warranty: Three years
• Shock and vibration: per MIL-T-28800 for a Class 2 Instrument
• Display current and % of span: Yes
• Auto step, auto ramp: Yes
• Spam check: Yes

Accessories

• Fluke TLK-220 US SureGrip™ Industrial Test Lead
• Fluke AC220 SureGrip™ Alligator Clips
• Fluke AC280 SureGrip™ Hook Clips
• Fluke AC283 SureGrip™ Pincer Clips
• Fluke PV350 Pressure Vacuum Module
• Fluke 80T-150UA Universal Temperature Probe
