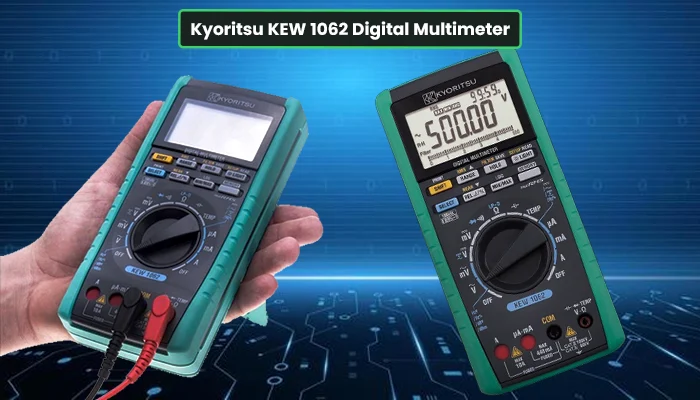

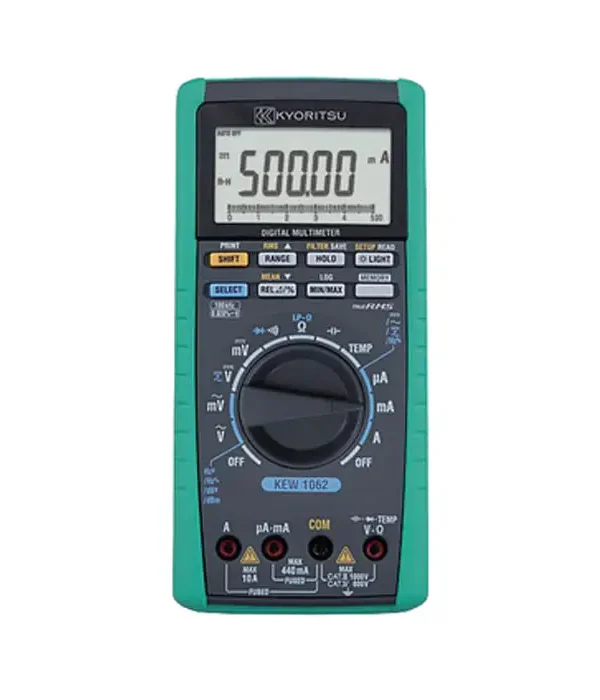

KEW 1062 Kyoritsu Digital Multimeters KEW 1062

The Kyoritsu KEW 1062 digital multimeter is a highly accurate and reliable digital multimeter used in a wide range of applications including electronic testing and research.

Advantages of the Kyoritsu KEW 1062 digital multimeter:

High accuracy

One of the most important advantages of the Kyoritsu KEW digital multimeter is its high accuracy. It offers a basic accuracy of 0.05%, which enables precise and reliable measurements.

LARGE DISPLAY

Kyoritsu KEW digital multimeters feature a large 3.5-inch display that offers a clear and detailed view of readings and measurements. This simplifies data analysis and interpretation.

Multiple Measurement Functions

The digital multimeter offers a range of measurement functions including voltage, current, resistance, capacitance, and frequency. This makes it suitable for a wide range of applications.

Data Logging Function

Kyoritsu KEW digital multimeters are equipped with a data logging function that allows users to store and analyze measurement data over a long period of time. This feature is useful for monitoring changes and trends in electrical systems.

Can I log data into Kyoritsu KEW digital multimeter?

Yes, the digital multimeter has a built-in memory function that allows users to store up to 100 sets of data. What is the maximum sampling rate of Kyoritsu KEW digital multimeters? The maximum sampling rate of the digital multimeter is 2.5 times per second.

Kyoritsu 1062 price

Looking to buy kyoritsu multimeters in Dubai? You can find it on the MME-AE website. Obtain this multifunctional instrument. MME-AE provides an easy platform for purchasing the kyoritsu 1062 multimeter whether you are in Dubai or elsewhere. Don’t pass up this strong instrument for electrical measurement.

You can also contact our experts at MMElectronics to know the price of other Fluke multimeters such as the Fluke 179 True-RMS Digital Multimeter.

Kyoritsu Digital Multimeters KEW-1062 Specifications

• DC V / AC V : 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
• DC /AC  A : 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
• Ω : 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ
• Continuity buzzer: 500.0Ω (The buzzer turns on for resistances lower than 100±50Ω)
• Diode test : 2.4000V ±1%rdg±2dgt
• Capacitance : 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF
• Frequency: 2.000 – 9.999/9.00 – 99.99/90.0 – 999.9Hz/0.900 – 9.999/9.00 – 99.99kHz
• DUTY: 10 – 90% ±1%rdg
• Temperature : -200 – 1372ºC ±1%rdg±1.5ºC
• Applicable standards: IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2,
• Power source: R6 (1.5V)×4 (Auto power off approx. 20 minutes)
• Dimensions : 192(L)×90(W)×49(D) mm
• Weight: Approx. 560g (including batteries)

Related Products

• Kew 1061 shares similarities with the kyoritsu 1062 and offers a range of measurement functions. The kyoritsu 1061 can measure AC/DC voltage, resistance, continuity, and diode testing.
• KEW 1109S  is also a related product to the 1062 and provides similar measurement capabilities. The KEW 1109S is a versatile electrical tester that can measure AC/DC voltage, resistance, continuity, and diode testing.
• we can name other products like kew 1052, Kew 1051, and Kew 1020r you can search for these products on our site.
