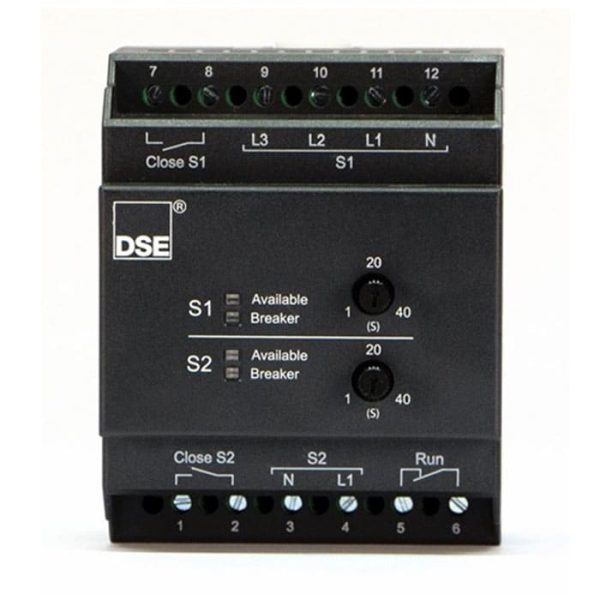

Buy DEEPSEA DSE327 Control Module

The Deepsea electronic DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources.
This could be from both generators or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2). Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2.

DEEPSEA DSE327 Control Module specifications:

• START/RUN N/C 5 A, 250 V AC
• LOADING OUTPUT x2 5 A, 250 V AC
• OVERALL SIZE: 72mm x 90.5 mm x 65 mm/2.8” x 3.6” x 2.6”
• WEIGHT 0.3 kg
• OPERATING TEMPERATURE RANGE: -30°C to +70°C
• STORAGE TEMPERATURE RANGE: -40°C to +80°C
• START/RUN N/C: 5 A, 250 V AC
• LOADING OUTPUT x2: 5 A, 250 V AC
• PRODUCT VARIANTS:
  0327-01 – 327 Auto Transfer Switch Control Module (230 Volt)
  0327-02 – 327 Auto Transfer Switch Control Module (110 Volt)
  0327-03 – 327 Auto Transfer Switch Control Module (230 Volt – 10 Second Delay)
