Name: DEEPSEA DSE160 Best Power Supply Ever! - mme-ae
Brand: Deep Sea
SKU: 7876

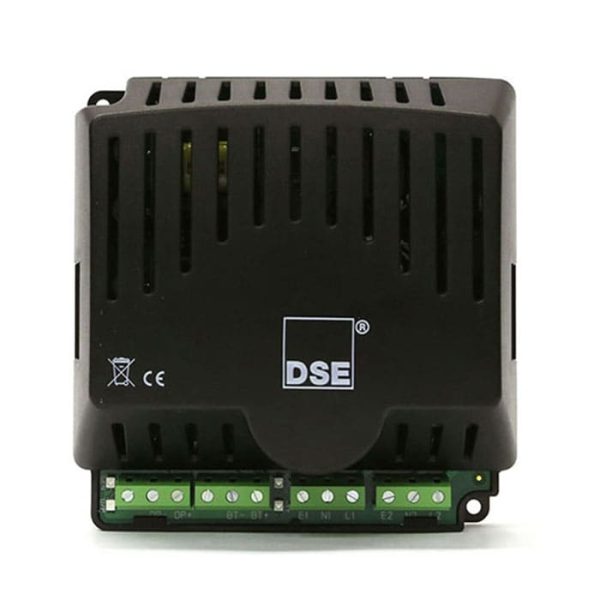

DEEPSEA DSE160 Power Supply

The DSE160 is a self-seeking power supply designed to work with DSE300 Series Auto Transfer Switch Controllers. The module can be supplied from mains (utility), generator or battery and provides a power supply output for ATS controllers. The module will provide DC power to the modules and when the mains/utility power is lost, it will automatically switch to providing power from either the generator or battery.

DEEPSEA DSE160 Power Supply specifications:

VOLTAGE RANGE: 90 V to 305 V (L-N)
FREQUENCY RANGE: 48 Hz to 64 Hz (L-N)
CURRENT LIMIT: 1.5 A DC
RISE TIME: <20 ms
RIPPLE AND NOISE: <1%
EFFICIENCY: >80%
OVERALL: 136 mm x 140 mm x 63 mm (5.4” x 5.5” x 2.5”)
WEIGHT: 0.4kg
PRODUCT VARIANTS:
0160-00 – 12 Volt Self Seeking Power Supply (110v-277v 50.60Hz)
0160-01 – 24 Volt Self Seeking Power Supply (110v-277v 50/60Hz)
LINE: <0.1% Vo
LOAD: <5% Vo
PROTECTIONS:
Short Circuit
Over Current
Reverse Polarity
KEY BENEFITS: Provides application flexibility
KEY BENEFITS: Compact size ensures the product does not take up too much space inside the panel.
