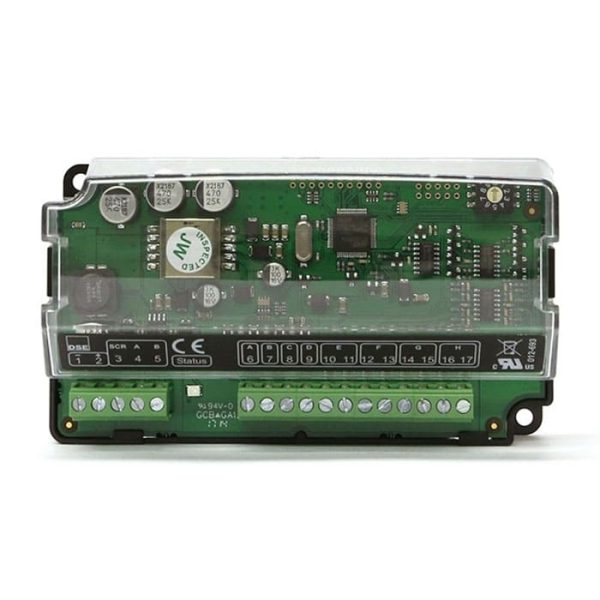

DEEPSEA DSE2130 Professional Control Module

The DSE2130 is an input expansion module for use with DSENet® compatible control modules. The additional input capabilities of the DSE2130 give OEMs the flexibility to meet increasingly complex industry specifications. The DSE2130 provides an additional eight digital inputs, with four of these configurable for use as analogue inputs. All inputs are configured within the host controller

DEEPSEA DSE2130 Control Module specifications:

CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT: 200 mA at 12 V, 100 mA at 24 V
MAXIMUM STANDBY CURRENT: 120 mA at 12 V, 60 mA at 24 V
OVERALL SIZE:134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”)
WEIGHT: 0.18kg
PRODUCT VARIANTS: 2130-00 – 2130 Input Expansion Module
CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
