CEM DT-156 Coating Thickness Tester
The CEM DT-156 Coating Thickness Tester is an instrument designed to accurately measure the thickness of coatings on both ferrous and non-ferrous metals.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price

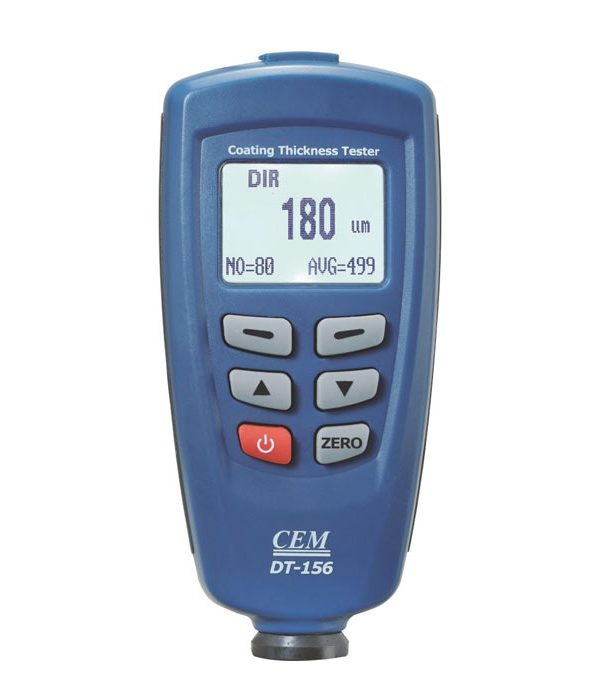

CEM DT-156 Coating Thickness Tester
The CEM DT-156 Coating Thickness Tester is an instrument designed to accurately measure the thickness of coatings on both ferrous and non-ferrous metals. This tool is essential for professionals in industries such as automotive, marine, aerospace, and construction, where accurate coating measurements are critical for quality control and maintenance. It can measure coatings on both magnetic (ferrous) and non-magnetic (non-ferrous) metals, which makes it versatile for various industrial applications.
CEM DT-156 Key Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Menu operation system
- Two measuring modes: CONTINUE and SINGLE mode
- Two working modes: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One point calibration, two points calibration and basic calibration easily
- Memory for 400 readings (80 DIRECT and 320 GROUP readings)
- USB interface for PC software
CEM DT-156Â Specifications
Specifications | DT-156 | DT-156H | ||
Sensor probe | F | N | F | N |
Working principle | magnetic induction | Eddy current principle | magnetic induction | Eddy current principle |
Measuring range | 0~1250um | 0~1250um | 0~1350um | 0~1350um |
Guaranteed tolerance (of reading) | (+/- 3%+1)um | (+/- 3%+1.5)um | (+/- 2.5%+2)um | (+/- 2.5%+2)um |
Repeatability | (+/- 1%+1)um | (+/- 1%+1)um | (+/- 1%+1)um | (+/- 1%+1)um |
Low range Precision | 0.1um | 0.1um | 0.1um | 0.1um |
Minimum curvature radius | 1.5mm | 3mm | 1.5mm | 3mm |
Diameter of Minimum area | 7mm | 5mm | 7mm | 5mm |
Basic critical thickness | 0.5mm | 0.3mm | 0.5mm | 0.3mm |
You must be logged in to post a review.
Brand
Cem
CEM Corporation Overview
CEM Corporation, founded in 1978, is renowned for its pioneering contributions to scientific instrumentation with a focus on microwave-based technology for laboratory and research applications. The founders—Dr. Michael J. Collins (Chemist), Ronald Goetchius (Electrical Engineer), and Bill Cruse Jr. (Mechanical Engineer)—launched the company with a novel concept for microwave drying that significantly expedited moisture and solids analysis processes from hours down to minutes, which was a groundbreaking improvement at the time.Product Innovation and Evolution
Over the years, CEM Corporation has expanded its product offerings beyond its original microwave moisture/solids analysis systems. Their portfolio now includes systems for:- Acid digestion for elemental analysis
- Compositional testing of food products
- Peptide and chemical synthesis
