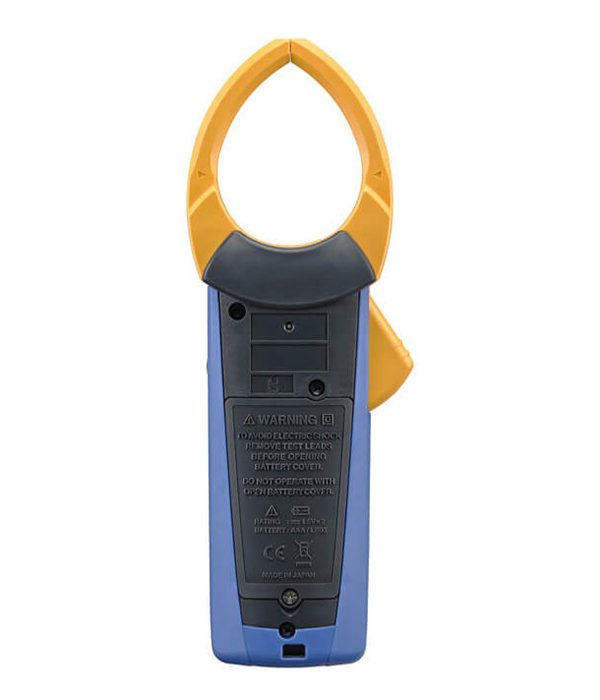

CM4141 HIOKI AC CLAMP METER

Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4141 is a 2000 A AC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter.

The broad -25°C to 65°C operating temperature range and IP50 dustproof and waterproof enclosure enable professionals to work quickly in crowded electrical distribution panels. The high current measurement capability makes it especially useful for industrial applications.

Hioki cm 4141

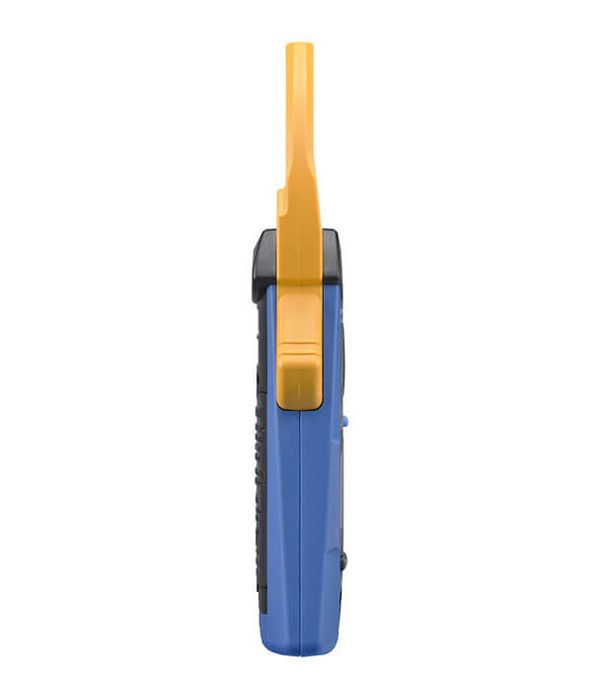

Despite the ability to measure up to 2000A AC offered by the large φ55mm core diameter sensor, the innovative jaw design allows you to move between the tight spaces between crowded cables with absolute ease. Also, sometimes circuit boards are so cluttered that you have to push and pull the clamp to get it around the wire.

The Hioki CM4141 features a rugged construction that provides strength and allows you to traverse complex cables to get to the right wire, greatly improving work speed and efficiency. Compared to clamp meters of a similar class, the meter weighs just 300g, making it at least 100g lighter than the competition, allowing you to use the instrument on long workdays with much less physical exertion and strain.

Key Features

• Easily get into tight spaces between cables thanks to the thin sensor with a minimum cross-section span of 11 mm
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file
• Harmonic analysis from 1st to 30th order with GENNECT Cross
• Measure up to 2000 A AC

Hioki cm 4141 datasheet

You can download this datasheet directly from our site. For more information on the cm 4141 price, please contact our experts.

other products

You can check our other products like Hioki cm4141-50, Testo 770-1, Hioki cm4373, Hioki cm3291, and cm4371-50 on our website.

AC CLAMP METER CM4141 Specification:

• AC Current: 60.00 A to 2000 A/accuracy 45-66 Hz: ±1.5% rdg
• DC Voltage: 600.0 mV to 1700 V / accuracy: ±0.5% rdg
• AC Voltage: 6.000 V to 1000 V / accuracy 45-66 Hz: ±0.9% rdg
• DC+AC Voltage: 6.000 V to 1000 V / accuracy DC, 45-66 Hz: ±1.0% rdg
• Resistance: 600.0 Ω to 600.0 kΩ / accuracy: ±0.7% rdg
• Electrostatic capacity: 1.000 μF to 1000 μF / accuracy: ±1.9% rdg
• Frequency: Voltage: 9.999 Hz to 999.9 Hz / Current: 99.99 Hz to 999.9 Hz
• Temperature (K): -40.0 to 400.0 ˚C / accuracy: ±0.5% rdg
• Power supply: LR03 Alkaline battery ×2
• Dimensions and mass: 65 mm (2.56 in) W × 247 mm (9.72 in) H × 35 mm (1.38 in) D, 300 g
