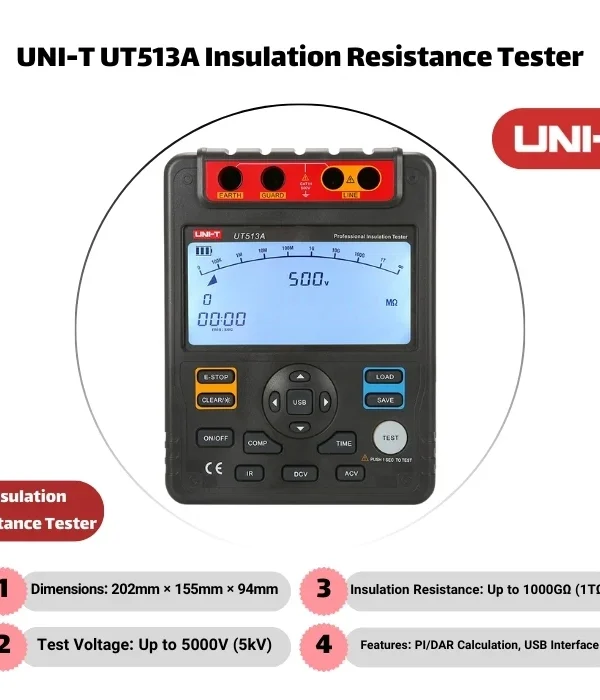

UNI-T UT513A Insulation Resistance Tester

The UNI-T UT513A Insulation Resistance Tester, available on the mme.ae website, is a versatile and high-performance device designed for measuring insulation resistance in a wide range of values. With its advanced features and accurate measurements, this tester is essential for electrical maintenance, industrial settings, and quality control professionals. In this article, we will explore the key features and capabilities of the UT513A Insulation Resistance Tester and how it can enhance safety and reliability in electrical systems.

Accurate Insulation Resistance Measurement

The UNI-T UT513A Insulation Resistance Tester by UNI-T offers precise measurements across a wide range of insulation resistances. With selectable test voltages of 500 V, 1000 V, 2500 V, and 5000 V, this tester can accurately measure insulation resistances from 1 MΩ to 1000 GΩ. Whether working on low-voltage installations or high-voltage equipment, the UT513A provides the flexibility to handle diverse applications. Its digital display, numerical readings, and analogue bar graph allow for easy interpretation of test results, enabling you to identify potential insulation issues promptly.

Advanced Features for Efficient Testing

The UNI-T UT513A Insulation Resistance Tester is equipped with a range of advanced features that enhance efficiency and convenience during testing. It features auto ranging, allowing the tester to select the appropriate measurement range for accurate results automatically. The auto power-off function conserves battery life, ensuring the tester is always ready for use. The tester also offers data logging capabilities, allowing you to store and analyze test data for future reference and comparison. Additional features such as polarization index, dielectric absorption, LCD backlit display, and over-range warning further contribute to a comprehensive testing experience.

User-Friendly Design and Accessories

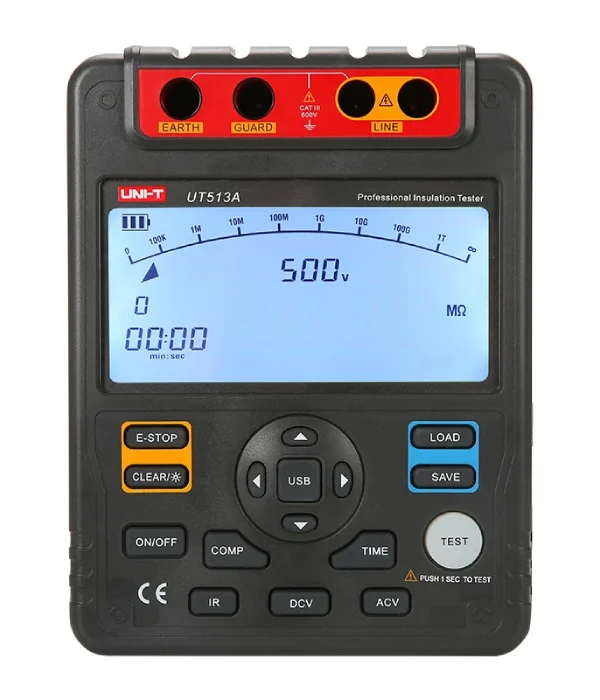

The UNI-T UT513A is designed with the user in mind. Its compact size and ergonomic design make it comfortable to hold and operate for extended periods. The large backlit LCD screen ensures clear visibility even in low-light environments, facilitating easy reading of measurement results. The tester is compliant with safety standards, including CAT III 600V, EN 61010-1, and EN 61326-1, ensuring reliable and secure testing. The package includes essential accessories such as test leads with alligator clips, two plugs test lead, batteries, USB cable, power adapter, software CD, and a user manual, providing everything you need to start testing right away.

UNI-T UT513A Insulation Resistance Tester Specifications:

• Test voltages:
  100V~1000V
  500V~2500V
  500V~5000V
• Insulation resistance (Ω):
  100V -> 0.1MΩ~500MΩ
  250V -> 0.5MΩ~2GΩ
  500V -> 1MΩ~4GΩ , 0.5MΩ~5GΩ, 0.5MΩ~20GΩ
  1000V -> 2MΩ~10GΩ, 1MΩ~40GΩ
  1500V -> 5MΩ~20GΩ
  2500V -> 2.5MΩ~100GΩ, 10MΩ~100GΩ
  5000V -> 5MΩ~1000GΩ
• DC voltage (V): 1000V, 600V
• AC voltage (V): 750V, 600V
• Short-circuit current: >3mA
• Low resistance (Ω): 0.1Ω~999.9Ω
• Auto range/Auto power off
• Test voltage secondary display
• Data storage: 18

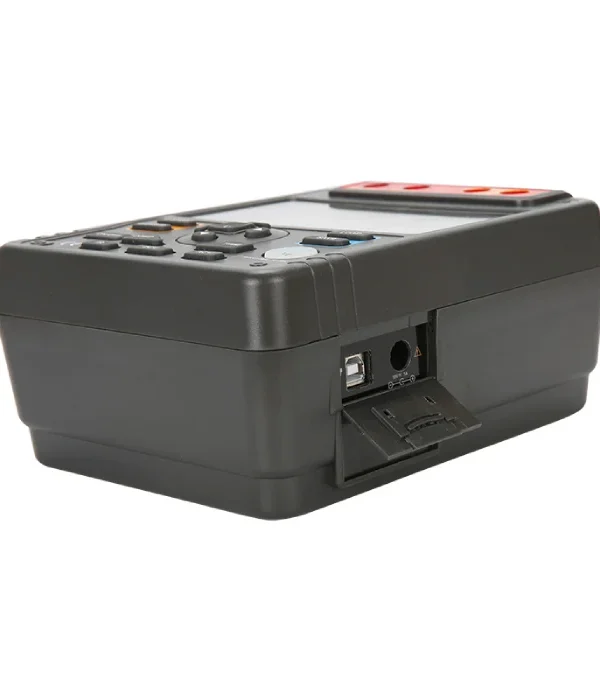

• USB interface
• Analog bar graph: 30
• Timing measurement: Around 15 minutes
• Meets IEC 61557: 61557-1:2007; 61557-2:2007
• Power: 1.5V battery (LR14) x 8
• Display: 123mm x 58mm
• Product color: Red and grey
• Product net weight: 2kg
• Product size: 202mm x 155mm x 94mm
• Standard accessories: 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB cable, PC software CD, power adaptor
• Standard individual packing: Gift box, tool box, English manual
• Standard quantity per carton: 4pcs
• Standard carton measurement: 505mm x 345mm x 345mm
• Standard carton gross weight: 18.9kg
