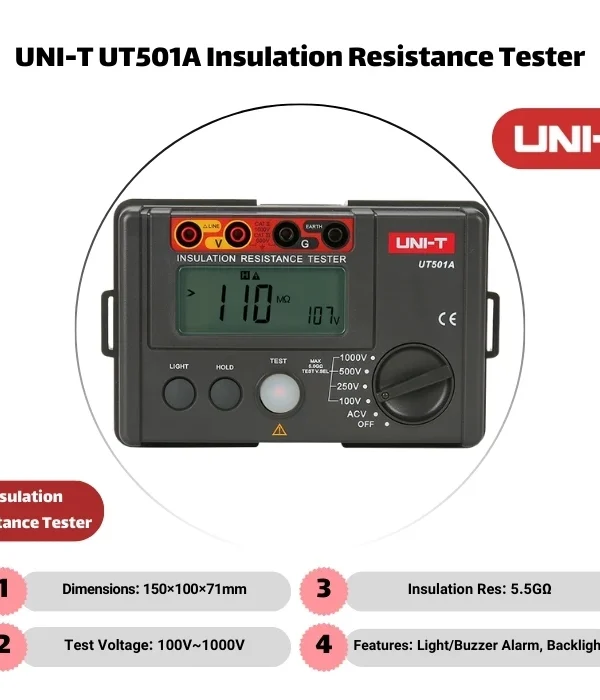

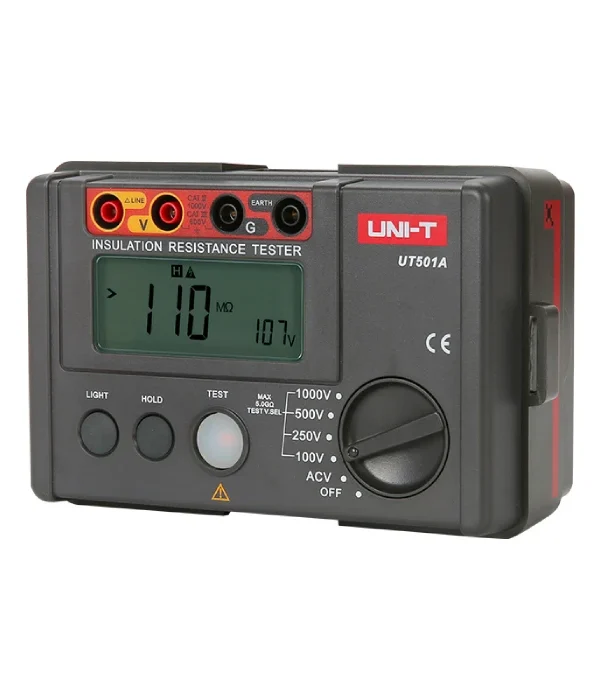

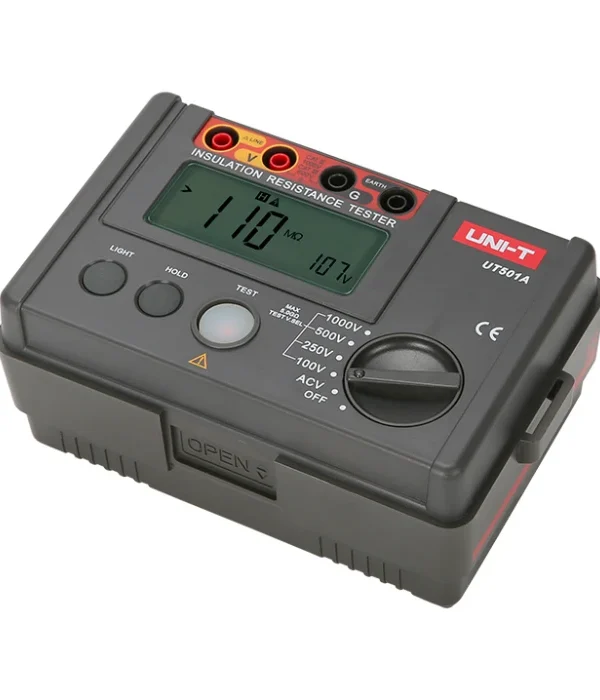

UNI-T UT501A Insulation Resistance Tester

Regarding electrical testing, the UNI-T UT501A Insulation Resistance Tester stands out as a reliable and versatile tool. With its exceptional features and capabilities, this tester caters to the needs of electrical professionals, ensuring accurate measurements and efficient testing processes. In this article, we will delve into the key aspects of the UNI-TUT501A and highlight its significance in the realm of insulation testing. To explore this exceptional device further, you can visit the mme-ae website.

A Closer Look at the UT501A Insulation Resistance Tester

The UNI-TUT501A Insulation Resistance Tester offers a comprehensive range of features that make it an invaluable asset for electrical professionals. Its adjustable test voltages of 100V, 250V, 500V, and 1000V enable accurate measurements across various applications. Equipped with a user-friendly interface and a large LCD screen, this tester provides a clear display of data. It incorporates a convenient test initiation button and a data hold function.

With its auto-ranging capability and indicators such as the low battery, alarm light, and high voltage indication, the UNI-TUT501A ensures user safety and simplifies testing. Additionally, it offers overload protection, auto discharge, and internal resistance testing to enhance efficiency and reliability. The package includes essential accessories such as batteries, probes, alligator clips, a test lead, a carrying bag, and a neck strap.

To get more information about the uni-t insulation resistance tester price UT501A be in touch with our experts.

The Versatility and Reliability of the UT501A

As a renowned test and measurement solutions provider, UNI-T has established a strong reputation in the industry. The UT501A exemplifies UNI-T’s commitment to quality and innovation, making it an indispensable tool for insulation testing. Its accuracy, adjustable test voltages, and range of features ensure that professionals can carry out their tasks with precision and confidence

UNI-T UT501A Insulation Resistance Tester Specifications:

• Insulation resistance (Ω):
  Test voltages: 100V/250V/500V/1000V
  100V: 0MΩ~100MΩ
  250V: 0MΩ~99.9MΩ, 100MΩ~5GΩ
  500V: 0MΩ~99.9MΩ, 100MΩ~5GΩ
  1000V: 0MΩ~99.9MΩ, 100MΩ~5GΩ
  Load current:
  50V: (R=50kΩ) 1mA
  100V: (R=100kΩ) 1mA
  250V: (R=250kΩ) 1mA
  500V: (R=500kΩ) 1mA
  1000V: (R=1MΩ) 1mA
• Short-circuit current: <2mA
• AC voltage (V): 30V~750V
• Display count: 2000
• DAR: 60s/15s and 60s/30s
• 10MΩ internal resistance test
• Meets IEC 61557: 61557-1:2007; 61557-2:2007; 61557-4:2007
• Power: 1.5V battery (LR6) x 6
• Display: 70.6mm x 34mm
• Product color: Red and grey
• Product net weight: 500g
• Product size: 150mm x 100mm x 71mm
• Standard accessories: Batteries, test leads, alligator clips, gallus, test probes
• Standard individual packing: Gift box, carrying bag, English manual
• Standard quantity per carton: 20pcs
• Standard carton measurement: 500mm x 380mm x 330mm (0.063 CBM per standard carton)
• Standard carton gross weight: 17.7kg
