Testo 922 Heating Constructors Promo Set

Order-Nr.  0563 9221

testo 922, a 2-channel temperature measuring instrument T/C Type K, the connection of an optional radio probe, with battery and calibration protocol

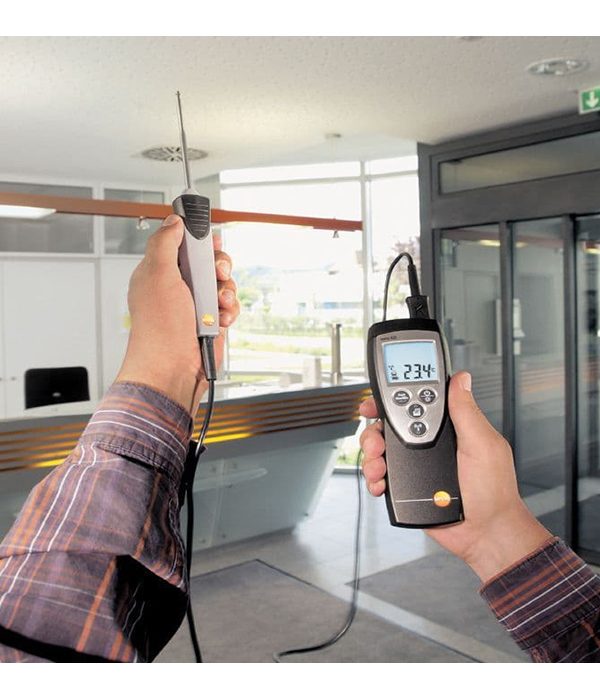

testo 922 is a temperature measuring instrument that is especially suited to applications in the HVAC field. The measuring instrument records the temperature values of two connected thermocouple probes and shows these simultaneously together with the differential temperature in the display. Measurement data transfer by radio additionally allows the measurement value from a further temperature probe to be displayed wirelessly.

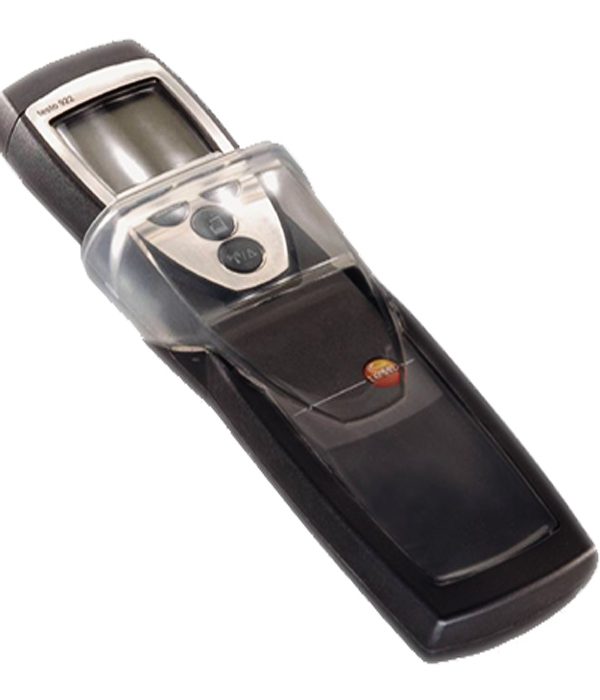

With the TopSafe, and the probe plugged in, the measuring instrument has protection class IP65.

The instrument continuously displays the minimum and maximum values. The measurement values shown in the display (current measurement value, fixed measurement value, or minimum/maximum value) can be printed out on-site using the Testo report printer (optional). In addition to this, the measurement values can be cyclically printed – the intervals can be individually set.

Testo 922 Heating Constructors Promo Set Specifications:

• Weight: 171g
• Dimensions : 182 x 64 x 40 mm
• Operating temperature: -20 to +50 °C
• Product-/housing material: ABS
• Number of channels: 2-channel
• Battery type : 9V block battery, 6F22
• Battery life: 200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)
• Measuring range: -50 to +1000 °C
• Resolution: 1 °C (Remaining Range)
