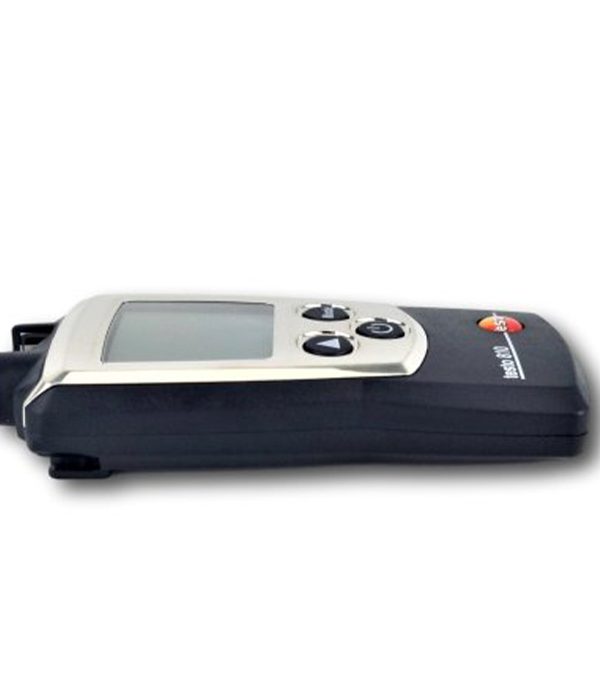

Testo 810 Infrared Thermometer

Order-Nr.  0560 0810

The Testo 810 distinguishes out in the field of temperature monitoring as a versatile and small tool that provides accuracy and simplicity to your fingertips.
The Testo 810 elevates temperature measurement by permitting simultaneous measurements of both air and surface temperatures without the requirement for direct touch. This feature makes it an excellent tool for HVAC specialists, as it simplifies chores like checking radiator temperatures and comparing them to room air temperature.

The Testo 810 is built for ease and efficiency, with its 1-point laser sighting, 6:1 optics ratio, small construction, and user-friendly interface. This pocket-sized instrument is ideal for technicians, HVAC specialists, and anybody who needs reliable temperature readings on the road. You can rely on its precision and versatility to simplify temperature measuring jobs and assist you in making educated decisions quickly and effectively.

Testo 810  features:

•  Infrared Measurement Using a 1-Point Laser Sighting and a 6:1 Optics Ratio: The Testo 810 has superior infrared technology, a 1-point laser sighting system, and a 6:1 optics ratio. This allows you to monitor temperatures without making direct touch, and the laser aids in properly pinpointing the exact location you wish to measure.
•  Differential Temperature Display: The ability to display differential temperatures is one of the Testo 810’s primary capabilities. For example, you can measure the temperature difference between the surface of a window and the air around it. This feature is quite important for identifying temperature differences, which aids in troubleshooting and decision-making.
•  Hold Function and Minimum/Maximum Values: You can freeze a measurement on the screen using the built-in hold function, ensuring that you don’t miss any essential data. Furthermore, the Testo 810 keeps note of minimum and maximum values, giving you a complete picture of temperature swings over time.
• Illumination of the Display: The Testo 810’s display lighting ensures that you can always read your measurements with ease, whether you’re working in poorly lit or brightly illuminated conditions. This function improves the instrument’s usability.

Testo 810 Infrared Thermometer Specifications:

General technical data

• Weight: 90 g (incl. battery and protective cap)
• Dimensions: 119 x 46 x 25 mm (incl. protective cap)
• Operating temperature: -10 to +50 °C
• Protection class: IP40
• Battery type: 2 AAA micro batteries
• Battery life: 50 h (average, without display illumination)

Temperature – NTC

• Measuring range: -10 to +50 °C
• Accuracy: ±0.5 °C
• Resolution: 0.1 °C
• Measuring rate: 0.5 s

Temperature – Infrared

• Measuring range: -30 to +300 °C
• Accuracy : ±2.0 °C (-30 to +100 °C) , ±2 % of mv Remaining Range
• Measuring rate: 0.5 s
• Infrared resolution: 0.1 °C
