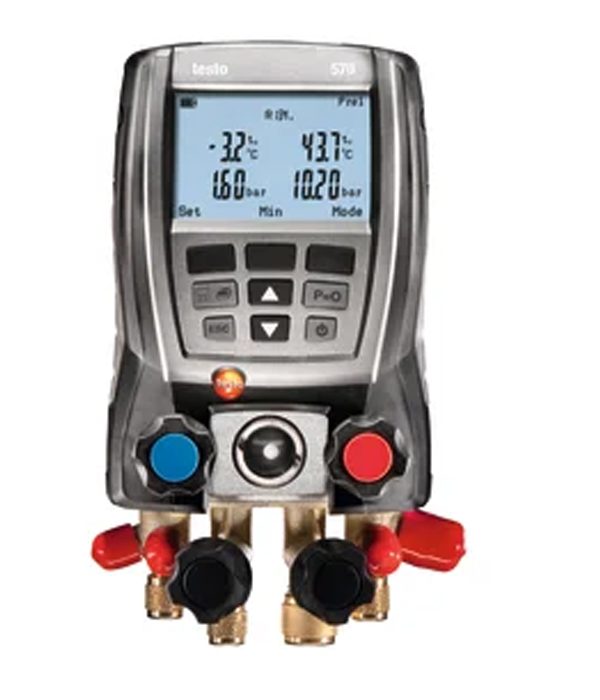

TESTO 570-1 Digital manifold Set

Order-Nr.  0563 5701

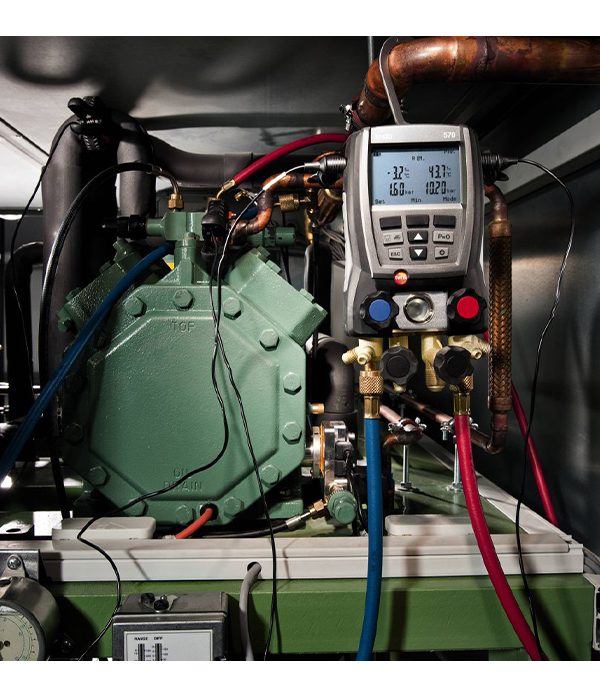

For refrigeration systems and heat pumps to function smoothly and efficiently, the pressure, temperatures and any system superheating or subcooling need to be monitored. The testo 570-1 digital manifold can record or calculate all these values and also enable temperature-compensated tightness testing. Which is why our 4-way manifold supplies you with the key information that you need for the optimum commissioning and maintenance of refrigeration systems or for error diagnosis. Complex manual comparisons and calculations (e.g. of superheating and subcooling), which would be necessary when using analog manifolds, are not needed.

TESTO 570-1 Digital manifold Set specifications :

Temperature :

• Temperature : -50 to +150 °C
• Accuracy : ±0.5 °C (±1 Digit)
• Resolution : 0.1 °C
• Probe connection : 3 x Plug-in (NTC)

Pressure measurement :

• Measuring range : 50 bar
• Accuracy : ±0.5 % fs (±1 Digit)
• Resolution : 0.01 bar / 0.1 psi
• Probe connection : 3 x 7/16″ – UNF + 1 x 5/8” – UNF
• Overload rel. (low pressure) : 52 bar
• Overload rel. (high pressure) : 52 bar
• Low pressure rel. : 50 bar
• High pressure rel. : 50 bar

Vacuum measurement :

• Measuring range : -1 to 0 bar
• Accuracy : 1 % fs
• Resolution : Resolution

General technical data :

• Weight :  1200 g
• Dimensions : 280 x 135 x 75 mm
• Operating temperature : -20 to +50 °C
• Protection class : IP42
• Product colour : grey
• Refrigerants in instrument : R12; R123; R1233zd; R1234yf; R134a; R22; R290; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422D; R424A; R427A; R434A; R437A; R438A; R448A; R449A; R450A; R452A; R455A; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
