testo 510 – Digital manometer

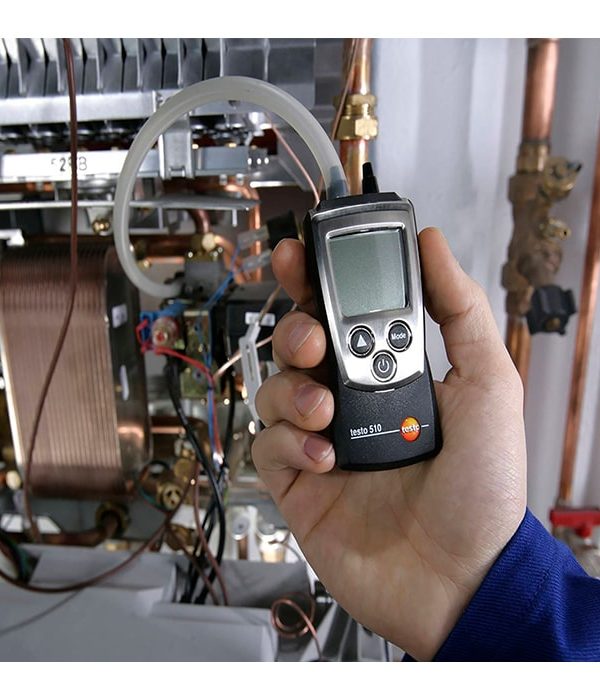

The Testo 510 digital manometer is an all-in-one, low-pressure measurement solution. The 510 can measure total external static pressure, differential pressure, duct velocities, manifold pressures, and airflow with a pitot tube (optional)

• 0-40 in. H2O pressure measurement range
• Temperature-compensated pressure sensor
• Magnetic backing for hands-free use
• Airflow measurement with optional pitot tube
• User-adjustable air density compensation
• Protective cap for safe storage

testo 510 differential pressure meter Key features :

• Pocket-sized temperature and air density-compensated differential pressure measurement
• Illuminated display

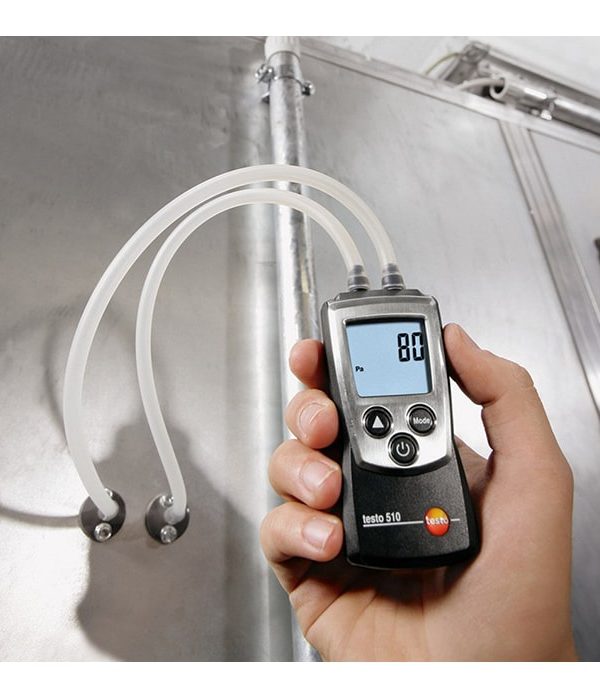

• Magnets on the rear allow hands-free work
• 50 hours of battery life
• 10 selectable units
• Flow measurement is possible with a Pitot tube

more information

In the realm of precision measurement instruments, the testo manometer 510 is a true standout. This remarkable device caters to a wide array of industries and applications, providing accurate and reliable pressure measurements with ease. Whether you’re a seasoned professional or an enthusiast with a penchant for accuracy, the Testo-510 is here to streamline your pressure measurement processes.

What is a Differential Pressure Manometer?

A differential pressure manometer, in essence, is a device used to measure the difference in pressure between two points within a system. This measurement technique finds applications in various fields, including HVAC systems, industrial processes, medical equipment, and more. The Testo510 takes this concept to the next level by offering a digital solution that enhances accuracy and ease of use.

Key Components of the Testo-510

The testo 510 pocket is ingeniously crafted to ensure intuitive operation and precise measurements. Its key components include a clear LCD screen, intuitive buttons for navigation, pressure connectors, and robust housing that guarantees durability even in demanding environments.

Technical Specifications and Data Sheet

Before delving deeper into the Testo510’s capabilities, let’s take a closer look at its technical specifications. The device boasts an impressive measuring range, a high-resolution display, and a range of units to choose from, making it a versatile tool for various applications.

Exploring the Datasheet

The Testo 510 datasheet provides intricate details about the device’s specifications, ensuring you have all the information needed to optimize its use. From pressure ranges to accuracy tolerances, the datasheet is a valuable resource for both beginners and experienced users. also to download testo 510 manometer manual click on manual tab.

testo 510 specifications :

• Dimensions : 5 x 2 x 1 in. / 119 x 46 x 25 mm
• Operating temperature : 32.0° to 122.0 °F / 0 to +50 °C
• Protection class: IP40
• Seceltable units : hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
• Maximal static pressure: 7.252 psi / 500 mbar
• Measuring rate: 0.5 sec
• Battery type: 2 AAA batteries
• Battery life: 50 h (average, without display illumination)
• Storage temperature : -40.0° to 158.0 °F / -40 to +70 °C
• Weight : 3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)
