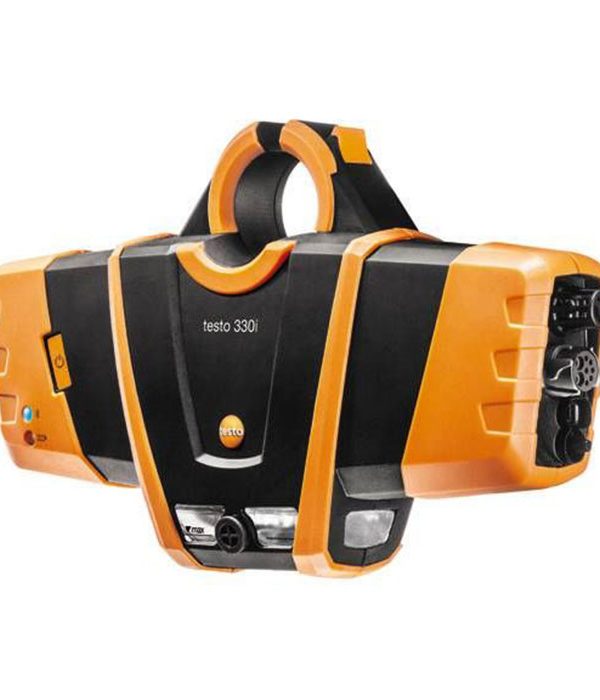

Testo 330i flue gas analyzer with NO sensor
Testo 330i flue gas analyzer with NO sensor key features:
- On-site digital creation of reports with the testo 330i App
- Operation independent of measuring location – readings are always available when you need
- testoFix probe holder (optional) – holds the probe in the centre of flow at all times
- Particularly robust, completely enclosed plastic housing
Proven technology meets revolutionary operation. The testo 330i flue gas analyzer was specifically developed to help you to overcome all the obstacles you meet when servicing and commissioning heating systems.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
AED 8,366 (excl.VAT)
10People watching this product now!
Testo 330i flue gas analyzer with NO sensor
Order-Nr. 0632 3000 72
The testo 330i flue gas analyzer is an improvement to the testo 330 LL. Its tried-and-true measuring technology is at the heart of the testo 330i once more. This implies that when measuring flue gas, draught and O2 supply air, you can rely on exceptionally accurate findings.
The testo 330i also has the following impressive features:
- User-replaceable long-life sensors with a service life of up to 6 years
- Successful TÃœV inspection according to the 1st German Federal Immission Control Ordinance (BImSchV) and EN 50379, Parts 1-3
- ntegrated draught and gas zeroing. This means that the probe does not have to be removed from the flue gas duct for the zeroing
- Fresh air dilution up to 30,000 ppm upon exceeding a CO threshold value
- NO sensor for combined heat and power plants
The new testoFix probe holder is offered as an accessory, ensuring that the flue gas probe does not lose the centre of flow after it has been located. This may be quickly and simply fastened to the pipe. It keeps the probe in the centre of the flow while simultaneously acting as a fall-proof suspension mechanism for the testo 330i flue gas analyzer. In addition, the tubing connecting the probe to the measurement device is lighter and more flexible than before.
Testo 330i flue gas analyzer with NO sensor specifications:
General technical data :
- Weight : 720 g (excluding battery)
- Dimensions : 270 x 160 x 57 mm
- Operating temperature : -5 to +45 °C
- Power supply : Rech. batt. block 3.7 V / 2.6 Ah; Mains unit 6 V / 1.2 A (optional)
- System requirements : requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Differential Pressure – Piezoresistive :
- Measuring range : 0 to 300 hPa
- Accuracy :±0.5 hPa (0.0 to +50.0 hPa)±1 % of mv (+50.1 to +100.0 hPa)±1.5 % of mv (Remaining Range)
- Resolution : 0.1 hPa
