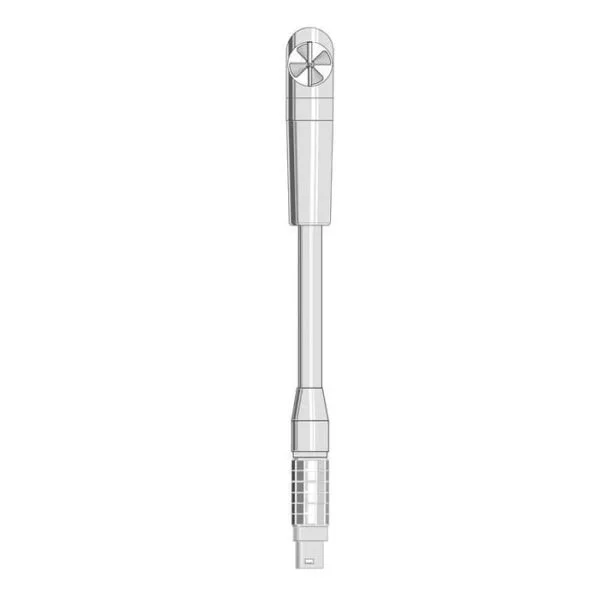

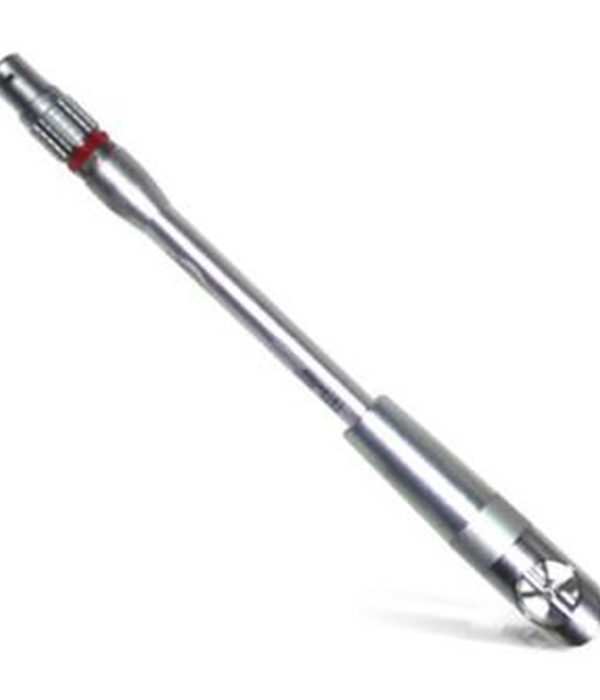

TESTO 0635 9540 Vane Temperature Probe

Order-Nr.  0635 9540

Use the 16 mm vane/temperature probe to determine flow velocity and volume flow in ventilation ducts (e.g. during the maintenance or commissioning of ventilation systems). It is particularly suitable for medium flow velocities up to +60 m/s and delivers optimum results. The vane anemometer can also measure temperatures up to +140 °C at the same time.

In addition to the appropriate measuring instrument, you also need a compatible handle (optionally available) for commissioning the probe.

TESTO 0635 9540 Vane Temperature Probe Specifications:

• General technical data
• Length: 180 mm
• Diameter: 16 mm
• Temperature – TC Type K (NiCr-Ni)
• Measuring range: -30 to +140 °C
• Accuracy: Class 1
• Velocity / Volume flow
• Measuring range: +0.6 to +60 m/s
• Accuracy : ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s) ±(0.2 m/s + 2 % of mv) (+40.1 to +50 m/s)
