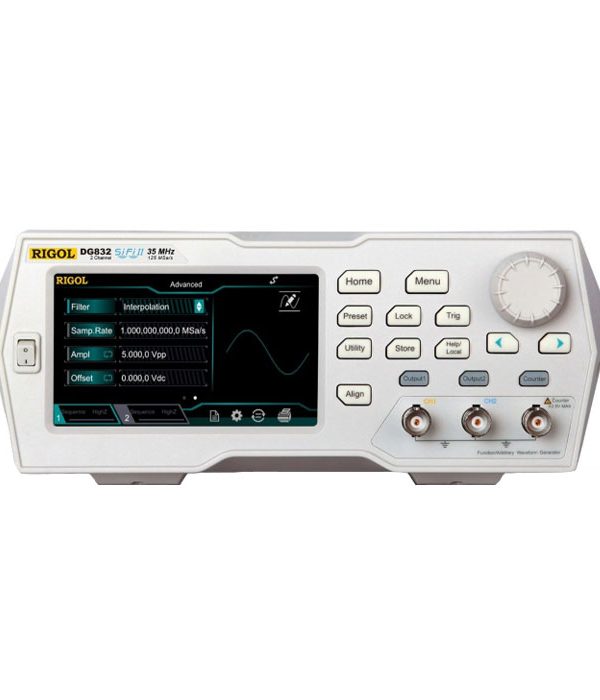

Rigol DG832 35MHz Arbitrary Waveform Generator with SiFi II Technology

The Rigol DG832 35MHz Waveform Generator is a 35 MHz 2-channel function generator with a maximum sample rate of 125 MSa/s. The Rigol DG800 series offers user-friendly and powerful function/arbitrary wave generators at a very attractive price. Each tool offers different features including Function Generator, Arbitrary Waveform Generator, Noise Source, Pulse Generator, Harmonic Generator, Analog/Digital Modulator, and Frequency Counter.

Any Rigol DG800 Series Function/Arbitrary Waveform Generator would be a great addition to any home, professional, or educational lab. For a safe buying experience of the DG832 35MHz Waveform Generator at the lowest price, visit the MME website.

Rigol DG832  Generator FEATURES

• Exclusive SiFiII (Signal Fidelity II) technology
• Two fully functional and independent channels (optional upgrade on single-channel models)
• Maximum frequency 35 MHz, Sample rate 125 MSa/s, Vertical resolution 16-bit
• Basic waveforms: sine, square, ramp, pulse, DC, Bi-tone
• Extended waveforms: PRBS, RS232, Sequential
• 160 built-in arbitrary waveforms
• Memory for waveforms up to 8 Mpts (optional) arbitrary, standard 2 Mpts
• Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
• Intuitive arbitrary waveform editing software for PC, Frequency stability ±1ppm
• Phase noise <-105dBc/Hz at 10kHz (f=10MHz), Onboard 7-digit counter up to 240MHz, Onboard 8th harmonic generator, Waveform summing function
• 4.3-inch color TFT LCD touch screen (480 x 272), 16M colors Connectivity… Host and USB device (USB-LAN optional)
• Standard accessories… UK and Europe power cords, BNC Cables (25 (35MHz and 35MHz models only), Quick Start Guide.

Rigol DG832 SPECIFICATIONS

• Channels 2
• Output signals Sinus, Square, Ramp, Pulse, Harmonic, PRBS, Dual-tone, RS232
• Vertical resolution 16 Bits, Sample rate 125 MSa/s, Frequency resolution 1 μHz
• Max. wavelength 2 Mpts
• Amplitude range 1-2.5 Vpp
• Modulation AM, FM, PM, ASK, FSK, PSK, PWM
• Output precision ± (1% + 5 mV)
• Frequency counter bandwidth 240 MHz (7 digits/s)
• Output impedance 50 Ω
• Display 4.3″ TFT LCD touch-screen (480 x 272)
• Interfaces USB Host, USB Device, USB-GPIB
• Weight 1.75 Kg
• Dimensions 237.4x97x268 mm
