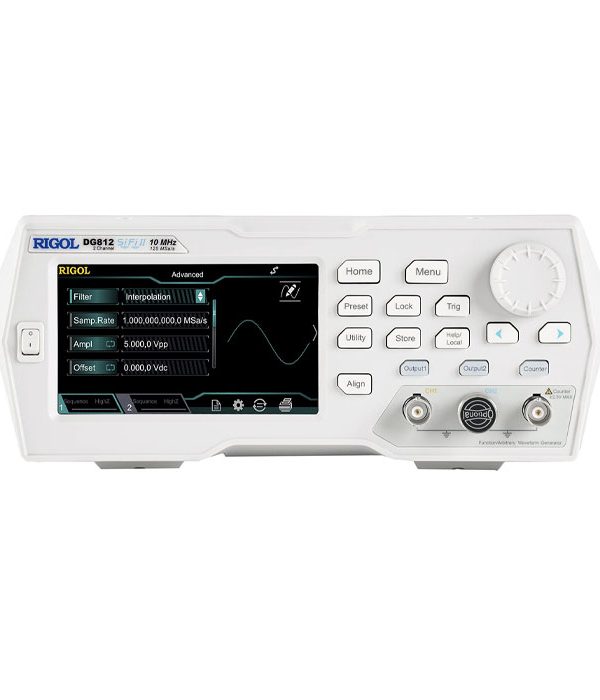

Rigol DG812 10MHz Arbitrary Waveform Generator with SiFi II Technology

The Rigol DG812 10MHz Waveform Generator is a 2-channel 10MHz function generator with a maximum sample rate of 125MSa/s. The Rigol DG800 series offers user-friendly and powerful function/arbitrary wave generators at a very attractive price. Each tool offers different features including Function Generator, Arbitrary Waveform Generator, Noise Source, Pulse Generator, Harmonic Generator, Analog/Digital Modulator, and Frequency Counter.

Any Rigol DG800 Series Function/Arbitrary Waveform Generator would be a valuable addition to any home, professional, or educational lab. To buy DG812 10MHz Waveform Generator with the lowest price and the highest price, refer to our experts.

Rigol DG812 Generator FEATURES

• Two fully functional and independent channels (optional upgrade on single-channel models)
• Maximum frequency 10 MHz, Sample rate 125 MSa/s, Vertical resolution 16 bit
• Basic waveforms: sine, square, ramp, pulse, DC, Bi-tone
• Extended waveforms: PRBS, RS232, Sequential
• 160 built-in arbitrary waveforms
• Memory for waveforms up to 8 Mpts (optional) arbitrary, standard 2 Mpts
• Supported modulation: AM, FM, PM, ASK, FSK, PSK & PWM
• Intuitive arbitrary waveform editing software for PC
• Frequency stability ± 1 ppm, Phase noise <-105 dBc/Hz at 10 kHz (f = 10 MHz)
• Integrated 7-digit counter up to 240 MHz, Integrated 8th harmonic generator

Rigol DG812 SPECIFICATIONS

• Kanalen 2
• Output signalen Sinus, Blok, Ramp, Pulse, Harmonisch, PRBS, Dual-tone, RS232
• Verticale resolutie 16 Bits, Sample rate 125 MSa/s, Frequentie resolutie 1 μHz
• Max. golflengte 2 Mpts, Amplitudebereik 1-10 Vpp
• Modulation AM, FM, PM, ASK, FSK, PSK, PWM
• Output precisie ± (1% + 5 mV)
• Frequentieteller bandwidth 240 MHz (7 digits/s), Output impedance 50 Ω
• Display 4.3″ TFT LCD touch-screen (480 x 272)
• Interfaces USB Host, USB Device, USB-GPIB
• Gewicht 1.75 Kg
• Afmetingen 237.4x97x268 mm
