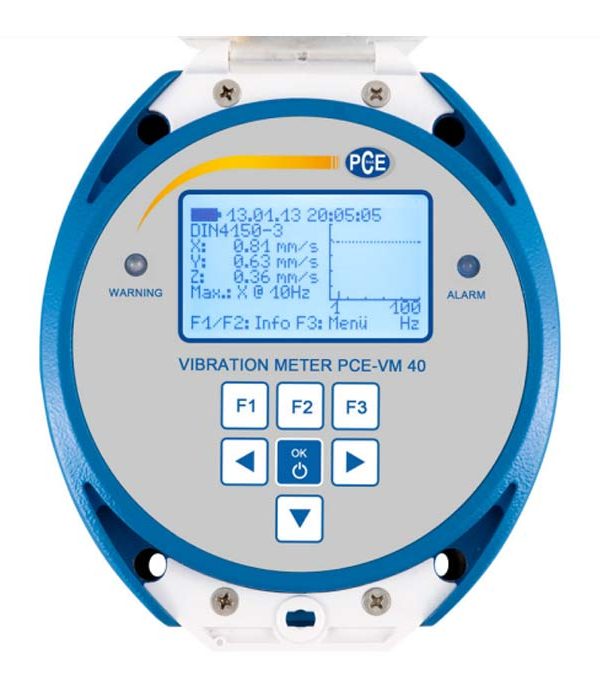

Pce Vm 40C Structural/ Building Vibration Meter

The PCE-VM 40C accelerometer is designed to measure vibration and shock in buildings, bridges, towers, and other man-made structures. The acceleration sensor measures vibrations according to DIN 4150-3, BS 7385, and SN 640312A. With its memory for up to 100,000 readings, the PCE-VM 40C accelerometer can determine the effects of construction sites, traffic, or industrial processing on buildings over a long period of time. B. between recording short and long-duration vibrations.

It is also possible to set thresholds above which an alarm signal will be triggered. With the built-in GSM module (optional), the PCE-VM 40C can send you an SMS notification once the alarm is triggered.

accelerometer and vibration meter pcevm

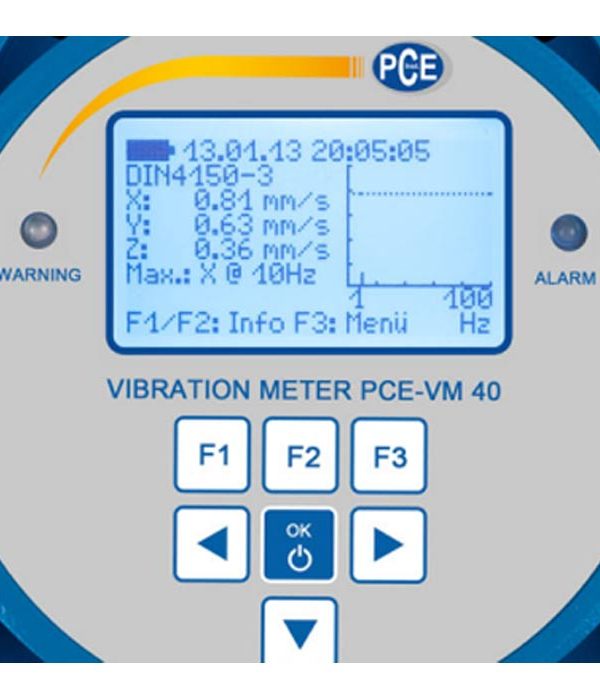

The vibration meter pcevm 40c PCE-VM 40C is very easy to use and can be configured for different applications in no time at all. The measured data can be conveniently viewed on the built-in screen of the device. Here you can see the vibration speed in all 3 directions. The acceleration sensor has an integrated NiMH battery and is therefore suitable for mobile use on-site. A network adapter for stationary use is also included.

Features

•  Triaxial acceleration meter
•  In accordance with BS 7385 standard
•  Integrated NiMH battery
•  FFT analysis, XYZ, and vector sum display
•  SMS alarm notifications via GSM (optional)
•  Internal memory for up to 100,000 readings
•  Mains  / AC adaptor included in delivery
•  Easy to use
•  Threshold function

more information

other pce products are:

PCE-PCO 2 refers to the measurement of partial pressure of carbon dioxide (PCO2) in blood using a transcutaneous carbon dioxide (TcCO2) monitor. It is a non-invasive method used to assess the level of carbon dioxide in the arterial blood.

• PCE-MPC 30, This Particle Counter Device has many functions. With the Particle Counter Device, it is possible to determine the number of particles in the size of 0.3, 2.5, and 10 µm. In addition to measuring the particles, the Particle Counter Device can also measure the PM 2.5 and PM 10 mass concentrations.
• PCE-MPC 25, The air sampler is used in offices, workshops, or laboratories to carry out indicative measurements of the environmental conditions. In addition to the number of particles, the particle counter determines the mass concentration of PM2.5 and PM10 in the measuring range 0 … 1000 µg/m³.
• PCE-MPC 20 is a particle counter that measures the particles in the atmosphere. The measurable particle sizes of the dust measuring device are 0.3, 2.5, and 10 μm. In addition to the particle counter function, the dust meter also measures the mass concentrations of PM2.5 and PM10.
• PCE-WMM 100 is used to measure carbon dioxide and oxygen in a fixed location. The CO2 warning device protects people from the odorless gas CO2 and also warns of low oxygen content in the air.

Accelerometer and Vibration Meter PCE-VM 40C specifications:

• Measuring units Peak value of vibration speed Peak value of vibration acceleration
• Vibration sensor triaxial piezo-electric acceleration sensor
• acceleration 0.001 … 15 m/s²
• Display range (peak) Display range (peak) speed 0.01 … 2,400 mm/s at 1 Hz 0.01 … 30 mm/s at 80 Hz
• SMS alarm function SMS notification when the alarm is triggered SMS contains x/y/z readings, frequency, date, and device name
• Additional GSM functions Phone call with headset (optional VM40-HS adaptor) (optional)
• Memory Built-in micro-SD card
• Analog-digital converter 24-bit, sigma-delta
• USB interface USB 2.0, CDC mode, via VM2x-USB cable
• Battery NiMH, 4.8 V, charging time: 10 h
• No battery power consumption when connected via USB (e.g. to a USB power bank or a USB mains / AC adaptor)
• Battery service life 5 … 15 days, depending on the temperature and duty cycle
• Languages German, English
