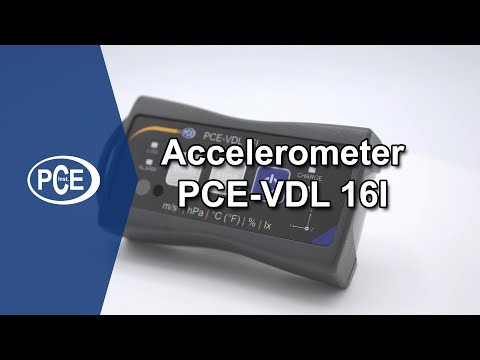

PCE-VDL 16I Condition Monitoring Data logger

The crash data loggers of the PCE-VDL series are available in two versions. The crash data logger PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light, and 3-axis acceleration. the maximum sampling rate of the accelerometer is 800 Hz, the other sensors are sampled at a maximum of 1 Hz.

Therefore, the shock and vibration recorder is ideal for use in troubleshooting, stress testing, machine inspection, shock measurements, and preventive maintenance

PCE VDL 16I Features

• 3-axis Acceleration up to 800 Hz
• For temperature, humidity, air pressure, and light
• 32 GB SD memory card
• Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
• Made in Germany

Shock Data logger PCE-VDL-16I Specifications:

• Temperature Measuring range -20 … 65°C / -4 … 149°F

• Humidity Measuring Range 0 … 100% r.H
• Air pressure Measuring range 10 … 2000 mbar
• Light Measuring range 0.045 … 188,000 Lux
• 3 Axes Acceleration Measuring range ± 16 g
