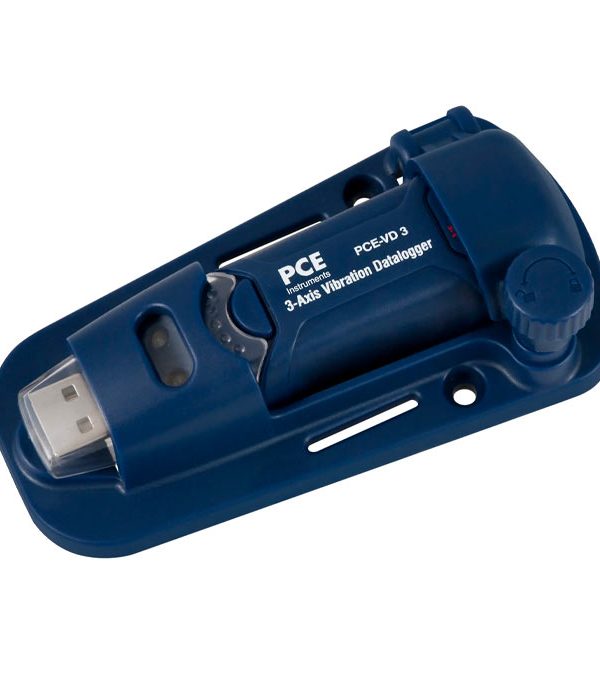

PCE-VD 3 Vibration Data Logger

The PCE-VD 3 is a compact vibration data logger designed for 3-axis shock/vibration measurements via a built-in accelerometer sensor. It’s capable of recording 3-axis acceleration (X, Y, Z) vibration measurement data, useful for Fast Fourier Transform (FFT) waveform analysis. This device is particularly versatile due to its lightweight design and includes a magnetic/wall-mounting bracket for easy placement in various monitoring situations, including shipping, machine operation, and more.

PCE-VD 3 Key Features

Measures 3-axis acceleration/shock
Logs and stores up to 168,042 data records
Adjustable interval from 50 ms … 12 hours
Lightweight design
Connects to PC via USB port
PC software provided for configuration/data transfer
Includes magnetic bracket with wall-mounting screws

PCE-VD 3 Specifications

Measurement range	±16 g
Accuracy	± 0.5 g
Resolution	0.004 g
Frequency range	0 … 60 Hz
Memory	8 Mbit
	normal measuring mode: 168042 records
	motion detection: 112028 records
Measurement rate / Record interval	50 ms … 12 hours
Power supply	1 x 3.6 V, 1/2 AA, 14250, battery
Power consumption	ca. 2.8 mA during a measurement
	<1.5 µA idle
Battery life	ca. 400 hours
Status display	via 2 LEDs (recording in progress / alarm)
Interface	USB
Operating conditions	0 … 40 ºC (32 … 104 ºF), 10 … 75 % RH non-condensing
Storage conditions	-10 … 60 °C (14 … 140 °F), 10 … 90 % RH, non-condensing
Dimensions of device	95 x 28 x 21 mm / 3.7 x 1.1 x 0.8″
Dimensions of wall bracket	106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3″
Weight	25 g / 0.88 oz
