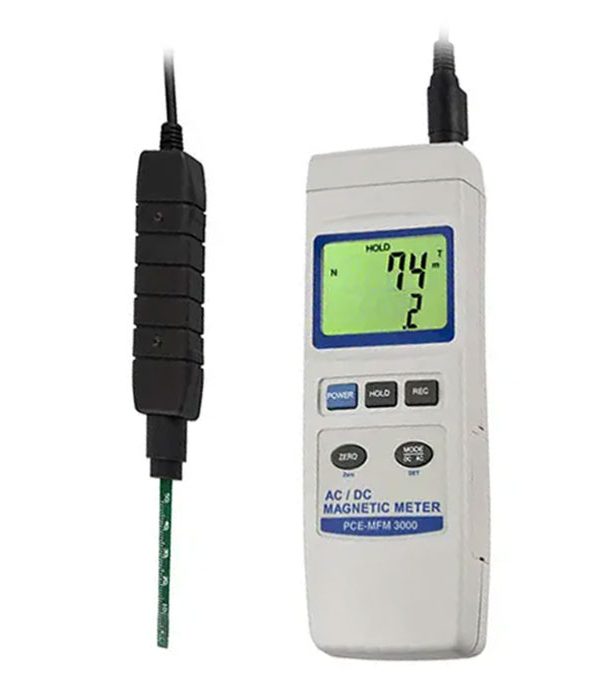

PCE-MFM 3000 Electromagnetic Field (EMF) Meter

In the dynamic landscape of technology, understanding electromagnetic fields (EMF) is paramount for ensuring safety and mitigating potential risks. The PCE-MFM 3000 Electromagnetic Field Meter is an exceptional tool designed to detect static and dynamic magnetic fields. This handheld device brings precision and versatility to the realm of EMF measurement.

Cutting-Edge Technology

At the core of the PCE-MFM 3000 lies cutting-edge technology that distinguishes it from conventional EMF meters. This handheld gauss meter can detect static (DC) permanent magnet magnetic fields and dynamic (AC) electromagnetic fields accurately and reliably. The integration of rare earth permanent magnets enhances its sensitivity and responsiveness.

Versatility in Applications

One of the key features of the PCE-MFM 3000 is its versatility in applications. This EMF meter caters to diverse needs, from assessing static magnetic fields in permanent magnets to measuring dynamic electromagnetic fields in various environments. Its broad functionality makes it an indispensable tool for professionals across different industries, including manufacturing, healthcare, and environmental science.

Advanced Features

The PCE-MFM 3000 boasts advanced features that elevate its performance. The meter stores maximum and minimum values, allowing users to track fluctuations in magnetic fields over time. The Data-Hold function freezes readings for convenient analysis, while the polarity indication ensures users can identify the orientation of magnetic fields with ease.

Real-World Impact

Beyond its technical specifications, the PCE-MFM 3000 has a tangible impact in real-world scenarios. Researchers leverage its capabilities to study and understand the effects of electromagnetic fields on health and the environment. Engineers use it to ensure the proper functioning of magnetic components in machinery. The practical applications of this EMF meter contribute to advancements in various fields, making it an invaluable asset.

Electromagnetic Field (EMF) Meter PCE-MFM 3000 Specifications:

Static (DC) electromagnetic field (EMF) measurements

• Measurement range:
  • Range 1: 0 … 300 mT / 0 … 3000 G
  • Range 2: 0 … 3000 mT /0 … 30000 G
• Resolution:
  • Range 1: 0.01 mT / 0.1 G
  • Range 2: 0.1 mT / 1 G
• Accuracy: ± 5 % + 10 digits
• Measurable frequencies : 50 Hz / 60 Hz

Dynamic (AC) electromagnetic field (EMF) measurements

• Measurement range:
  • Range 1: 0 … 150 mT / 0 … 1500 G
  • Range 2: 0 … 1500 mT /0 … 15000 G
• Resolution:
  • Range 1: 0.01 mT / 0.1 G
  • Range 2: 0.1 mT / 1 G
• Accuracy: ± 5 % + 20 digits

General

• Measurement rate: 1 second
• Measurement direction: uniaxial
• Display: two-line LC display
• Functions: Data hold / Max.- Min.- values
• Operating conditions: 0 … 50 °C / +32 … +122°F / max. 85 % RH
• Power supply: 9 V block battery, optional 9 V mains power adapter
• Input current: ca. 15 mA
• Meter dimensions: 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18″
• Sensor dimensions: 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75″
• Weight 275 g / 0.61 lb
