PCE-LMD 200 Class A Lux Meter
The Lux Meter PCE-LMD 200 is a precision instrument designed for measuring light levels in various environments. Lux meters are commonly used in industries such as agriculture, lighting design, photography, and workplace safety to ensure proper lighting conditions for tasks, plants, or human health.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
AED 8,104 (excl.VAT)

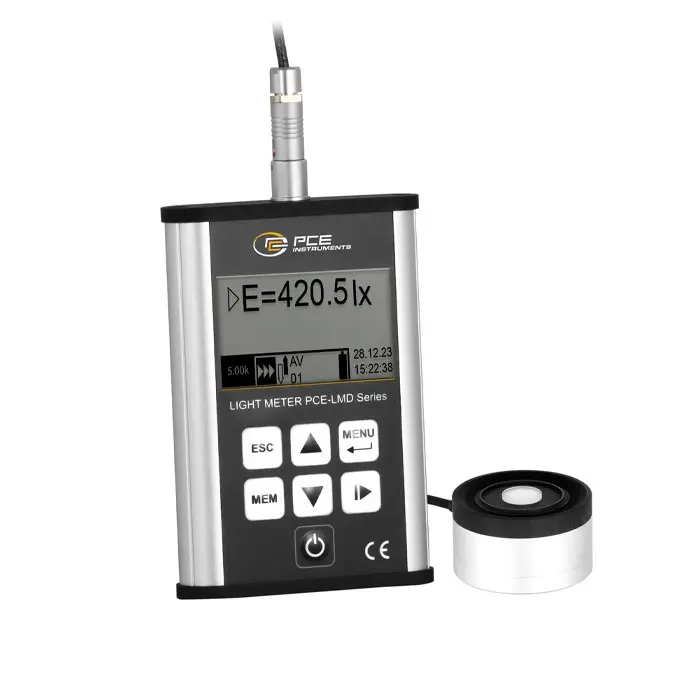

PCE-LMD 200 Class A Lux Meter
The Lux Meter PCE-LMD 200 is a precision instrument designed for measuring light levels in various environments. Lux meters are commonly used in industries such as agriculture, lighting design, photography, and workplace safety to ensure proper lighting conditions for tasks, plants, or human health.
The lux meter is an accurate measurement tool that satisfies the most exacting requirements for light readings. It satisfies DIN 5032-7 accuracy class A criteria, allowing for accurate and dependable light intensity sensing. The lux meter is quite adaptable, with an astonishing measuring range of 0.000 lux to 500,000 lux.
The PCE-LMD 200’s probe holder and external sensor enable measurements to be performed in difficult-to-reach areas and provide maximum practicality in a range of application settings. The integrated measured value memory is another characteristic of the luxmeter. Measurement findings can be immediately recorded and conveniently saved with this tool. This is especially helpful when the measured values will be used in further studies. The data is recorded in a text document created by the lux meter.
PCE-LMD 200 Key Features
- Precision according to DIN 5032-7
- Large measuring range: 0.000 lx … 500 klux
- Accuracy class: A
- External sensor
- 8 GB measured value memory
- Battery operation
PCE-LMD 200 Specifications
Light | |
Measurement range | 0 lx … +50 lx |
Resolution | 0.001 lx |
Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 … 40 °C |
Light | |
Measurement range | +50 lx … +5 klx |
Resolution | 0.1 lx |
Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 … 40 °C |
Light | |
Measurement range | +5 klx … +500 klx |
Resolution | 0.01 klx |
accuracy | total error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 … 40 °C |
General technical data | |
Units | lx, klx |
Display type | LCD |
Display refresh rate | 1 x per second |
Storage medium | Micro-SD card |
Memory interval of | 1 s |
Memory interval up to | 60 s |
Memory capacity | 8 GB |
Interface | Micro-USB |
Standard(s) | DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665 |
Operating time | 23 h |
Measurement rate | 1 Hz |
Classification | A (CIE, DIN 5032-7) |
Menu language | English, Polish |
Protection class (appliance) | IP20 |
Power supply | 5V DC / max. 2,1A |
Weight | 172 g |
Device weight with delivery | 1.67 kg |
Equipment weight with scope of delivery and outer packaging | 1,71 kg |
Dimensions (L x W x H) | 118 x 74 x 21 mm |
Other dimensions | Probe dimensions: Ø 44 x 25 mm . Extension rod: approx. 1 metre |
Operating conditions | -20 … 50 °C , 90 % r.H. |
storage conditions | -20 … 50 °C , 90 % RH |
