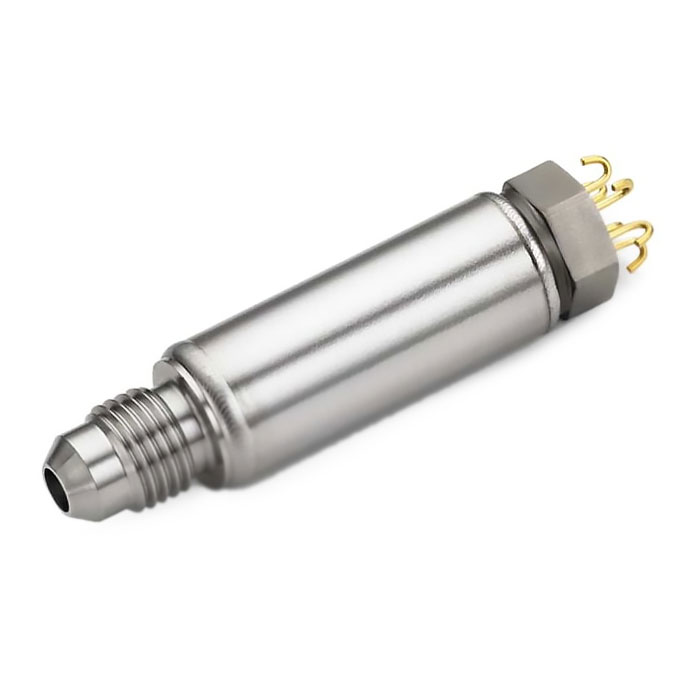

Rosemount Paine™ 310-38-0050 Pressure Transducer

A high-precision, robust pressure sensor created for use in a range of industrial applications is the PaineTM 310-38-0050 Pressure Transducer. The sensor has a small footprint, superb accuracy, and several pressure measuring options.

The PaineTM 310-38-0050 Pressure Transducer’s salient characteristics and advantages

High precision:

With a total error band of less than 0.1% of full scale, the PaineTM 310-38-0050 Pressure Transducer offers outstanding precision. As a result, pressure readings may be trusted to be precise and trustworthy in several industrial applications.

Wide Range of Pressure Measurement:

The sensor is appropriate for use in a variety of industrial applications since it can detect pressures in the 0-5 PSI to 0-15,000 PSI range.

Rugged Design:

The sensor can function in temperatures ranging from -40°C to 121°C (-40°F to 250°F) and is made to endure tough industrial settings.

Compact Size:

The sensor’s small size and ease of installation in confined locations make it a great option for a range of industrial applications.

The PaineTM 310-38-0050 Pressure Transducer has a variety of uses.

There are several industrial applications that the PaineTM 310-38-0050 Pressure Transducer is appropriate for, including:

Aerospace:

In aviation and aerospace applications, the sensor can be used to gauge fuel and hydraulic pressure.

Oil and Gas:

The sensor is perfect for applications involving the oil and gas industry. These applications include the measurement of pressure in pipelines, wellheads, and production machinery.

Industrial Automation:

The sensor may be used to detect pressure in hydraulic and pneumatic systems in industrial automation applications. The sensor may be utilized in medical devices like ventilators and infusion pumps where it can assess fluid system pressure.

The PaineTM 310-38-0050 Pressure Transducer: Installation and Upkeep

For the PaineTM 310-38-0050 Pressure Transducer to operate accurately and dependably, proper installation and maintenance are crucial. The sensor should be installed and maintained using the critical methods listed below:

1. Install the Sensor: Install the sensor in a spot where it can precisely gauge the pressure. For correct installation, adhere to the manufacturer’s instructions.
2. Connect the Sensor: Using the proper wire connections, connect the sensor to your control system. For appropriate wiring, according to the manufacturer’s recommendations.
3. The sensor should be calibrated to guarantee accurate pressure readings. For accurate calibration, stick to the manufacturer’s recommendations.
4. Keep the sensor working: To guarantee optimal operation, examine and clean the sensor often. For appropriate maintenance, according to the manufacturer’s guidelines.

A high-precision, robust pressure sensor, the PaineTM 310 38 0050 Pressure Transducer is perfect for usage in a range of industrial applications. It is the perfect option for applications in aircraft, oil and gas, industrial automation, and medical equipment thanks to its exceptional accuracy, broad range of pressure measuring capabilities, and small form. Users may make sure that the sensor produces accurate and consistent pressure measurements—which are crucial for sustaining safe and effective industrial operations—by following suitable installation and maintenance practices.

Paine™ 310-38-0050 Pressure Transducer Specifications :

Measurement Range

Up to 25000 psia (1723 bar)

Operating Temperature

-40°F to 425°F (-40°C to 218°C)

Process Media

Compatible with alloy UNS NO7718 solution annealed and aged to a minimum hardness of 40HRC Inconel® 718

Pressure Port/Fitting

Per MS33656-E3 using annealed Inconel 600 replaceable seal
