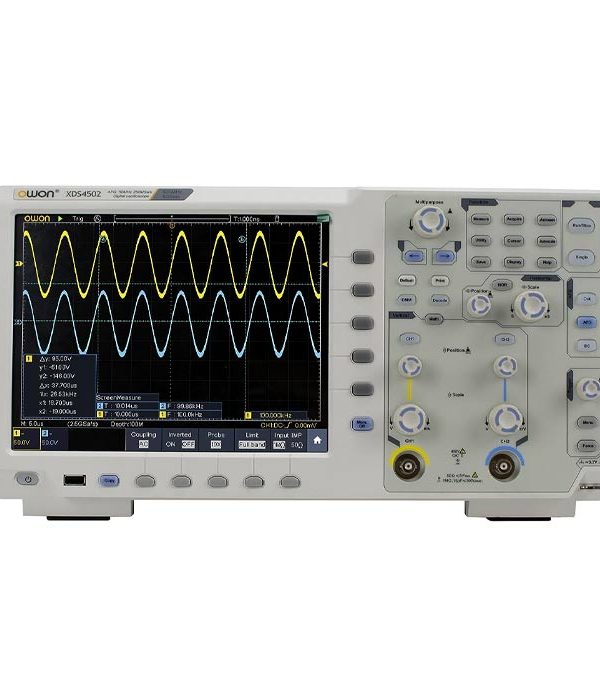

OWON XDS4502 350MHz-500MHz Digital Oscilloscope
The OWON XDS4502 350MHz-500MHz Digital Oscilloscope heralds a new chapter in electronic discovery. As engineers and enthusiasts navigate the intricate world of waveforms and signals, the XDS4502 stands as a steadfast ally, facilitating precision, innovation, and clarity. With a dynamic array of functions, a user-friendly interface, and a commitment to excellence, the XDS4502 leaves an indelible mark on the landscape of electronic analysis.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
OWON XDS4502 350MHz-500MHz Digital Oscilloscope
Are you in the market for an oscilloscope that delivers exceptional performance and boasts unique features? Look no further than the OWON XDS4502 oscilloscope! Whether you’re a professional or an enthusiast, this game-changing device is a must-have for anyone looking to take their electronic analysis to the next level. Don’t wait – get yours today at mme.ae and experience the power and precision of the OWON oscilloscope for yourself!
Crafting Excellence Through Innovation:
Fujian Lilliput Optoelectronics Technology Co., Ltd. introduces the OWON XDS4502, a prime example of technological advancement. With bandwidths ranging from 350MHz to 500MHz, this digital oscilloscope belongs to the XDS4000 series, a symphony of versatility. This instrument isn’t just an oscilloscope; it’s a comprehensive toolkit. It amalgamates 7 measurement functions into a single entity: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency counter, protocol analysis, and amplitude-frequency curve analysis. Designed to cater to the most intricate electronic challenges, the XDS4502 boasts an oscilloscope bandwidth of 350MHz or 500MHz, a sample rate of 5 GSa/s, and a standard 400MB memory depth.
Seamless Navigation and Comprehensive Insights:
What sets the OWON XDS4502 apart is its ability to embrace complexity with grace. A rapid refresh rate of 600,000 waveforms per second ensures the capture of both elusive and commonplace events. It transcends mere waveform analysis, incorporating advanced function calculation capabilities and a 50M single-channel arbitrary waveform generator. Engineers aren’t just observing; they’re actively generating waveforms for comprehensive circuit analysis. The instrument’s waveform cloning capability expedites waveform generation, and a plethora of triggers and bus decodes enrich the analysis experience.
Pioneering Precision:
The OWON XDS4502 series reaches beyond expectations. An optional multimeter and multimeter data logger function opens doors to a world of precise measurements. A standard Bode plot for loop test analysis adds another dimension of insight. The XDS4502 embraces a multi-interface design, featuring USB Host & Device, LAN, VGA, and more, all presented through an intuitive 10.4-inch multi-touch screen. Diverse models within the XDS4000 series, including XDS4352, XDS4504, and others, offer distinct bandwidths and channel configurations, catering to diverse measurement needs. This digital oscilloscope is a testament to OWON’s commitment to engineering excellence, ushering in a new era of electronic exploration.
OWON XDS4502 350MHz-500MHz Digital Oscilloscope Specifications:
- Bandwidth: 350MHz
- Sample Rate: 5GS/s
- Horizontal Scale (s/div): 500ps/div – 1000s/div, step by 1 – 2 – 5
- Channel: 4
- Display: 10.4 inch LCD touch screen
- Record length: 400M
- Waveform Refresh Rate: 600,000 wfms/s
- Vertical Sensitivit: 1MΩ :1mV/div~ 10V/div;50Ω : 1mV/div ~ 1V/div
- Vertical Resolution (A/D): 8bits
- Input impedance: 1MΩ±2%,in parallel with 15pF±5pF;50Ω ± 2%
- Input coupling: DC, AC, Ground
- Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN
- Decoding Type (optional): RS232, I2C, SPI, CAN
- Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, FRR、FRF、FFR、FFF、LRR、LRF、LFR、LFF、Phase A→B, Phase A→B, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area, and Cycle Area.
- Waveform math: +, -, *, / ,FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
- Waveform storage: 100 waveforms
- Communication interface: USB Host, USB Device; Trig Out(Pass/Fail); LAN port; VGA port; EXT Trig In
- Printer compatibility: PictBridge
- Dimension: 422 mm (W)×226 mm (H)×135 mm (D)
- Weight: Approx. 5 kg (without accessories)
Arb Waveform Generator Specifications:
- Max Frequency Output: 50MHz
- Sample Rate: 250MS/s
- Channel: 1 channel
- Vertical Resolution: 14bits
- Amplitude Range: 2mVpp – 5Vpp(≦50MHz); 2mVpp – 20Vpp(≦25MHz)
- Waveform Length: 16K
- Output Waveforms: Sine, Square, Pulse, Ramp, Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, Noise,and others, total 64 built-in waveforms, and user-defined arbitrary waveform
Multimeter Specifications (optional):
- Full Scale Reading: 4½ digits
- Auto Range
- Measure: Voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continuity, Diode test
