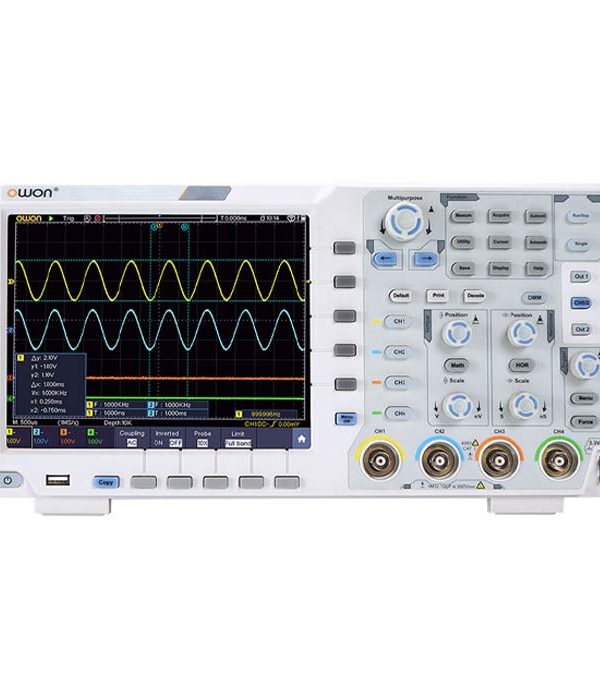

OWON XDS3104 4CH 8/14bit Touchscreen Digital Oscilloscope

As our journey through the capabilities of the OWON XDS3104 draws to a close, we are left in awe of its potential to revolutionize the way we interact with electronic signals. With an unwavering commitment to precision, an array of advanced features, and an interface that is as intuitive as it is functional, the XDS3104 paves the way for a new era of signal analysis. From engineering laboratories to educational institutions, from research facilities to hobbyist workbenches, this oscilloscope has the power to elevate our understanding of electronic signals and empower us to venture into uncharted territories of technology. Step into the future with the XDS3104 and embark on a journey of discovery and innovation that knows no bounds.

SKU:65397

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

Compare
18People watching this product now!

OWON XDS3104 4CH 8/14bit Touchscreen Digital Oscilloscope

The OWON XDS3104 4CH 8/14bit Touchscreen Digital Oscilloscope is a powerful and innovative tool that allows for precise signal analysis and measurement. With its advanced capabilities, it is sure to revolutionize the way we understand electronics. As you explore the mme.ae website, you will discover the amazing features of this cutting-edge oscilloscope and embark on an exciting journey through the intricate pathways of electronic signals. Trust me, you won’t be disappointed with this incredible device!

A Symphony of Precision and Functionality

The OWON XDS3104 represents a fusion of precision engineering and advanced functionality. Offering both 8-bit and 14-bit ADC options, it captures the essence of signals with unparalleled accuracy. With a bandwidth ranging from 60MHz to 200MHz, this oscilloscope unlocks the world of high-frequency signal exploration. Its 1GS/s sample rate ensures that no waveform detail goes unnoticed, making it an invaluable tool for engineers, researchers, and enthusiasts alike.

Empowering User Experience Through Touch

The OWON XDS3104 boasts an impressive intuitive touchscreen interface. Its 8-inch high-resolution LCD with multi-touch capability enhances the user experience, making tasks such as navigating settings, capturing waveforms, and conducting measurements effortless. This allows users to focus on uncovering the complexities of their signals.

Versatility Beyond Expectations

The OWON XDS3104 oscilloscope is a versatile mobile tester that offers a range of functionalities beyond its traditional scope. This tool integrates signal generation, multimeter, frequency counter, and data logging capabilities, making it an indispensable asset for debugging and signal analysis. Its ability to decode protocols like I2C, SPI, RS232, and CAN, further enhances its utility. The oscilloscope’s high waveform refresh rates and Wi-Fi compatibility enable real-time signal exploration, adding to its already impressive features.

OWON XDS3104 4CH 8/14bit Touchscreen Digital Oscilloscope Specifications:

  • Bandwidth: 100MHz
  • Sample Rate: 1GS/s (500MS/s for each channel)
  • Vertical Resolution (A/D): 8 bits
  • Record length: 40M
  • Waveform Refresh Rate: 70,000 wfms/s
  • Horizontal Scale (s/div): 1ns/div – 1000s/div, step by 1 – 2 – 5
  • Channel: 4
  • Display: 8″ color LCD, 800 x 600 pixels display
  • Sample Rate / Relay Time Accuracy: ±2.5 ppm
  • Input Coupling: DC, AC, GND
  • Vertical Sensitivity: 1mV/div – 10V/div (at input)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
  • Bus Decoding(optional): I2C, SPI, RS232, CAN
  • Trigger Mode: Auto, Normal, and Single
  • Vertical Range: ±2V(1mV/div~50mV/div)；±20V(100mV/div~1V/div)；±200V(2V/div~10V/div)
  • Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
  • Frequency Counter: available
  • Power Supply: 100V – 240V AC, 50/60Hz, CAT II
  • Fuse: 2A, T class, 250V
  • Battery (optional): 3.7V, 13200mA
  • Dimension (W x H x D): 340mmx177mmx90mm
  • Optional Module / Function:
  • VGA: VGA+AV port
  • WIF: Wifi
  • DMM: digital multimeter
  • MTS: Touch screen(capacitor-type)
  • Optional Decoding Kit:
  • RS232
  • SPI
  • I2C
  • CAN
  • Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “OWON XDS3104 4CH 8/14bit Touchscreen Digital Oscilloscope”

Brand

Owon

OWON

"OWON" is a distinguished brand that has made significant strides in the field of electronic test and measurement equipment. With a commitment to innovation, precision, and user-friendly design, OWON has established itself as a trusted name among professionals, researchers, and enthusiasts seeking top-quality tools for accurate measurements and data analysis.

The brand's journey began with a focus on oscilloscopes, and over the years, OWON has expanded its product range to encompass a diverse array of electronic testing equipment. From digital oscilloscopes and waveform generators to multimeters, power supplies, and spectrum analyzers, OWON's offerings cater to a wide spectrum of industries, including electronics, telecommunications, education, and research. In conclusion, OWON is a name associated with quality, innovation, and affordability in the field of electronic test and measurement equipment. OWON equips experts and hobbyists to succeed in their respective industries with a wide variety of instruments that are made for precision, usability, and connectivity.

Read more

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

400mA: ±(2%±1digit), 40mA: ±(1.5%±3digit), 4A, 10A: ±(3%±3digit)

DC Current(Range/Resolution/Accuracy)

40mA, 400mA: ±(1.5%±1 digit), 4A, 10A: ±(3%±3digit)

DC Voltage(Range/Resolution/Accuracy)

400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit)

Resistance(Range/Resolution/Accuracy)

400Ω: ±(1%±3digit), 40MΩ: ±(1.5%±3digit), 4KΩ~4MΩ: ±(1%±1digit)

Capacitance(range/resolution/accuracy)

51.2nF – 100uF: ±(3%±3 digits)

Frequency (Range/Resolution/Accuracy)

40Hz – 400Hz

Oscilloscopes
Bandwidth

100MHz

Channels

4

Max Input Voltage

400 V (DC + AC Peak)

Sample rate

1GS/s (500MS/s for each channel)

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Vertical Resolution

8bits

Vertical Sensitivity

1mV/div – 10V/div (at input)

Mechanical and General Specifications
Dimensions

340 mm × 177 mm ×90 mm (L*H*W)

Weight

Approx. 2.6 kg (without accessories)

Power

100V – 240 VACRMS, 50/60 Hz, CAT â…¡

Accessories

Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
