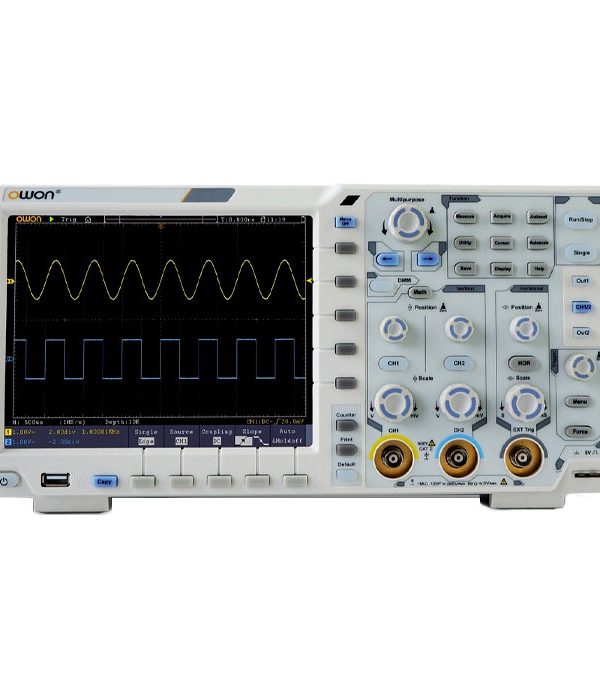

OWON XDS3102 N-In-1 Digital Oscilloscope

The OWON XDS3102 N-In-1 Digital Oscilloscope is a must-have for any serious electronics professional. With its advanced features and versatility, this instrument is sure to make testing and measurement tasks easier and more accurate than ever before. As you explore the mme.ae website, you’ll see why this device is quickly becoming the go-to tool for engineers and technicians alike. Don’t miss out on the opportunity to upgrade your testing capabilities with the OWON XDS3102 N-In-1 Digital Oscilloscope.

Exploring Cutting-Edge Features

The OWON XDS3102 is not just your average oscilloscope. It features an impressive 8-inch TFT LCD panel with a resolution of 800×600, providing a crystal-clear waveform display and user-friendly interaction. What makes this model stand out, even more, is its multitouch support, available from XDS3102A onwards, which takes your experience to the next level.

The OWON XDS3102 is versatile and caters to various needs. It has up to 14-bit vertical resolution, bandwidth ranging from 60 to 300 MHz, and sample rates of 1 to 2 GSa/s, thus adapting to different testing scenarios. With a memory depth of 40 MSa/channel, it accurately captures data even in complex applications.

The XDS3102 is not confined to traditional oscilloscope functions. It transforms into a versatile testing tool, operating as a data logger, multimeter, and waveform generator. This convergence of functionalities streamlines the testing process, saving both time and resources for professionals.

Seamless Connectivity and User-Friendly Design

The OWON XDS3102 offers seamless connectivity through USB, VGA, and LAN interfaces, allowing for remote operation and data transfer. Its cursor measurements, auto measurements, and optional serial bus decoder further enhance its capabilities. This oscilloscope is a true embodiment of user-centric design, catering to the evolving needs of modern electronics professionals.

OWON XDS3102 N-In-1 Digital Oscilloscope Specifications:

• Bandwidth: 100MHz
• Sample Rate: 1GS/s
• Vertical Resolution (A/D): 8 bits
• Record length: 40M
• Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
• Channel: 2 + 1 (external)
• Display: 8″ color LCD, 800 x 600 pixels
• Waveform Math:  ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject)
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
• Bus Decoding: I2C, SPI, RS232, and CAN (optional)
• Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
• Power Supply: 100V – 240V AC, 50/60Hz, CAT II
• Power Consumption: ＜24W
• Fuse: 2A, T class, 250V
• Battery (optional): 3.7V, 13200mAh
• Dimension (W x H x D): 340 x 177 x 90 mm
• Weight: 2.60 kg±200g

Optional Module / Function:

• VGA: VGA+AV
• WIFI
• AWG: arb waveform generator
• DMM: digital multimeter
• TOU: Touch screen(capacitor-type)

Optional Decoding Kit:

• RS232
• SPI
• I2C
• CAN: CAN decoding
