OWON ODP3032 Programmable DC Power Supply
The OWON ODP 3032 Programmable DC Power Supply is a versatile and feature-rich power supply designed to meet diverse electronic test and inspection needs. With advanced programmability and customizable settings, the ODP3032 provides accurate and reliable DC power output for a wide range of applications.
MME Shopping Event
Hurry and get discounts on Most of MME Products up to 20%
Call for Price
17People watching this product now!

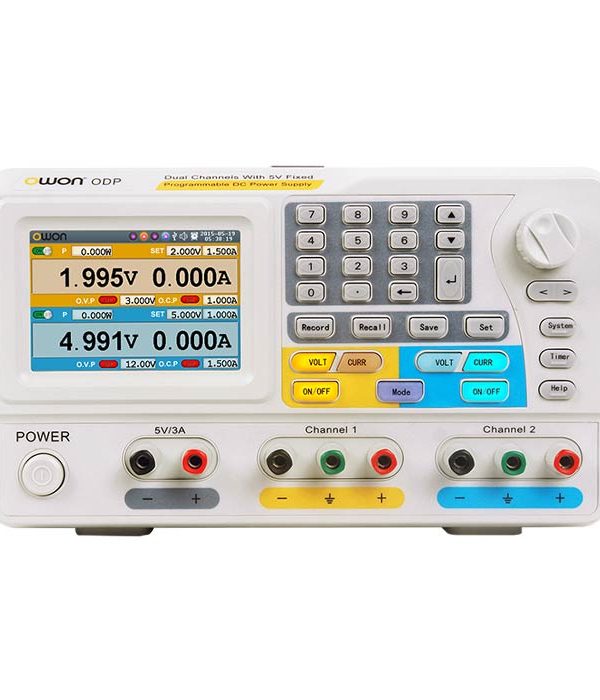

OWON ODP3032 Programmable DC Power Supply
The OWON ODP3032 DC Power Supply is a versatile and feature-rich power supply designed to meet diverse electronic test and inspection needs. With advanced programmability and customizable settings, the ODP3032 provides accurate and reliable DC power output for a wide range of applications.
The ODP3032’s programmability is one of its most important characteristics. Through its user-friendly interface, users can simply set and regulate a variety of parameters, including voltage, current, power, and timing. Users may automate and repeat complex test sequences thanks to the ability to write and save specific voltage and current profiles, increasing their productivity and efficiency.
At MMElectronics, we strive to provide exceptional customer service. Our expert team is ready to assist you in selecting the right power supply for your application. Additionally, you can compare owon power supply with other products on our site based on price, features, specifications, and…
OWON ODP3032 Features
- ODP3032: two independent controllable channels
- Output resolution: 1mV / 1mA
- Low ripples / low noise: <300 μVrms / 2 mVpp
- Up to 100 group timers
- Up to 10 group preset system configurations
- Over-voltage / Over-current protection
- Auto-cooling system
- 3.9-inch high resolution (480 × 320 pixels) TFT LCD display
- Multiple communication interfaces: USB, and RS232
OWON ODP3032 2ch output with 5v fixed programmable dc power supply Specifications
| Output Power | 195W | ||
| Channel | 2 (independent) | Fixed 5V | |
| DC Output Rating | Voltage | 0- 30V (Independent / Parallel) | 5V |
| 0 – 60V (Series) | |||
| -30V – 30V (Plus-minus) | |||
| Current | 0 – 3A (Independent / Series / Plus-minus), | 3A | |
| 0 – 6A (Parallel) | |||
| Line Regulation | CV | ≤0.01%+3mV | ≤3mV |
| CC | ≤0.1%+3mA | / | |
| Load Regulation | CV | ≤0.01%+3mV | ≤0.1% + 3mV |
| CC | ≤0.2%+3mA | / | |
| Noise and Ripple | CV | ≤300μVrms/2mVpp | |
| (20Hz～7MHz) | CC | ≤3mArms | / |
| Settings Resolution | Voltage | 1mV | / |
| Current | 1mA | / | |
| Settings Accuracy | Voltage | ≤0.05%+3mV | / |
| (25℃±5℃) | Current | ≤0.1%+3mA | / |
| Read Back Resolution | Voltage | 1mV (＜10V), 10mV (≥10V) | / |
| Current | 1mA | / | |
| Read Back | Voltage | ≤0.05%+3 digit | / |
| Accuracy | |||
| (25℃±5℃) | Current | ≤0.1%+3 digit | / |
| Communication Interface | USB Host, USB Device and RS232 | ||
| Â Display Type | 3.9-inch colored LCD | ||
|  Display Resolution | 480 × 320 pixels | ||
| Â Display Color | 65536 colors | ||
|  Dimension (W×H×D) |  250 × 158 × 358 (mm) | ||
| Â Device Weight | Â Â 10.50 kg | ||
Related Products
The Owon SPE6103 is an electronic load designed to complement the Owon ODP3032 power supply. It enables comprehensive power testing by simulating different load conditions and measuring voltage, current, power, and resistance. The SPE6103 offers high precision, real-time monitoring, and protection features for reliable power testing and analysis.
