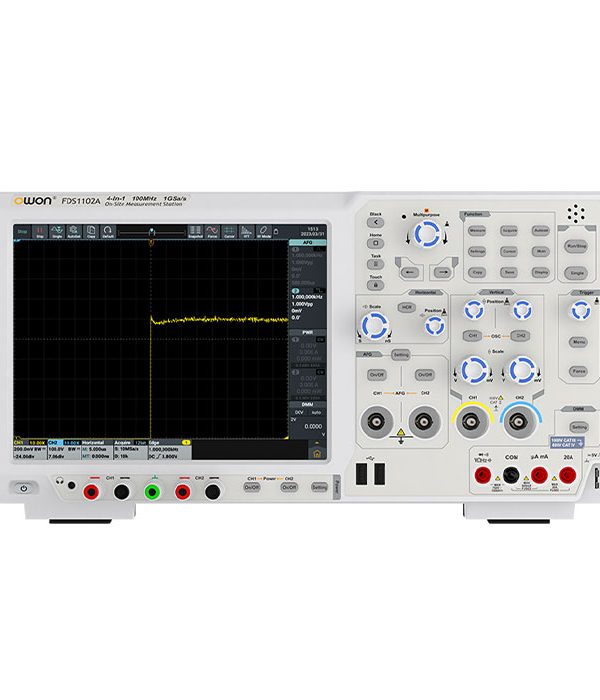

OWON FDS1102A Multifunction DSO
The world of electronics can be challenging, and we understand the importance of precision in innovation. That’s why we want to showcase the OWON FDS1102A from the FDS1000 series Multifunction DSO, which you can find on the mme.ae website. This exceptional device is a testament to the dedication to excellence in electronic measurement. We invite you on a journey to explore its amazing capabilities and the versatility it offers.
Revolutionizing Precision Measurement:
The OWON FDS1000 series, an ingenious creation by Fujian Lilliput Optoelectronics Technology Co.,Ltd, redefines electronic measurement through a 4-in-1 marvel. Combining the prowess of an oscilloscope, arbitrary waveform generator, power supply, and multimeter presents a comprehensive solution for engineers and enthusiasts alike. The OWON FDS1102A, a star within this series, takes precision to new heights with its 14-bit vertical resolution, elevating the accuracy of measurements to unprecedented levels.
Technical Brilliance and Functionality:
The OWON FDS1102A has a bandwidth of 100MHz and can sample at a rate of 1GS/s, making it highly accurate for capturing complex waveforms. It comes with a 10M record length, various vertical sensitivity options, and a broad horizontal scale range, making it a versatile tool for many applications. Engineers can use it for automatic measurements, cursor measurements, waveform math functions, and waveform storage capabilities, all of which provide unparalleled signal analysis precision.
Unveiling a World of Features:
The OWON FDS1102A doesn’t stop at oscilloscope functionalities. Its waveform generator shines with a maximum frequency output of 50MHz and a sample rate of 300MS/s. The 10.4-inch touch LCD display with a resolution of 1024×768 offers intuitive control and visualization. Connectivity options including HDMI, USB device, USB host ports, and LAN facilitate seamless data exchange. Power specifications with adjustable output parameters for voltage and current bring precision even to power supply tasks.
OWON FDS1102A Multifunction DSO Specifications:
Oscilloscope Specifications:
- Bandwidth: 100MHz
- Sample Rate: 1GS/s
- Vertical Resolution (A/D): 14bits
- Channel: 2
- Input impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF
- Input coupling: DC, AC, and GND
- Record length: 10M
- Horizontal Scale (s/div): 2ns/div – 1000s/div, step by1 – 2 – 5
- Max Input Voltage: 1MΩ ≤ 300Vrms;
- Vertical Sensitivity: 1mV/div – 10V/div (at input)
- Cursor Measurement: △V, and △T between cursors, △V and △T between cursors, and auto- cursors
- Automatic Measurement: Period, Frequency, +Pulse Width, -Pulse Width, Rise Time, Fall Time, Screen Duty, +Duty Cycle, -Duty Cycle, PK-PK, RMS, Overshoot, Max, Min, Top, Cycle RMS, Base, Amplitude, Preshoot, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area、Cycle Area, Delay A→B, Delay A→B, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
- Waveform Math: +, -, ×, ÷, FFT, User Defined Function, digital filter
- Waveform Storage: 128MB,100 waveforms
- Bandwidth: full bandwidth
- Phase Difference: ±3 degrees
- Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, LIN and CAN
- Line / Field Frequency (video): NTSC, PAL and SECAM standard
- Trigger Mode: Auto, Normal, and Single
- Interface: HDMI;USB device *1, USB Host *4 ;Trig Out(P/F);LAN;earphone
- Frequency Counter: available
- WIFI (Optional): available
- Display: 10.4 inch(1024×768)touch LCD
Power Specifications:
- Channel: CH1/CH2
- Rated Output(0℃-40℃): Max Voltage 0.1-15V
- Rated Output(0℃-40℃): Max Current 0.1-3A
- Rated Output(0℃-40℃): Max Power 15W
- Setting Resolution: Voltage 10mV
- Setting Resolution: Current 10mA
Multimeter Specification:
- Full-Scale Reading: 4½ digits
- Frequency Response: (40 – 1000) Hz
- Auto Range
- Ture rms
- Measure: voltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continue, Diode test
Waveform Generator Specification:
- Max Frequency Output: 50MHz
- Sample Rate: 300MS/s
- Channel: 2
- Amplitude (HR): 2mVpp – 10Vpp
- Waveform Length: 8K
