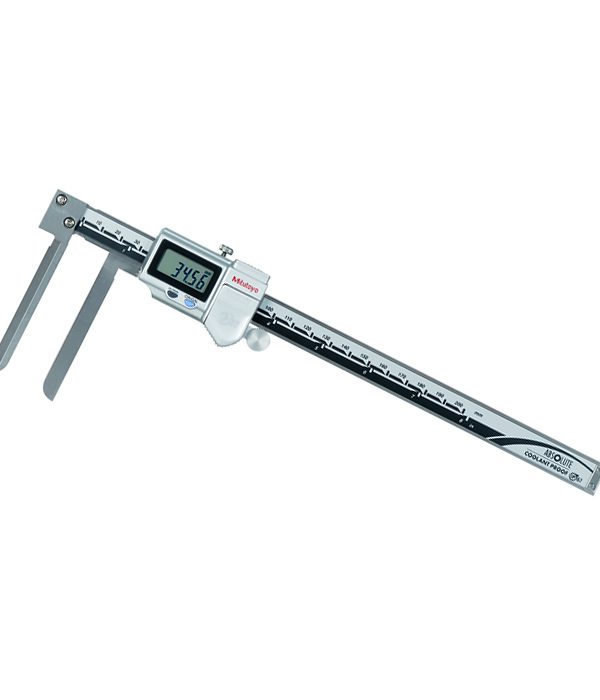

Mitutoyo 573-742-20 Digimatic Inside Caliper

A precision measuring tool called the Mitutoyo 573-742-20 ABSOLUTE Specialised interior Calliper was created to precisely measure interior dimensions that are ordinarily difficult to measure with regular callipers. Its unique qualities make it the perfect tool for a variety of uses in the manufacturing, machining, and engineering sectors.

Numerous Jaw Types

Three distinct jaw types—point-type, knife-edge, and inner groove—are offered for this specialised calliper. The calliper can reach into nooks, bore holes, and grooves for accurate measurements because to its several jaw types, each of which serves a particular function.

Construction made of hardened stainless steel.

Hardened stainless steel was used in the neck caliper’s construction to ensure its sturdiness, lifespan, and resistance to wear and tear. Because of its sturdy design, the Mitutoyo 573-742-20 calliper can survive demanding industrial settings.

Coolant-Proof Capabilities are IP67 Rated.

The IP67-rated Mitutoyo ABSOLUTE Specialised Inside calliper offers superior protection against dust infiltration and brief water immersion. Due to this characteristic, it may be used in settings where cutting oil, dust, and other impurities that are often found on shop floors are present.

Measurements of Step and Depth

A depth bar included into theMitutoyo 573-742-20  calliper allows both step and depth measurements. The variety of uses for this instrument is increased by the ability to precisely measure the depth of holes or recesses.

Models in inches and metres are available.

The calliper comes in both metric and inch/metric variants, giving customers who deal with various measuring systems options. For simple unit conversion, the Inch/Metric versions additionally have a handy inch/mm conversion feature.

Output function for SPC

The SPC output function of the Mitutoyo 573-742-20 ABSOLUTE Specialised Inside Calliper enables fast and simple real-time data handling. Users may use this capability to send measurement data to other computers or devices for further analysis or documentation.

ABSOLUTELY A LINEAR SCALE

Since the calliper uses an ABSOLUTE (ABS) linear scale, there is no need to establish the origin point each time it is turned on. This function speeds up the origin-setting procedure and gets rid of any mistakes. Furthermore, overspeed mistakes are removed, guaranteeing precise and trustworthy results.

Additional Features

To improve use, the Mitutoyo 573-742-20 calliper has a number of extra features, such as Origin Set, Zero Setting, Power for/Off, Data Output, and inch/mm conversion (for inch/metric variants only). Greater control and convenience are offered during measuring procedures by these functionalities.

Warning and Power

The calliper has an alarm mechanism that alerts users to low voltage and irregularities in the composition of counting values. This reduces the possibility of mistakes while ensuring measurements are precise and trustworthy. Battery power is used to power the calliper.

Cases Provided

The fitting plastic box that comes with the majority of variants of the Mitutoyo 573-742-20 ABSOLUTE Specialised Inside calliper makes storing and protection simple. The bigger 18″/450mm and 24″/60mm variants, however, come with a hardwood casing that adds to the instrument’s robustness for storage and transportation.

Simple Maintenance

The IP67 protection and design of the calliper minimise the need for routine scale cleaning or wiping. This feature makes maintenance easier and guarantees that the calliper will continue to function at its best for a long time.

Mitutoyo 573-742-20 Digimatic Inside Caliper specification:

• Technology: Digimatic
• Length Standard: ABSOLUTE electromagnetic induction type linear encoder
• Max Response Speed: Unlimited
• Display: LCD
• Battery: SR44 (1 pc.) 938882
• Battery life: Approx. 5 years under normal use
• IP Rating: IP67
• SPC Output: Yes
• Optional Accessories: 05CZA624, 05CZA625
• Units: Metric/ Inch
• Range: 10.1-200mm / 0.40-8″
• Resolution: 0.0005″
• Accuracy: ±0.0020″
• Weight: 227g
• Measurable minimum hole diameter: Ø0.4″
• Remarks: Knife-edge type
