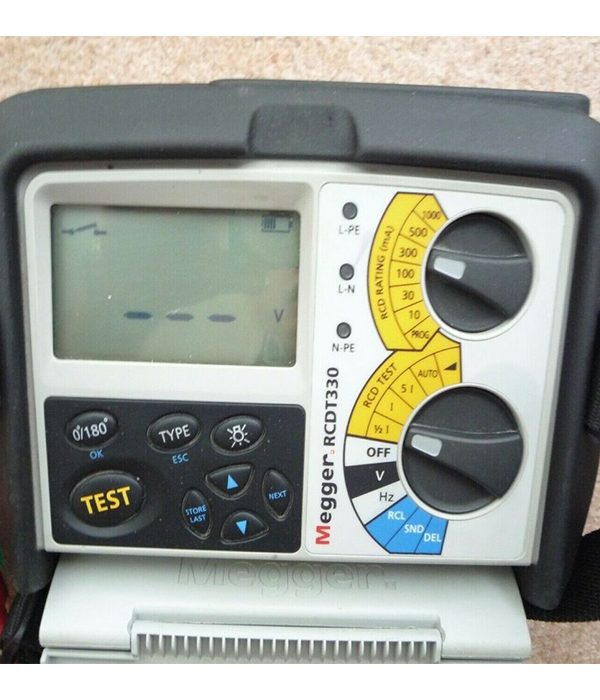

Megger RCDT330-RCD Tester

The Megger RCDT330 tester can perform 1/2I, 1xI, and 5xI tests on RCDs rated at 10 mA, 30 mA, 100 mA, 300 mA, 500 mA & 1000mA on general and selective (time-delayed) & programmable RCD’s. Add this to the fact that you can download via USB up to 1000 test results with the supplied download manager software and you’ve got a RCD tester for every eventuality!

The RCDT330’s Data is stored in non-volatile memory, being retained when the instrument is switched off or batteries are exhausted. A Job reference number (up to 256) can be selected, allowing separate locations to be tested with the RCDT330 and easily separated when downloaded. A memory bar graph acts as a ‘Fuel Gauge’ showing how much memory has been used. Test results are downloaded to CSV (Coma Separated Variable) spreadsheets. The RCD T330 is Meggers’s flagship downloadable RCD tester.

For more information on other models, such as the Megger LT300 , click on the relevant link

Megger RCDT330-RCD Tester specifications

Power Supply

• RCDT330 50 V – 280 V 45 Hz to 65 Hz
• Batteries: 8 x 1,5 V cells IEC LR6 type (AA alkaline)
• Rechargeable: 8 x 1.2 V NiCd or NiMH cells.
• Battery Life: 2000 consecutive tests
• RCD Test Ranges (to EN61557-6)

Test Current Accuracy

• No Trip Test: (1/2I) –8% to –2%
• Trip Test: (I, 5I) +2% to +8%
• Trip Time: ±1% ±1ms

Voltage measurement – (RCDT330, RCDT320 & RCDT310)

• Range ac: 0V – 300V 25Hz to 450Hz
• Accuracy: ±2% ±2 digits

Frequency measurement – (RCDT330 & RCDT320 ONLY)

• Range: 25Hz to 450Hz
• Accuracy: 200Hz to 450Hz ±1Hz
• 25.0Hz to 199.9Hz ±0.1Hz

Fault (Touch) Voltage:

• Displayed range: 0 V to 50 V
• Error: +5%/+15% ±0.5 V
