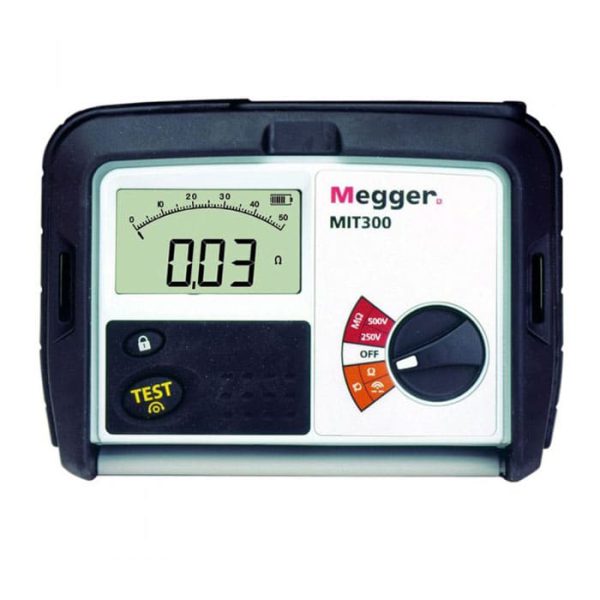

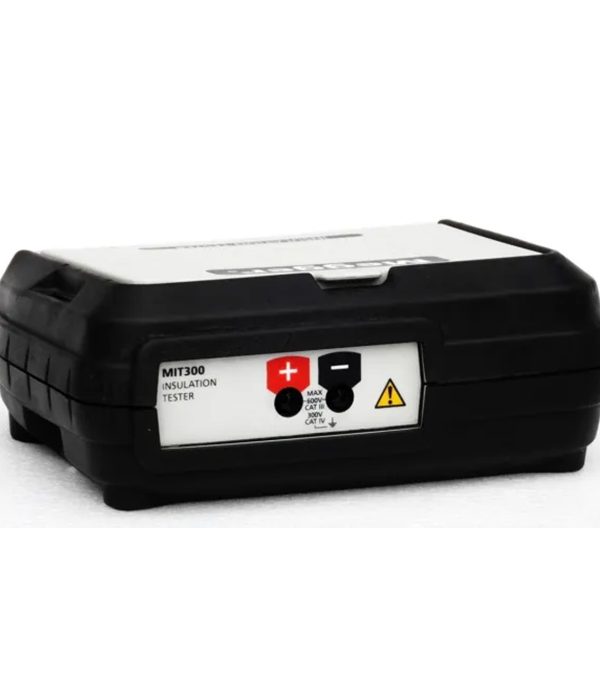

Megger MIT300 Series-INSULATION AND CONTINUITY TESTER

ESCRIPTIONThe Megger MIT300 series features:Digital or Analogue: The Megger MIT300, MIT310 and MIT320 all feature the popular Megger digital/analogue display. Large 20mm high characters provide very clear readout, combined with an analogue arc for the feel of an analogue instrument, with a true analogue response.The Megger MIT310A has a moving coil display for those who prefer a real moving needle. Black decals on a white background give high contrast, even in poor light conditions.

Megger MIT300 Series-INSULATION AND CONTINUITY TESTER Specifications:

• Resistance range :  MIT320/330(can be used for diode testing)Measuring Range: 10 Ω – 1 MΩ
• Open Circuit Voltage: 5 V
• Short Circuit Current:1.5 mA
• Accuracy (at 20° C): ±5% ±2 digits up to 100 kΩ
• Measuring Range (MIT310A) : 0 – 2 kΩ (refer to continuity)
• Voltage range : Measuring Range:0 – 600 V a.c. (50/60 Hz) or d.c.
• Accuracy  : (at 20 °C)MIT310, 320, 330 DC or AC (50/60 Hz): ±1%, ±2 digitsMIT310A±2.5% of scale length for 50/60 Hz
• Temperature coefficient:<0,1% per °C on all ranges.
• Default voltmeter : all modes except offMIT310, 320, 330>25 V a.c. or d.c. is applied display will operate as a voltmeter. MIT300 Beeps and flash ‘V’ on the displayMIT310A All modes including OFF
• Test inhibit:If more than 50 volts is detected, testing will be inhibited
